Bosch Rexroth R900999M12

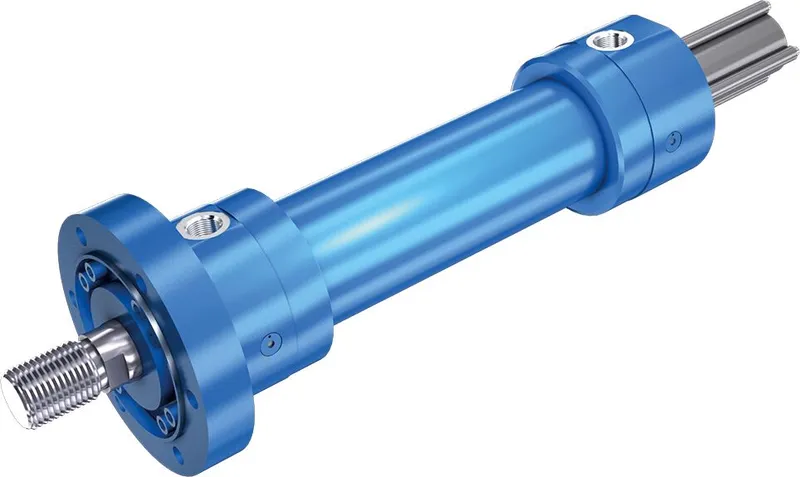

HYDRAULIC CYLINDER CSM1 SERIE 3X KONFIG

MPN: R900999M12
Category: CS - differential cylinder with position measurement system I mill type

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R900999M12?

Hydraulic cylinder in mill type design, configurable online, with piston rod on one side and integrated position measurement system.

Automated provision of configuration-specific dimensional drawing and 3D data.

Available output signals for the position measurement system:

Analog output 4 … 20 mA

Analog output 0 … 10 V

Digital output SSI (resolution 5 µm, asynchronous forward)

Digital output SSI (resolution 1 µm, synchronous forward)

IO-Link

Profinet "RT" & "IRT"

6 types of mounting

Adjustable end position damping

Patented safety vent for easy and safe bleeding

Easy assembly thanks to freely selectable position of the line connections at cylinder head and cylinder base

Service-oriented modular system

Specifications

Product family	CSM1
Operating pressure, max. [bar]	160.0
Hydraulic fluid	HFA; HFC; HFDR; HFDU; HL; HLP
Seals	FKM; NBR
Weight [kg]	5
