Bosch Rexroth R900933478

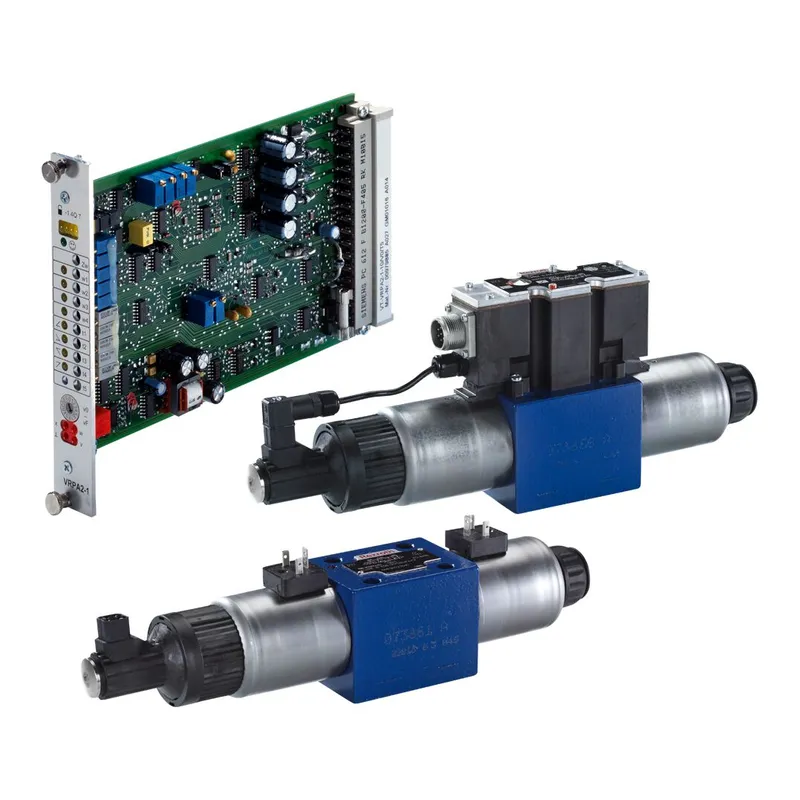

PROPORTIONAL DIRECTIONAL VALVE 4WRE6E08-2X/G24K4/V

MPN: R900933478
Category: Proportional directional valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R900933478?

Industrial hydraulic valve in a high performance range. Reliable control of the direction of the oil flow according to hydraulic symbol. High accuracy thanks to internal piston position feedback

Spool valve

Direct actuated

Specifications

Connection diagram	ISO 4401-03-02-0-05
Product family	4WRE(E)6,10
Operating pressure, max. [bar]	315.0
Max. flow [l/min]	80.0
Spool symbol	Symbol E
Type of connection	Subplate mounting
Nominal flow [l/min]	8.0
Size	6
Type of actuation	Electrical with on-board electronics
Number of ports	4
Number of switching positions	3
Supply voltage	24 VDC
Electrical connector	Connector, 3-pole (2 + PE)
Electrical connection description	Connector, 7-pole (6 + PE) according to EN 175201-804
Hydraulic fluid	HEES; HEPG; HETG; HFDR; HFDU; HL; HLP; HLPD; HVLP; HVLPD
Seals	FKM
Weight [kg]	2.12
