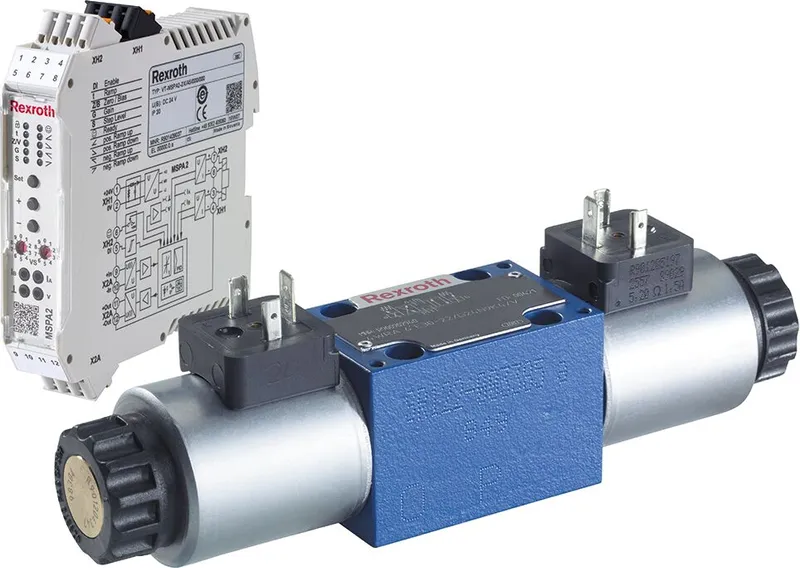

PROPORTIONAL DIRECTIONAL VALVE 4WRAE6WA07-2X/G24K31/F1V
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Proportional directional valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R900783251 be shipped?
R900783251 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R900783251 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R900783251 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R900783251, subject to availability and destination.
Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol.
Spool valve
Direct actuated
Specifications
Specifications
| Connection diagram | ISO 4401-03-02-0-05 |
| Product family | 4WRA |
| Operating pressure, max. [bar] | 315.0 |
| Max. flow [l/min] | 42.0 |
| Spool symbol | Symbol WA |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 7.0 |
| Size | 6 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 2 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
| Connectivity | Analog, command value 0…10 V |
| Conformity description | CE – Electromagnetic compatibility (EMC) directive 2014/30/EU; UKCA – Electromagnetic compatibility (EMC) SI2016/1091 |
| Conformity | CE; UKCA |
| Hydraulic fluid | HEES; HEPG; HETG; HFDR; HFDU; HL; HLP; HLPD; HVLP; HVLPD |
| Seals | FKM |
| Weight [kg] | 1.7 |
More Bosch Rexroth parts
Available on requestDIRECTIONAL SPOOL VALVE 4WE6H6X/EG24N9K4/B08
Available on requestDIRECTIONAL SPOOL VALVE 4WE6D6X/EG12N9K4/V

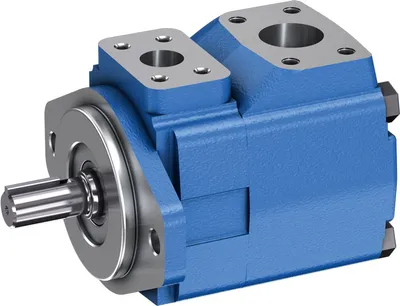

Available on requestVANE PUMP PVQ4-1X/082RJ15DMC
