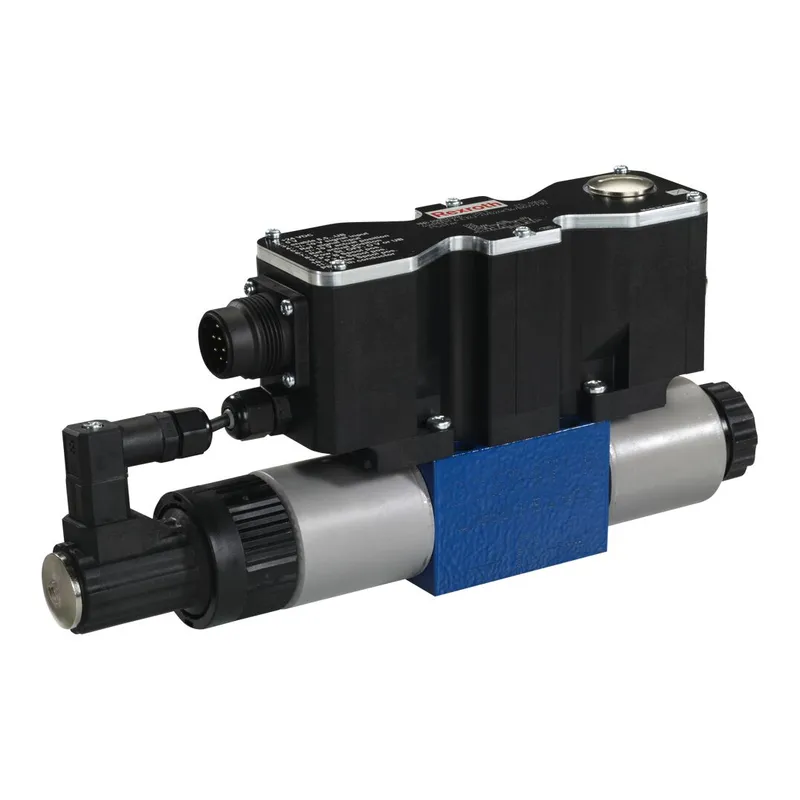

PROPORTIONAL DIRECTIONAL VALVE 4WREEM6E32-2X/G24K34/B6V
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Proportional directional valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R900707192 be shipped?
R900707192 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R900707192 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R900707192 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R900707192, subject to availability and destination.
Industrial hydraulic valve in a high performance range; reliable control of oil flow direction according to hydraulic symbol; high accuracy through internal piston position feedback<br> Spool valve Direct actuated
Specifications
Specifications
| Connection diagram | ISO 4401-03-02-0-05 |
| Product family | 4WREEM |
| Operating pressure, max. [bar] | 315.0 |
| Max. flow [l/min] | 80.0 |
| Spool symbol | Symbol E |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 32.0 |
| Size | 6 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 12-pole (11 + PE) |
| Electrical connection description | Connector, 7-pole (6 + PE) according to EN 175201-804 |
| Connectivity | Analog, command value ±10 V |
| Hydraulic fluid | HL; HLP |
| Seals | FKM |
| Weight [kg] | 2.54 |
