Bosch Rexroth R900247296

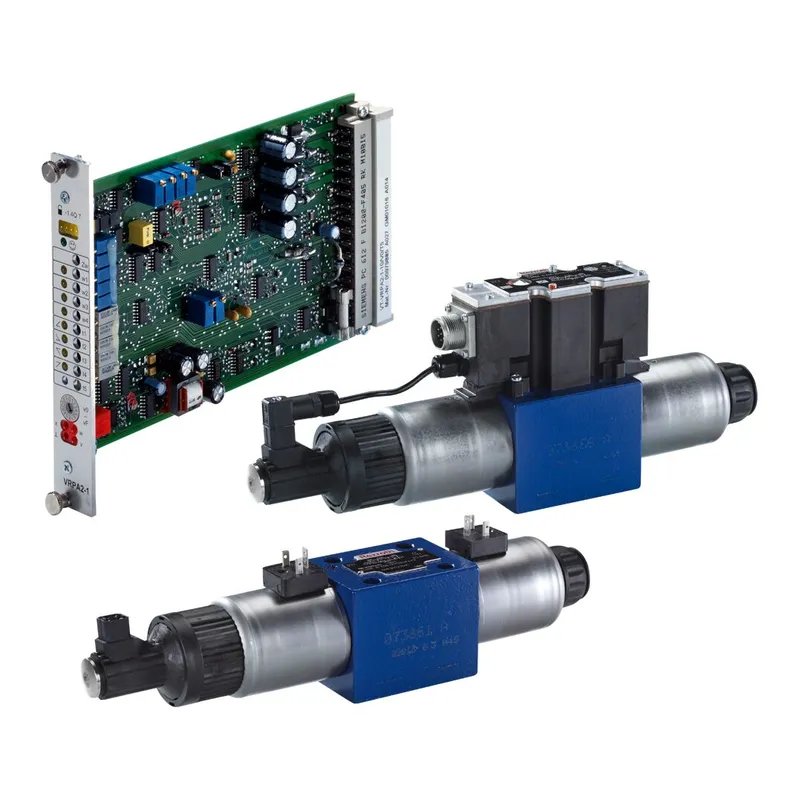

PROPORTIONAL DIRECTIONAL VALVE 4WREE10WA50-2X/G24K31/A1V

MPN: R900247296
Category: Proportional directional valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R900247296?

Industrial hydraulic valve in the high performance range; reliable control of the oil flow direction according to the hydraulic symbol; high accuracy through internal piston position feedback

Spool valve

Direct actuated

Industrial high-performance hydraulic valve

Specifications

Connection diagram	ISO 4401-05-04-0-05
Product family	4WRE(E)6,10
Operating pressure, max. [bar]	315.0
Max. flow [l/min]	180.0
Spool symbol	Symbol WA
Type of connection	Subplate mounting
Nominal flow [l/min]	50.0
Size	10
Type of actuation	Electrical with on-board electronics
Number of ports	4
Number of switching positions	2
Supply voltage	24 VDC
Electrical connector	Connector, 7-pole (6 + PE)
Electrical connection description	Connector 7-pole (6 + PE) according to EN 175201-804
Connectivity	Analog, command value 0…10 V
Hydraulic fluid	HEES; HEPG; HETG; HFDR; HFDU; HL; HLP; HLPD; HVLP; HVLPD
Seals	FKM
Weight [kg]	4.88

R900247296: frequently asked questions

When can R900247296 be shipped?

R900247296 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R900247296 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R900247296 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R900247296, subject to availability and destination.
