Bosch Rexroth R900086150

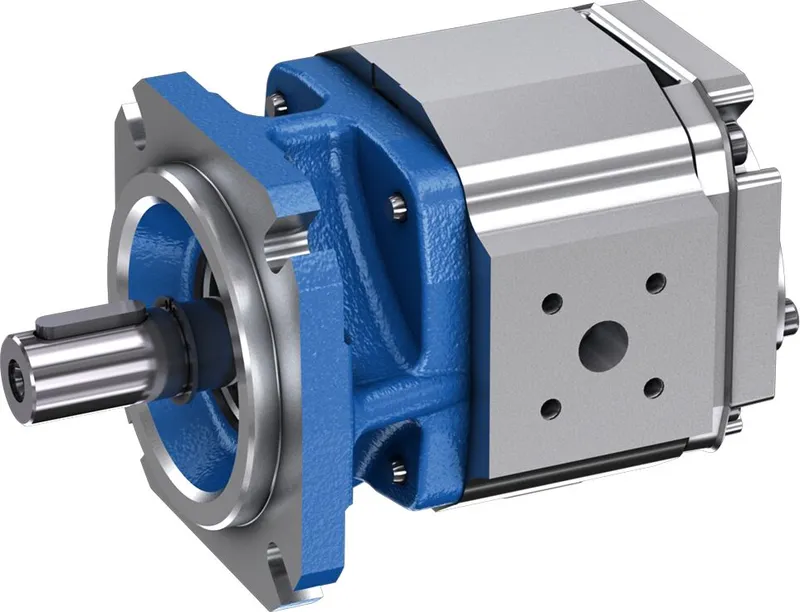

INTERNAL GEAR PUMP PGF1-2X/3,2LN01VM
- MPN
- R900086150
- Category
- Internal gear pumps
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R900086150?
Suitable for variable-speed drives, low noise and low pulsation, high efficiency thanks to gap compensation, suitable for two million load cycles at maximum pressure
Internal gear pump with constant displacement
For industrial and mobile applications in the open circuit
With FKM seals
Aluminum housing
Specifications
Specifications
| Displacement type | constant |
| Product family | PGF |
| Operating pressure, max. [bar] | 210.0 |
| Max. flow [l/min] | 11.52 |
| Size | 3.2 |
| Through-drive | without |
| Direction of rotation | counterclockwise rotation |
| Shaft end | Dihedral for claw coupling 5 mm |
| Mounting flange | 2-hole fastening centering 32 mm |
| Hydraulic fluid | HEES; HEPG; HETG; HFDR; HFDU; HLP; HLPD; HVLP; HVLPD |
| Seals | FKM |
| Operating pressure max. special fluids [bar] | 210 |
| Weight [kg] | 0.94 |
