Bosch Rexroth R347602303

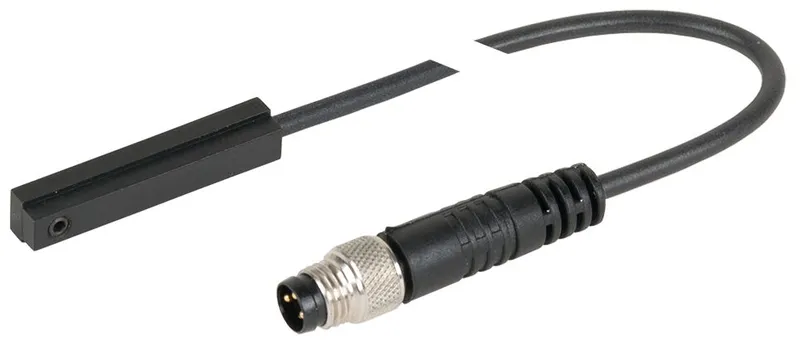

MAGNETIC FIELD SENSOR REED SPDT R 10705 &

MPN: R347602303
Category: Electrical accessories for linear axes

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R347602303?

Bosch Rexroth MAGNETIC FIELD SENSOR REED SPDT R 10705 &, manufacturer part number R347602303. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Electrical accessories for linear axes	Magnetic sensors
Use	Limit switch

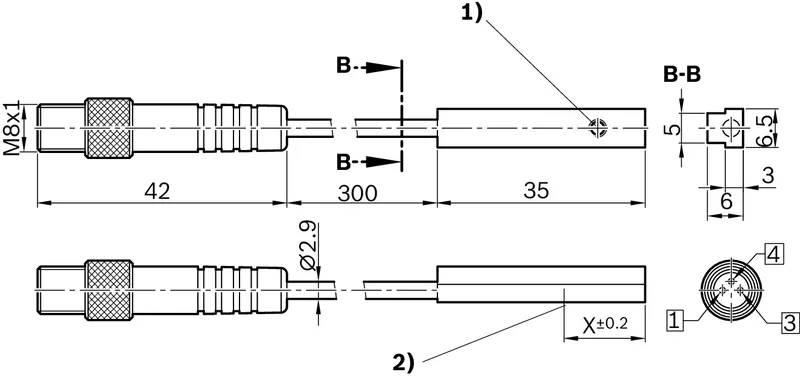

Connection type	0.3 m cable and M8x1 connector, 3-pin with knurled screw connection
Switching function version	REED/single-pole changeover, (NC: C+NC, NO: C+NO)
Certifications and approvals	‒
Permissible ambient temperature (min. ... max.)	-40 °C ... +85 °C
Cable cross-section	3 x 0.14 mm²
Activation point (dimension x) [mm]	9
Operating voltage (min. … max.)	30 V
Dynamic bending radius	‒
Static bending radius	‒
Bending cycles	‒
Weight [kg]	0.02
Switch-on suppression	no
Function indicator	no
Functional principle	magnetic
Dynamic bending radius footnote	Technical data only for the cast-on connection cable (0.3 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Footnote bending radius, static	Technical data only for the cast-on connection cable (0.3 m) on the magnetic sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Bending cycles footnote	Technical data only for the cast-on connection cable (0.3 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Footnote cable diameter d with tolerance	Technical data only for the cast-on connection cable (0.3 m) on the magnetic sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Footnote cable cross-section	Technical data only for the cast-on connection cable (0.3 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Suitable for drag chains footnote	Technical data only for the cast-on connection cable (0.3 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Weld spark-resistant footnote	Technical data only for the cast-on connection cable (0.3 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Torsion-resistant footnote	Technical data only for the cast-on connection cable (0.3 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Cable diameter D [mm]	3.2
Cable diameter D tolerance [mm]	±0.2
Compatible	CKK, CKR, VKK, MKK/MKR-040
Short-circuit protection	yes
Load current [A]	500
Max. permissible approach speed [m/s]	2
MTTFd (per EN ISO 13849-1) [Years]	‒
Pulse extension	yes
Switching frequency [Hz]	2500
Suitable for drag chains	No
Protection class	IP66
Weld spark-resistant	yes
Torsion-resistant	yes
Reverse polarity protection	yes
