Bosch Rexroth R345403095

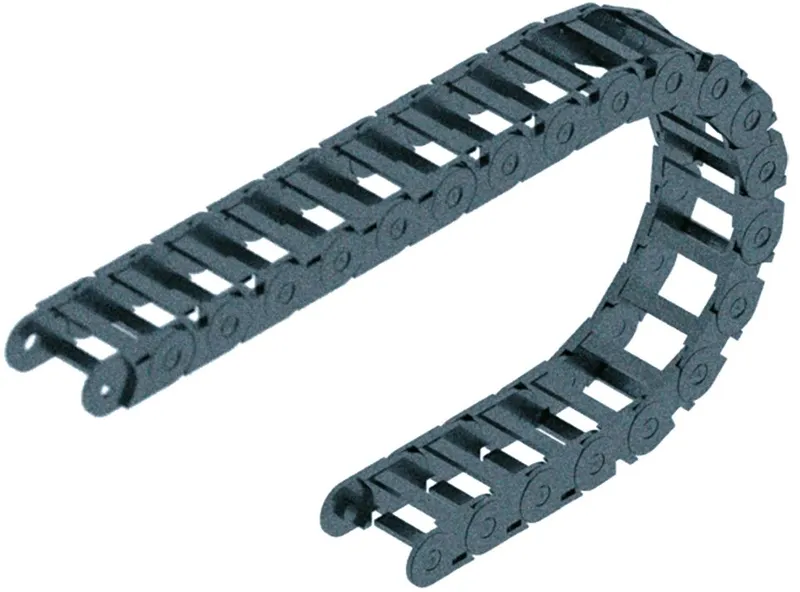

ENERGY CHAIN 0455.030.058.125&

MPN: R345403095
Category: Electrical accessories for linear axes

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R345403095?

Bosch Rexroth ENERGY CHAIN 0455.030.058.125&, manufacturer part number R345403095. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Electrical accessories for linear axes	Cable drag chains
Maximum acceleration rate amax [m/s²]	50.0
Mass m (kg/m) [kg/m]	0.95
Dead weight of the supply lines in the cable drag chain with cooling line [kg/m]	0.7; 0.9
Dead weight of the supply lines in the cable drag chain without cooling line [kg/m]	0.5; 0.7
Weight [kg]	0.1
Dead weight of the supply lines in the cable drag chain with cooling line footnote	The value 0.7 kg/mm applies for TKL-275,↩the value 0.9 kg/mm applies for TKL-325
Dead weight of the supply lines in the cable drag chain without cooling line footnote	The value 0.5 kg/mm applies for TKL-275,↩the value 0.7 kg/mm applies for TKL-325
Compatible	TKL-275, TKL-325

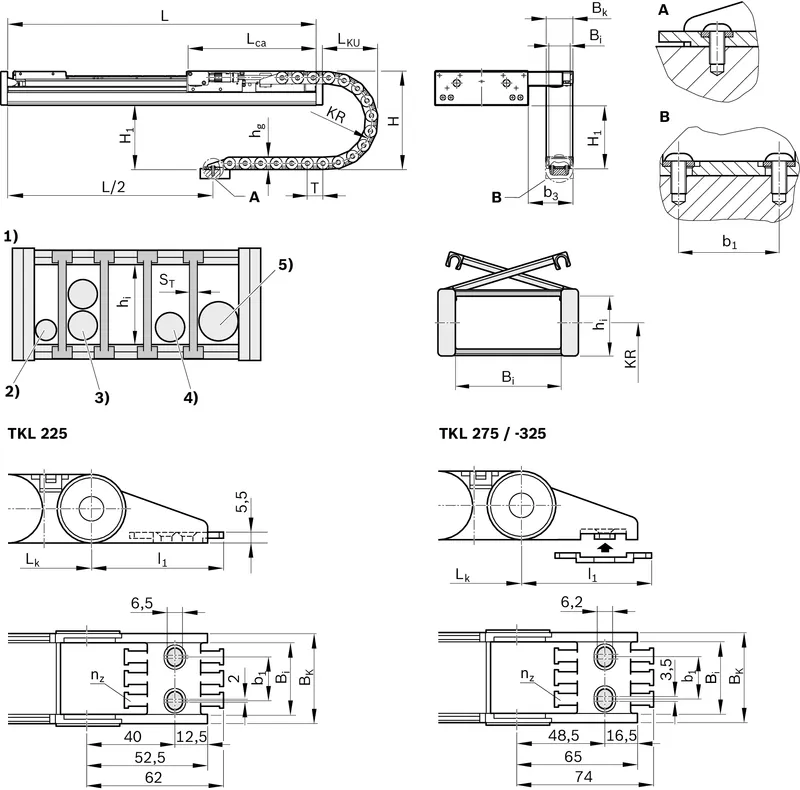

Dimension B3 [mm]	121
Dimension b3 [mm]	121
Dimension Bi [mm]	58
Dimension BK [mm]	76
Dimension ER [mm]	150; 50; 80
Dimension H [mm]	286.0
Dimension H1 (profiled rail systems) [mm]	170; 180
Dimension hg [mm]	36
Dimension hi [mm]	26
Dimension KR [mm]	125
Dimension LKU [mm]	150; 50; 80
Dimension nz [mm]	4
Dimension ST [mm]	2.5
Dimension Z [mm]	466; 508; 561; 575; 610
Footnote Dimension H1	Value 180 mm applies to TKL-275,↩value 170 mm applies to TKL-325
Footnote dimension LKU	Value 150 mm applies to TKL-275, primary part A,↩value 80 mm applies to TKL-275, primary part B, ↩value 50 mm applies to TKL-325, primary part A
Footnote Dimension Z	Value 610 mm applies to TKL-275, primary part A,↩value 575 mm applies to TKL-275, primary part B, ↩value 561 mm applies to TKL-325, primary part A, ↩value 508 mm applies to TKL-325, primary part B, ↩value 466 mm applies to TKL-325, primary part C
