Bosch Rexroth R254210005

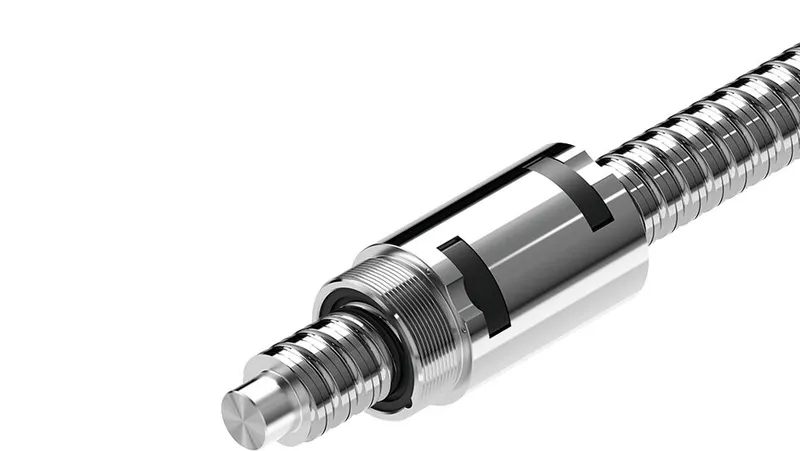

BALL NUT ZEV-E-S 20X5RX3-4

MPN: R254210005
Category: Ball screw assembly nuts

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R254210005?

Screw-in nut ZEV-E-S with standard seal and standard axial clearance

Nominal diameter d0 = 20

Lead P = 5 (right)

Ball diameter Dw = 3

Number of ball track turns i = 4

Rexroth connection dimensions

With low-friction seal

Preload class: C0, C00, C1

Tolerance grade: T3 (for sizes as per the product overview for screws, see General Technical Notes and Information "Product description"), T5, T7

Specifications

Nominal size [mm]	20 x 5R x 3 - 4
Series	Standard series
Dynamic load capacity C [N]	17200.0
Note: dynamic load capacity C	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes).
Maximum permissible linear speed vmax (m/min) [m/min]	30.0
Note: maximum permissible speed vmax	See "Characteristic speed d<sub>0 </sub>• n" (see General Technical Notes and Information, "Technical Data" (Technical Notes), and "Critical speed n<sub>cr</sub>" (see General Technical Notes and Information, "Project planning notes")
Operating temperature (min. … max.)	-10 °C ... +80 °C
Storage temperature (min. … max.)	-15 °C ... +80 °C
Direction of lead	Right
Nut type	ZEV-E-S screw-in nuts
Note: permissible operating temperature (min. ... max.)	Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.
Screw drive seal	With low-friction seal
Weight [kg]	0.34
Static load capacity C0 [N]	21500.0
Note: static load capacity C0	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes).
Category	B
Maximum operating temperature [°C]	+80
Bearing temperature max [°C]	+80
Minimum operating temperature [°C]	-10
Bearing temperature min [°C]	-15
Dimension d1 [mm]	19
Dimension D1 h10 [mm]	38
Dimension d2 [mm]	16.9
Dimension D4 [mm]	2.7
Dimension D8 [mm]	8
Dimension G1 [mm]	M35x1,5
Dimension L [mm]	50
Dimension L tolerance [mm]	±0.3
Dimension L15 [mm]	14
Dimension L7 [mm]	12.5
