Bosch Rexroth R205D31420
BALL RUNNER BLOCK CARBON STEEL KWE-035-SLS-C1-N-1
- MPN
- R205D31420
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

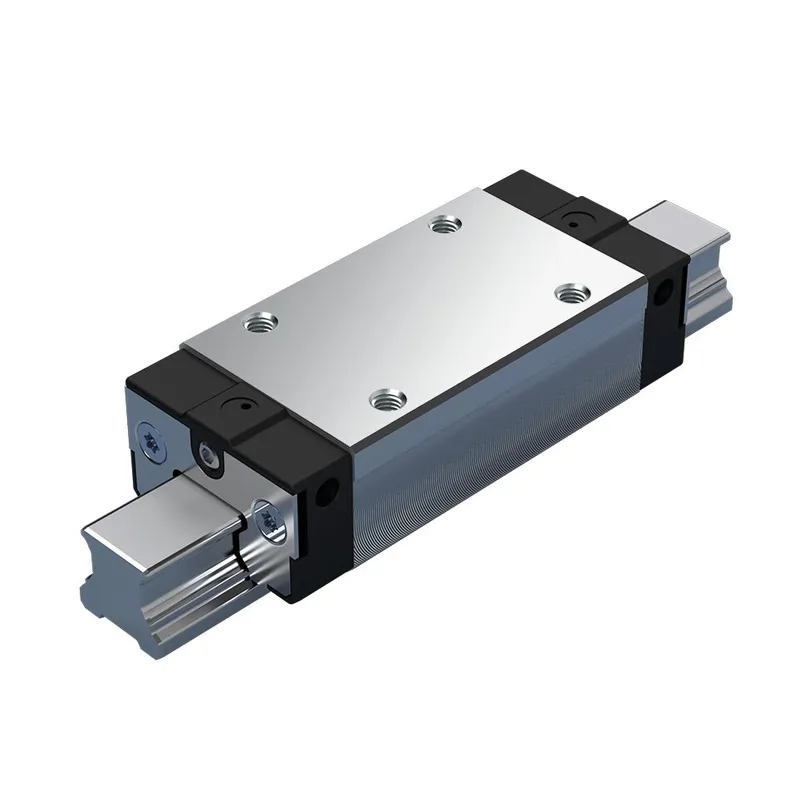

What is the Bosch Rexroth R205D31420?
The Compact Line ball runner block is precise and characterized by the following product features:
Size 35
Format SLS - slimline, long, standard height
Runner block body made of unalloyed steel CS
Preload class C1: Low preload
Accuracy class N: Standard
Without ball chain
With initial lubrication and preservation
Runner block body in standard version
Overall length of the runner block = 139 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Area of application: For restricted space in the transverse direction and high rigidity requirements
Load capacity: Very high
For mounting from above
Specifications
Specifications
| Version | Ball rail system |
| Nominal size [mm] | 35 |
| Format | SLS - slimline, long, standard height |
| Model | Compact Line ball runner block |
| Preload class | C1 - Low preload |
| Accuracy class | N - Normal |
| Seal | SS - Standard seal |
| Ball chain | Without ball chain (standard) |

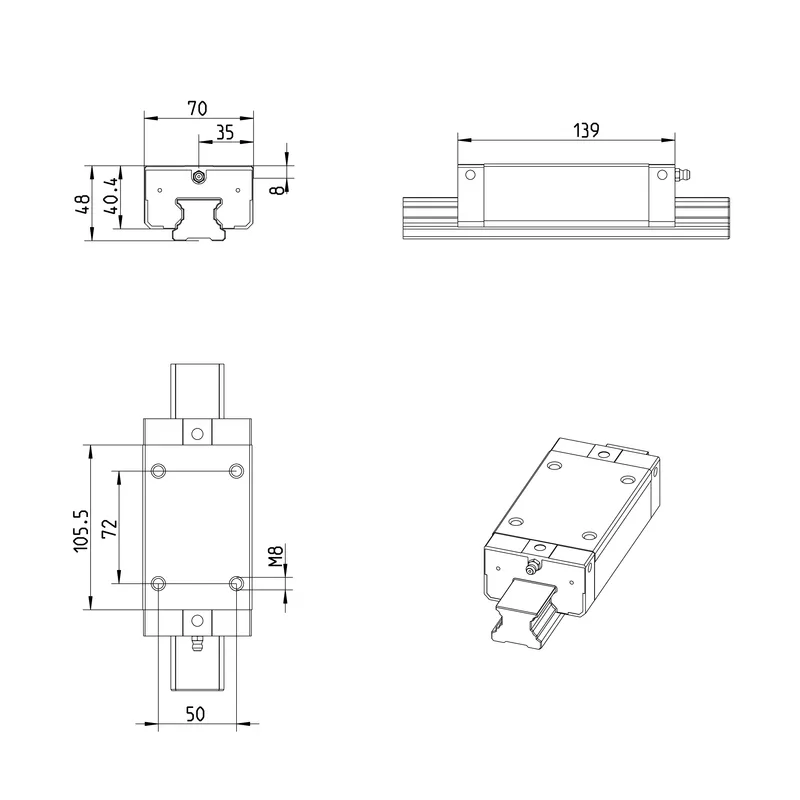

| Width of runner block [mm] | 70.0 |
| Length of runner block [mm] | 139.0 |
| Height of runner block [mm] | 40.4 |
| Height runner block with guide rail [mm] | 48.0 |
| Lubrication | Pre-lubricated, preserved |
| Maximum acceleration rate amax [m/s²] | 500.0 |
| Note: Max. acceleration amax | If F<sub>comb</sub>◡> 2.8 • F<sub>pr</sub> : a<sub>max</sub> = 50 m/s<sup>2</sup> |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for a short time. |
| Friction coefficient μ | 0.002 ... 0.003 |
| Note: friction coefficient μ | Friction coefficient µ without seal friction |
| Weight [kg] | 1.71 |
| Dynamic load capacity C50 [N] | 69300.0 |
| Note: dynamic load capacity C50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic load capacity C100 [N] | 55000.0 |
| Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static load capacity C0 [N] | 81600.0 |
| Dynamic torsional moment load capacity Mt50 [Nm] | 1260.0 |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic torsional moment load capacity Mt100 [Nm] | 1000.0 |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static torsional moment load capacity Mt0 [Nm] | 1480 |
| Dynamic longitudinal moment load capacity ML50 [Nm] | 1300.0 |
| Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic longitudinal moment load capacity ML100 [Nm] | 1030.0 |
| Note: Dynamic longitudinal moment load capacity ML100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static longitudinal moment load capacity ML0 [Nm] | 1530 |
| Pitch T guide rail [mm] | 80 |

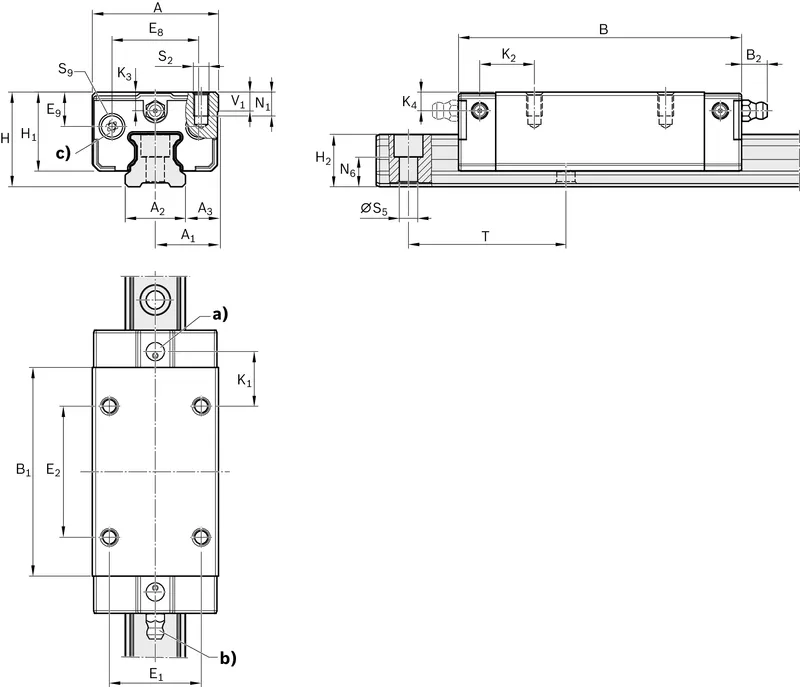

| Dimension A (profiled rail systems) [mm] | 70 |
| Dimension A1 (profiled rail systems) [mm] | 35 |
| Dimension A2 (profiled rail systems) [mm] | 34 |
| Dimension A3 (profiled rail systems) [mm] | 33 |
| Dimension B (profiled rail systems) [mm] | 139 |
| Dimension B tolerance (profiled rail systems) [mm] | +0.5 |
| Dimension B1 [mm] | 105.5 |
| Dimension E1 [mm] | 50 |
| Dimension E2 [mm] | 72 |
| Dimension E8 (profiled rail systems) [mm] | 50 |
| Dimension E9 (profiled rail systems) [mm] | 15.7 |
| Dimension H [mm] | 48.0 |
| Dimension H1 (profiled rail systems) [mm] | 40.4 |
| Dimension H2 (profiled rail systems) [mm] | 26.5 |
| Dimension K1 (profiled rail systems) [mm] | 23.75 |
| Dimension K2 (profiled rail systems) [mm] | 25.4 |
| Dimension K3 (profiled rail systems) [mm] | 7 |
| Dimension K4 (profiled rail systems) [mm] | 7 |
| Dimension N3 (profiled rail systems) [mm] | 13 |
| Dimension N6 (profiled rail systems) [mm] | 15.5 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S2 (profiled rail systems) | M8 |
| Dimension S5 (profiled rail system) [mm] | 9 |
| Dimension S9 | M3x6.5 mm |
| Dimension S9 thread diameter (profiled rail systems) | M3 |
| Dimension S9 lead [mm] | 6.5 |
| Dimension T [mm] | 80 |
| Dimension T1 min [mm] | 16 |
| Dimension V1 [mm] | 8 |
| Height of guide rail H2 [mm] | 26.5 |
