Bosch Rexroth R205570431
BALL GUIDE RAIL CARBON STEEL KSE-030-SNS-N-MA-AK
- MPN
- R205570431
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R205570431?
The Compact Line ball guide rail is precise and characterized by the following product features:
Size 30
Format SNS: Width = slimline, length = normal, height = standard
Guide rail made of carbon steel CS
Fastener MA: Bolting from above
Cover AK: Plastic caps
Accuracy class standard
Number of partial sections: one-piece
Rail in standard version
BSCL ball guide rails can be cut to the customer's desired length before delivery. The maximum lengths for a one-piece rail section can be found in the "Ball guide rails" chapter. If longer rails are required, Bosch Rexroth will supply them as multi-piece ball guide rails.
Specifications
Specifications
| Version | Ball rail system |
| Nominal size [mm] | 30 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Carbon steel |
| Accuracy class | N - Normal |
| Guide rail mounting | For bolting from above |
| Guide rail cover | Plastic caps |
| Max. length Lmax [mm] | 3836.0 |
| Minimum length Lmin [mm] | 104.0 |
| Number of holes nB (profiled rail systems) | 48 |
| Number of sections | 1-piece |
| Mass m (kg/m) [kg/m] | 3.6 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100 °C admissible for a short time. |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Product information | Please configure the product to add it to the shopping cart. |
| Pitch T guide rail [mm] | 80 |

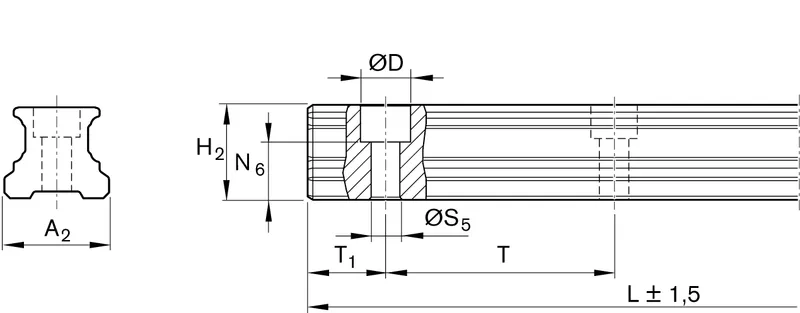

| Dimension A2 (profiled rail systems) [mm] | 28 |
| Dimension D [mm] | 15 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 23 |
| Dimension N6 (profiled rail systems) [mm] | 12 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S5 (profiled rail system) [mm] | 9 |
| Dimension T [mm] | 80 |
| Dimension T1 max (profiled rail systems) [mm] | 68 |
| Dimension T1 min [mm] | 12 |
| Dimension T1 s (profiled rail systems) [mm] | 38 |
