Bosch Rexroth R205510451

BALL GUIDE RAIL CARBON STEEL KSE-015-SNS-N

MPN: R205510451
Category: Ball guide rails Compact Line BSCL

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R205510451?

The Compact Line ball guide rail is precise and characterized by the following product features:

Size 15

Format SNS: Width = slimline, length = normal, height = standard

Guide rail made of carbon steel CS

Fastener MA: Bolting from above

Cover AK: Plastic caps

Accuracy class standard

Rail in factory length

Factory lengths are guide rails without end machining which are only available in four-meter sections.

Specifications

Version	Ball rail system
Nominal size [mm]	15
Format	SNS - Standard guide rail
Accuracy class	N - Normal
Guide rail mounting	For bolting from above
Mass m (kg/m) [kg/m]	1.2
Weight [kg]	1.43
Recommended rail length (formula)	L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Note: Dynamic torsional moment load capacity Mt50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Note: Dynamic torsional moment load capacity Mt100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
Pitch T guide rail [mm]	60

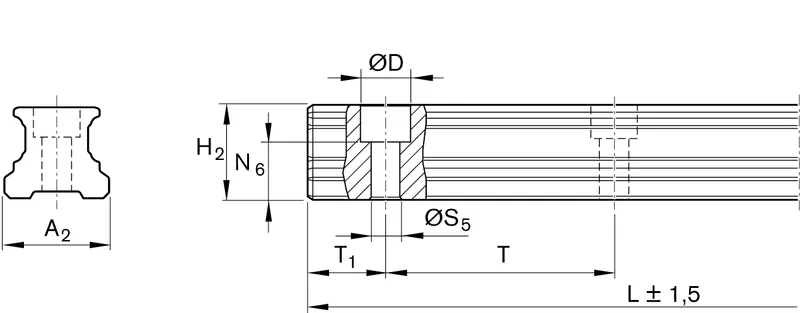

Dimension A2 (profiled rail systems) [mm]	15
Dimension D [mm]	7.4
Dimension H2 without cover strip (profiled rail systems) [mm]	14.1
Dimension N6 (profiled rail systems) [mm]	8.55
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension S5 (profiled rail system) [mm]	4.5
Dimension T [mm]	60
Dimension T1 max (profiled rail systems) [mm]	50
Dimension T1 min [mm]	10
Dimension T1 s (profiled rail systems) [mm]	28
