Bosch Rexroth R204780434
BALL GUIDE RAIL RESIST NRII KSA-020-SNS-N-MB-00
- MPN
- R204780434
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R204780434?

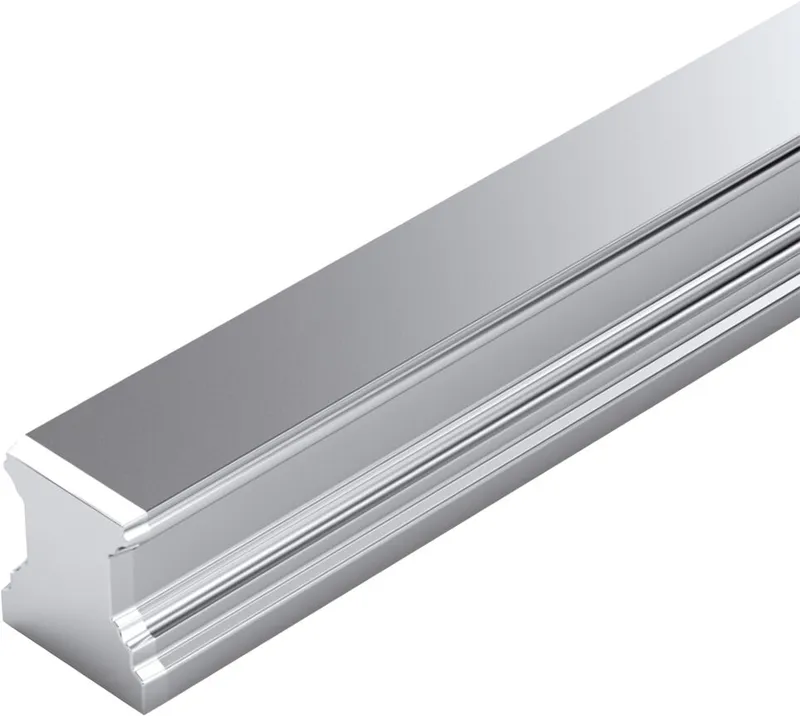

The ball guide rail made of Resist NRII is corrosion-resistant and highly precise. It is characterized by the following product features:
Size 20
Format SNS: Width = slimline, length = normal, height = standard
Guide rail made of corrosion-resistant steel as per DIN 10088
Fastener MB: Bolting from below
Cover 00: Without cover
Accuracy class standard
Number of partial sections: 4
Rail in standard version
Specifications
Specifications
| Version | Ball rail system |
| Nominal size [mm] | 20 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Corrosion-resistant steel (Resist NR II) |
| Accuracy class | N - Normal |
| Guide rail mounting | For bolting from below |
| Guide rail cover | Without cover strip |
| Max. length Lmax [mm] | 3836.0 |
| Minimum length Lmin [mm] | 80.0 |
| Number of holes nB (profiled rail systems) | 64 |
| Number of sections | 4-piece |
| Mass m (kg/m) [kg/m] | 2.4 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for a short time. For operation at negative temperatures, please consult us. |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Product information | Please configure the product to add it to the shopping cart. |
| Pitch T guide rail [mm] | 60 |

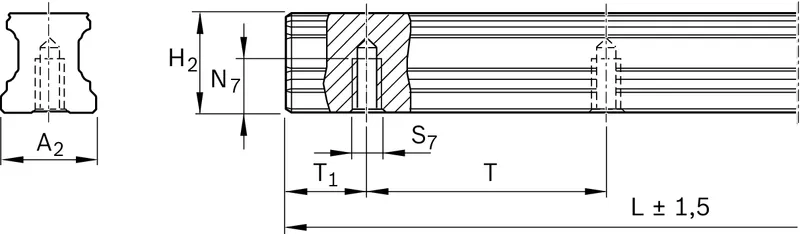

| Dimension A2 (profiled rail systems) [mm] | 20 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 20.55 |
| Dimension N7 (profiled rail systems) [mm] | 9 |
| Dimension S7 thread diameter | M6 |
| Dimension T [mm] | 60 |
| Dimension T1 max (profiled rail systems) [mm] | 50 |
| Dimension T1 min [mm] | 10 |
| Dimension T1 s (profiled rail systems) [mm] | 28 |
| Footnote of dimension T1 s (profiled rail systems) | Preferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended. |
R204780434: frequently asked questions
When can R204780434 be shipped?
R204780434 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R204780434 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R204780434 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R204780434, subject to availability and destination.
