Bosch Rexroth R204720437
BALL GUIDE RAIL RESIST NRII KSA-025-SNS-N-MB-00
- MPN
- R204720437
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R204720437?

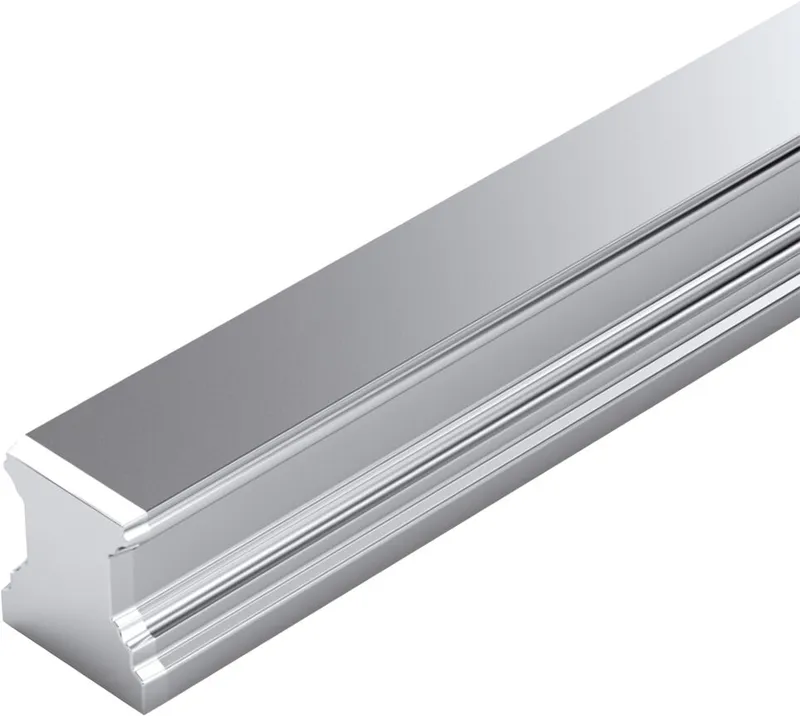

The ball guide rail made of Resist NRII is corrosion-resistant and highly precise. It is characterized by the following product features:
Size 25
Format SNS: Width = slimline, length = normal, height = standard
Guide rail made of corrosion-resistant steel as per DIN 10088
Fastener MB: Bolting from below
Cover 00: Without cover
Accuracy class standard
Number of partial sections: 7
Rail in standard version
Specifications
Specifications
| Version | Ball rail system |
| Nominal size [mm] | 25 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Corrosion-resistant steel (Resist NR II) |
| Accuracy class | N - Normal |
| Guide rail mounting | For bolting from below |
| Guide rail cover | Without cover strip |
| Max. length Lmax [mm] | 3836.0 |
| Minimum length Lmin [mm] | 80.0 |
| Number of holes nB (profiled rail systems) | 64 |
| Number of sections | 7-piece |
| Mass m (kg/m) [kg/m] | 3.2 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for a short time. For operation at negative temperatures, please consult us. |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Product information | Please configure the product to add it to the shopping cart. |
| Pitch T guide rail [mm] | 60 |

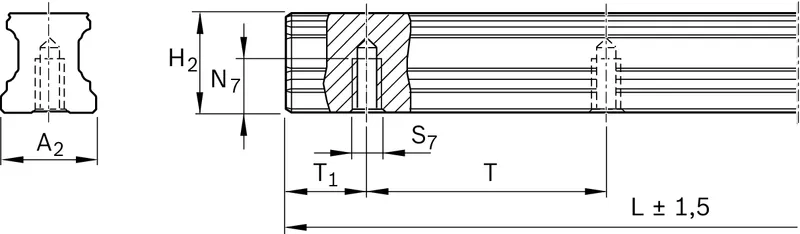

| Dimension A2 (profiled rail systems) [mm] | 23 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 24.25 |
| Dimension N7 (profiled rail systems) [mm] | 12 |
| Dimension S7 thread diameter | M6 |
| Dimension T [mm] | 60 |
| Dimension T1 max (profiled rail systems) [mm] | 50 |
| Dimension T1 min [mm] | 10 |
| Dimension T1 s (profiled rail systems) [mm] | 28 |
| Footnote of dimension T1 s (profiled rail systems) | Preferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended. |
