Bosch Rexroth R204570331
BALL GUIDE RAIL RESIST NRII KSA-030-SNS-H-MA-AK
- MPN
- R204570331
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R204570331?
The ball guide rail made of Resist NRII is corrosion-resistant and highly precise. It is characterized by the following product features:
Size 30
Format SNS: Width = slimline, length = normal, height = standard
Guide rail made of corrosion-resistant steel as per DIN 10088
Fastener MA: Bolting from above
Cover AK: Plastic caps
Accuracy class high
Number of partial sections: one-piece
Rail in standard version
Maximum rigidity in all load directions
High torque load capacity
For mounting from above with plastic mounting hole plugs
Ball guide rail as well as all steel parts made of corrosion-resistant steel according to DIN EN 10088
No extra space needed at rail ends
Observe the instruction for mounting! Please request the “Mounting instructions for ball rail systems.”
Specifications
Specifications
| Version | Ball rail system |
| Nominal size [mm] | 30 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Corrosion-resistant steel (Resist NR II) |
| Accuracy class | H - Highly accurate |
| Guide rail mounting | For bolting from above |
| Guide rail cover | Plastic caps |
| Max. length Lmax [mm] | 5836.0 |
| Note: Lmax | Available on request |
| Minimum length Lmin [mm] | 104.0 |
| Number of holes nB (profiled rail systems) | 48 |
| Number of sections | 1-piece |
| Mass m (kg/m) [kg/m] | 5 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for short time. For operation at negative temperatures, please consult us. |
| Weight [kg] | 0 |

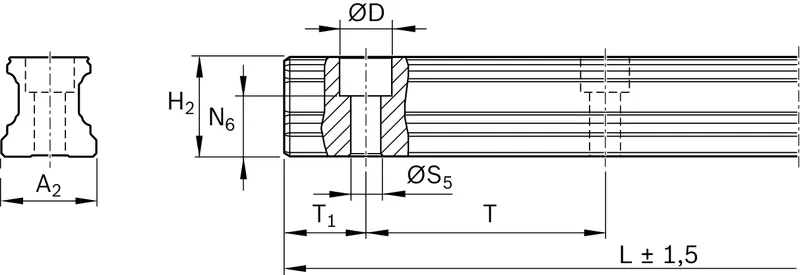

| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Product information | Please configure the product to add it to the shopping cart. |
| Pitch T guide rail [mm] | 80 |
| Dimension A2 (profiled rail systems) [mm] | 28 |
| Dimension D [mm] | 15 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 28.35 |
| Dimension N6 (profiled rail systems) [mm] | 17 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S5 (profiled rail system) [mm] | 9 |
| Dimension T [mm] | 80 |
| Dimension T1 max (profiled rail systems) [mm] | 68 |
| Dimension T1 min [mm] | 12 |
| Dimension T1 s (profiled rail systems) [mm] | 38 |
| Footnote of dimension T1 s (profiled rail systems) | Preferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended. |
