Bosch Rexroth R204530338
BALL GUIDE RAIL RESIST NRII KSA-035-SNS-H-MA-AK
- MPN
- R204530338
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R204530338?

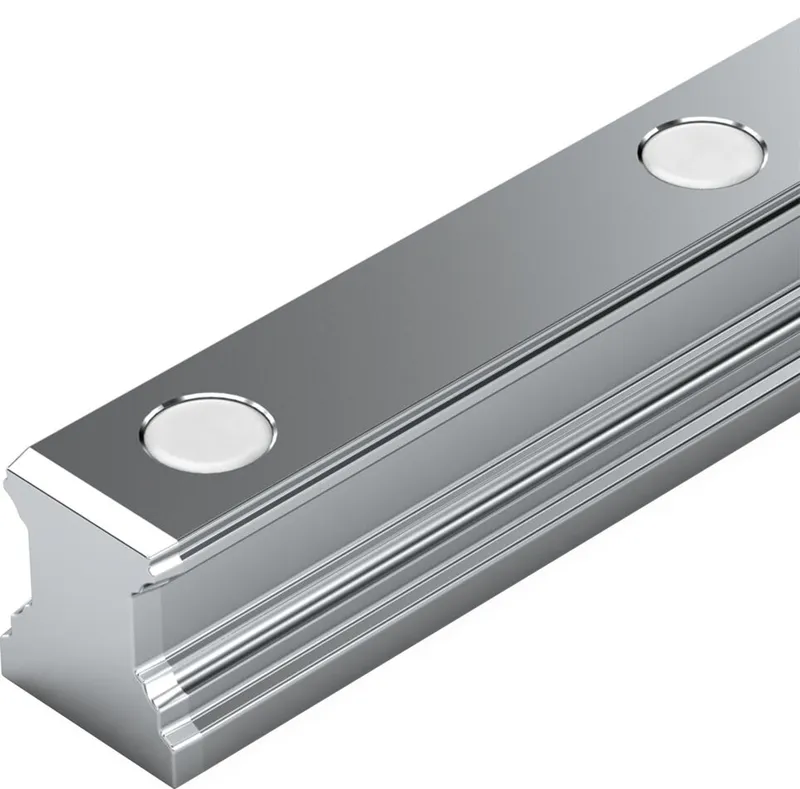

The ball guide rail made of Resist NRII is corrosion-resistant and highly precise. It is characterized by the following product features:
Size 35
Format SNS: Width = slimline, length = normal, height = standard
Guide rail made of corrosion-resistant steel as per DIN 10088
Fastener MA: Bolting from above
Cover AK: Plastic caps
Accuracy class high
Number of partial sections: 8
Rail in standard version
Specifications
Specifications
| Version | Ball rail system |
| Nominal size [mm] | 35 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Corrosion-resistant steel (Resist NR II) |
| Accuracy class | H - Highly accurate |
| Guide rail mounting | For bolting from above |
| Guide rail cover | Plastic caps |
| Max. length Lmax [mm] | 3836.0 |
| Minimum length Lmin [mm] | 104.0 |
| Number of holes nB (profiled rail systems) | 48 |
| Number of sections | 8-piece |
| Mass m (kg/m) [kg/m] | 6.8 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for a short time. For operation at negative temperatures, please consult us. |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Product information | Please configure the product to add it to the shopping cart. |
| Pitch T guide rail [mm] | 80 |

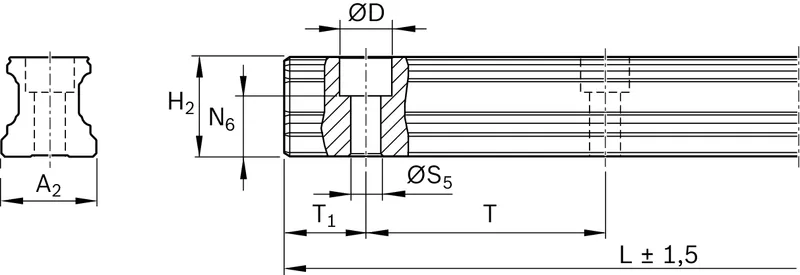

| Dimension A2 (profiled rail systems) [mm] | 34 |
| Dimension D [mm] | 15 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 31.85 |
| Dimension N6 (profiled rail systems) [mm] | 20.5 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S5 (profiled rail system) [mm] | 9 |
| Dimension T [mm] | 80 |
| Dimension T1 max (profiled rail systems) [mm] | 68 |
| Dimension T1 min [mm] | 12 |
| Dimension T1 s (profiled rail systems) [mm] | 38 |
| Footnote of dimension T1 s (profiled rail systems) | Preferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended. |
