Bosch Rexroth R204524331

BALL GUIDE RAIL RESIST NRII KSA-025-SNS-H-MA-SC

MPN: R204524331
Category: High precision ball guide rail BSHP

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R204524331?

The ball guide rail made of Resist NRII is corrosion-resistant and highly precise. It is characterized by the following product features:

Size 25

Format SNS: Width = slimline, length = normal, height = standard

Guide rail made of corrosion-resistant steel as per DIN 10088

Fastener MA: Bolting from above

Cover SC: Cover strip and washers

Accuracy class high

Number of partial sections: one-piece

Rail in standard version

Proven cover strip for the ball guide rail mounting holes

For mounting from above

Cover strip made of corrosion-resistant spring steel as per DIN EN 10088

Cover strip secured with screws and washers.

One cover for all bore holes saves time and costs

Specifications

Version	Ball rail system
Nominal size [mm]	25
Format	SNS - Standard guide rail
Material (profiled rail systems)	Corrosion-resistant steel (Resist NR II)
Accuracy class	H - Highly accurate
Guide rail mounting	For bolting from above
Guide rail cover	With cover strip, screw, washer
Max. length Lmax [mm]	5816.0
Note: Lmax	Available on request
Minimum length Lmin [mm]	86.0
Number of holes nB (profiled rail systems)	64
Number of sections	1-piece
Mass m (kg/m) [kg/m]	3.2
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100 °C admissible for a short time. For operation at lower minus temperatures, please consult us.
Weight [kg]	0
Recommended rail length (formula)	L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Product information	Please configure the product to add it to the shopping cart.

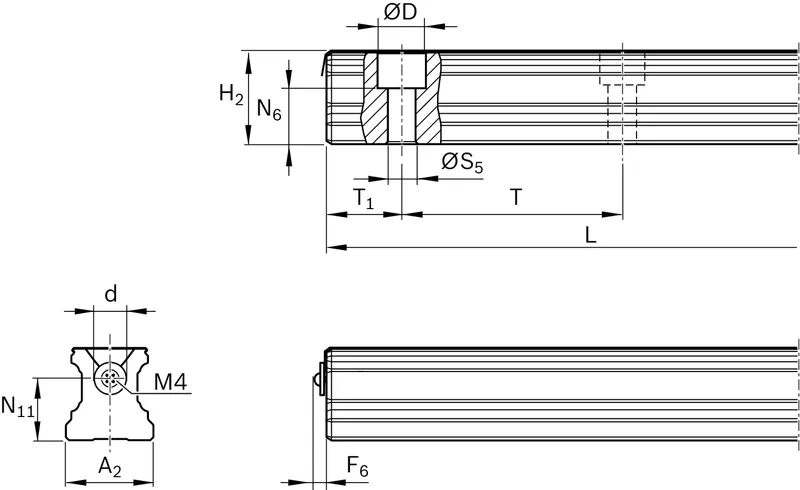

Pitch T guide rail [mm]	60
Dimension A2 (profiled rail systems) [mm]	23
Dimension D [mm]	11
Dimension d [mm]	12
Dimension F6 (profiled rail systems) [mm]	4.3
Dimension H2 with cover strip (profiled rail systems) [mm]	24.45
Footnote of H2 with cover strip (profiled rail systems)	With cover strip 0.2 mm
Dimension N11 (profiled rail systems) [mm]	15
Dimension N6 (profiled rail systems) [mm]	15.2
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension S5 (profiled rail system) [mm]	7
Dimension T [mm]	60
Dimension T1 max (profiled rail systems) [mm]	50
Dimension T1 min [mm]	13
Dimension T1 s (profiled rail systems) [mm]	28
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended.
Height of guide rail H2 with cover strip [mm]	24.45
