BALL GUIDE RAIL RESIST NRII KSA-015-SNS-P-MA-BS

MPN: R204513232
Category: High precision ball guide rail BSHP

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R204513232?

The ball guide rail made of Resist NRII is corrosion-resistant and highly precise. It is characterized by the following product features:

Size 15

Format SNS: Width = slimline, length = normal, height = standard

Guide rail made of corrosion-resistant steel as per DIN 10088

Fastener MA: Bolting from above

Cover BS: Cover strip and strip clamp

Accuracy class precision

Number of partial sections: 2

Rail in standard version

Area of application: For very harsh environments

Robust strip clamp

For mounting from above

Ball guide rail as well as all steel parts made of corrosion-resistant steel according to DIN EN 10088

Aluminum strip clamps

Observe the instruction for mounting! Please request the "Mounting instructions for ball rail systems" and "Mounting instructions for cover strip".

Maximum rigidity in all load directions

High torque load capacity

A single cover for all holes. No end-face hole required for strip clamp.

Specifications

Version	Ball rail system
Nominal size [mm]	15
Format	SNS - Standard guide rail
Material (profiled rail systems)	Corrosion-resistant steel (Resist NR II)
Accuracy class	P - Precise
Guide rail mounting	For bolting from above
Guide rail cover	With cover strip and strip clamps
Max. length Lmax [mm]	1856.0
Minimum length Lmin [mm]	84.0
Number of holes nB (profiled rail systems)	30
Number of sections	2-piece
Mass m (kg/m) [kg/m]	1.4
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100 °C admissible for short time. For operation at negative temperatures, please consult us.
Weight [kg]	0
Recommended rail length (formula)	L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Product information	Please configure the product to add it to the shopping cart.
Pitch T guide rail [mm]	60
Dimension A2 (profiled rail systems) [mm]	15
Dimension D [mm]	7.4

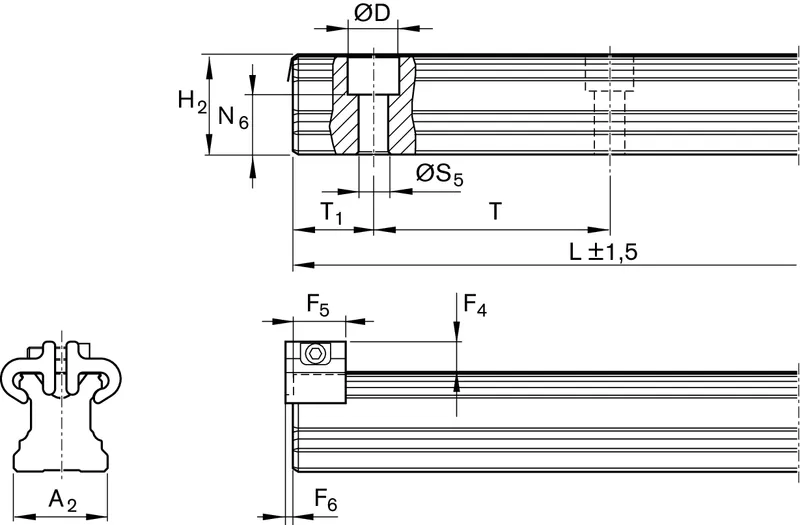

Dimension F4 with cover strip (profiled rail systems) [mm]	7.3
Dimension F5 (profiled rail systems) [mm]	12
Dimension F6 (profiled rail systems) [mm]	2
Dimension H2 with cover strip (profiled rail systems) [mm]	16.3
Footnote of H2 with cover strip (profiled rail systems)	With cover strip 0.1 mm
Dimension N6 (profiled rail systems) [mm]	10.3
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension S5 (profiled rail system) [mm]	4.5
Dimension T [mm]	60
Dimension T1 max (profiled rail systems) [mm]	50
Dimension T1 min [mm]	12
Dimension T1 s (profiled rail systems) [mm]	28
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended.
Height of guide rail H2 with cover strip [mm]	16.3
