Bosch Rexroth R201282290

What is the Bosch Rexroth R201282290?

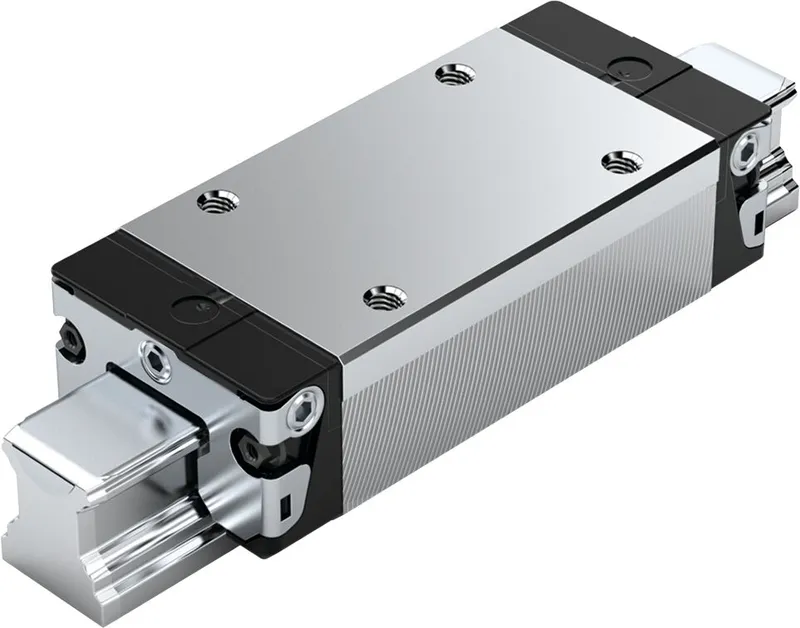

The ball runner block is highly precise and enables very high travel speeds. Additionally, it is characterized by the following product features:

Size 20

Format SLS: Width = slimline, length = long, height = standard

Runner block body made of unalloyed steel CS

Preload class C2: Medium preload

Accuracy class P: Precision

Without ball chain

With initial lubrication and preservation

Roller bearing grease Dynalub 510

Without attachment element, left (front reference edge)

Without attachment element, right (front reference edge)

Straight lube connection loosely attached.

Runner block body in standard version

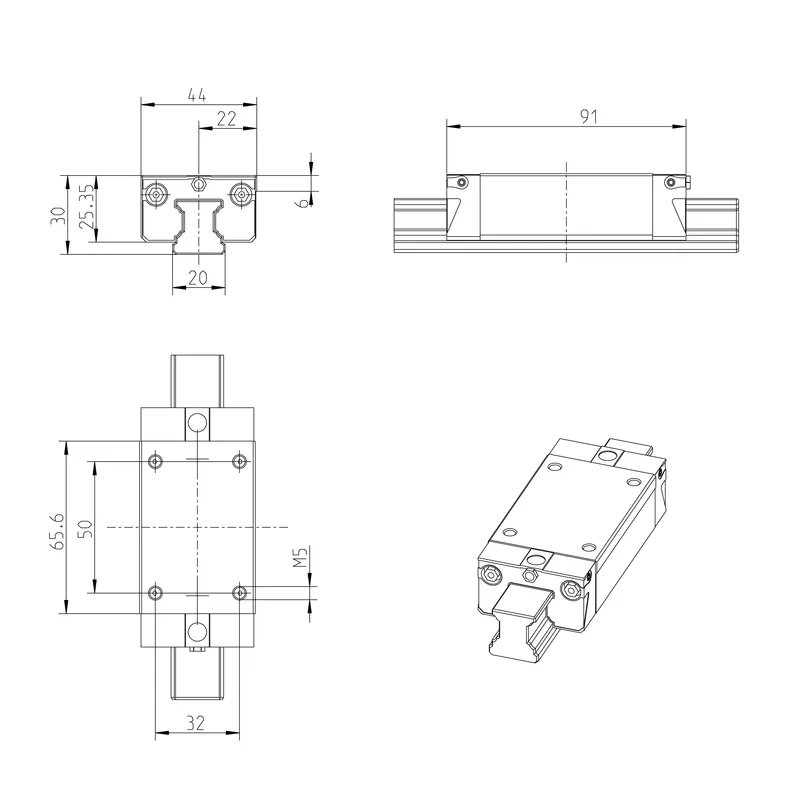

Overall length of the runner block = 91.0 mm

Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

Available in eight common sizes

Area of application: For maximum speeds

Significantly reduced frictional oscillations and low friction force level, particularly under external load

High speed thanks to the low weight of ceramic balls

Patented entry zone increases the travel accuracy up to a factor of six

Attachments on the ball runner block can be mounted from above

Lube fittings with metal threads on all sides

Maximum system rigidity due to preloaded O-arrangement

Electrically insulating due to use of ceramic balls

Excellent dynamic characteristics

Limitless interchangeability as all ball guide rail systems can be combined at will with all ball runner block versions within each accuracy class.

Smooth, quiet running thanks to optimally designed ball return and guideway

End-face fastening thread for all attachments

Minimum quantity lubrication with integrated reservoir for oil lubrication

Long-term lubrication is possible over several years

The same high load ratings in all four main directions of loading

Can be used on all SNS/SNO ball guide rails

Ball runner block pre-lubricated at the factory
