Bosch Rexroth R20008130X

BALL RUNNER BLOCK RESIST NRII KWD-020-FKS-C1-H-0

MPN: R20008130X
Category: High-precision ball runner block BSHP

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

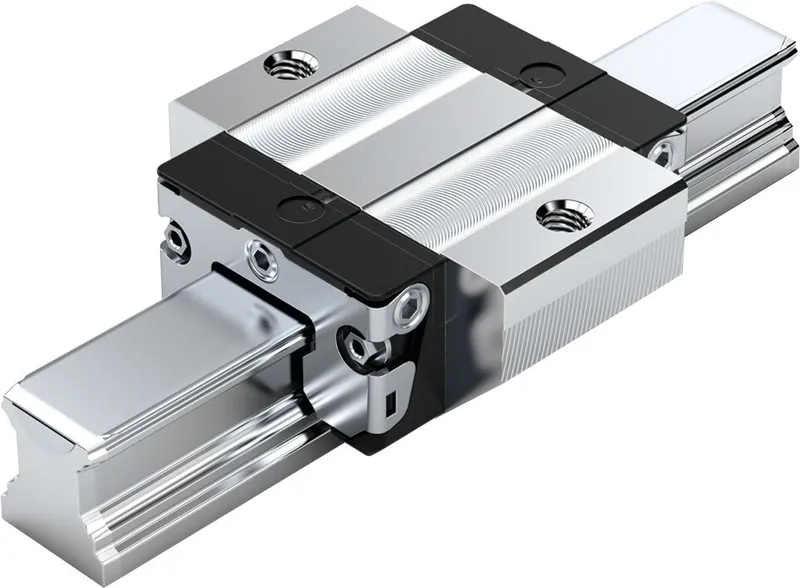

What is the Bosch Rexroth R20008130X?

The ball runner block made of Resist NRII is corrosion-resistant and highly precise. Additionally, it is characterized by the following product features:

Size 20

Format FKS: Width = flange, length = short, height = standard

Runner block body and all steel components made of corrosion-resistant steel as per DIN 10088

Preload class C1: Low preload

Accuracy class H: High

Without ball chain

Without preservation

Without initial lubrication

Without attachment element, left (front reference edge)

Without attachment element, right (front reference edge)

Straight lube connection loosely attached.

Runner block body in standard version

Overall length of the runner block = 57.3 mm

Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

Area of application: For restricted space in the longitudinal direction

Integrated all-round sealing

Maximum system rigidity due to preloaded O-arrangement

All metal parts are made of corrosion resistant steel

Patented entry zone increases the travel accuracy up to a factor of six

Can be used on all SNS ball guide rails

Available in five common sizes

Lube fittings with metal threads on all sides

The same high load ratings in all four main directions of loading

High rigidity in all load directions – permits applications with just one runner block per rail

Minimum quantity lubrication system with integrated reservoir for oil lubrication

Optimized entry-zone geometry and high number of balls minimize variation in elastic deflection

Excellent dynamic characteristics

Significantly reduced frictional oscillations and low friction force level, particularly under external load

Specifications

Version	Ball rail system
Nominal size [mm]	20
Format	FKS - flange, short, standard height
Model	High-precision ball runner block
Material (profiled rail systems)	Corrosion-resistant steel (Resist NR II)
Preload class	C1 - Low preload
Accuracy class	H - Highly accurate
Seal	DS - Double-lip seal
Ball chain	Without ball chain (standard)
Self-aligning for compensation of misalignments	Without self-alignment
Width of runner block [mm]	63.0
Length of runner block [mm]	57.3
Height of runner block [mm]	25.35
Height runner block with guide rail [mm]	30.0
Lubrication	Without lubrication (dry)
Maximum acceleration rate amax [m/s²]	500.0
Note: Max. acceleration amax	If F<sub>comb</sub>◡> 2.8 • F<sub>pr</sub> : a<sub>max</sub> = 50 m/s<sup>2</sup>
Maximum permissible linear speed vmax [m/s]	5.0
Note: seal	No preferred variants/combinations (partially longer delivery times)
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100 °C admissible for short time. For operation at negative temperatures, please consult us.
Friction coefficient μ	0.002 ... 0.003
Note: friction coefficient μ	Without friction of seal
Weight [kg]	0.3
Dynamic load capacity C50 [N]	10300.0
Note: dynamic load capacity C50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Dynamic load capacity C100 [N]	8200.0
Note: dynamic load capacity C100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
Static load capacity C0 [N]	9400.0
Dynamic torsional moment load capacity Mt50 [Nm]	160.0
Note: Dynamic torsional moment load capacity Mt50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Dynamic torsional moment load capacity Mt100 [Nm]	125.0
Note: Dynamic torsional moment load capacity Mt100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
Static torsional moment load capacity Mt0 [Nm]	115
Dynamic longitudinal moment load capacity ML50 [Nm]	57.0
Note: Dynamic longitudinal moment load capacity ML50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Dynamic longitudinal moment load capacity ML100 [Nm]	45.0
Note: Dynamic longitudinal moment load capacity ML100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
Static longitudinal moment load capacity ML0 [Nm]	40
Pitch T guide rail [mm]	60
Dimension A (profiled rail systems) [mm]	63
Dimension A1 (profiled rail systems) [mm]	31.5
Dimension A2 (profiled rail systems) [mm]	20
Dimension A3 (profiled rail systems) [mm]	21.5
Dimension B (profiled rail systems) [mm]	57.3
Dimension B tolerance (profiled rail systems) [mm]	+0.5
Dimension B1 [mm]	31.9
Dimension E1 [mm]	53
Dimension E8 (profiled rail systems) [mm]	32.5
Dimension E9 (profiled rail systems) [mm]	7.3
Dimension H [mm]	30.0
Dimension H1 (profiled rail systems) [mm]	25.35
Dimension H2 with cover strip (profiled rail systems) [mm]	20.75
Dimension H2 without cover strip (profiled rail systems) [mm]	20.55
Dimension K1 (profiled rail systems) [mm]	22.95
Dimension K2 (profiled rail systems) [mm]	22.95
Dimension K3 (profiled rail systems) [mm]	3.35
Dimension K4 (profiled rail systems) [mm]	3.35
Dimension N1 (profiled rail systems) [mm]	7.7
Dimension N6 (profiled rail systems) [mm]	13.2
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension S1 (profiled rail systems) [mm]	5.3
Dimension S2 (profiled rail systems)	M6
Dimension S5 (profiled rail system) [mm]	6
Dimension S9	M3x5 mm
Dimension S9 thread diameter (profiled rail systems)	M3
Dimension S9 lead [mm]	5
Dimension T1 min [mm]	13
Dimension V1 [mm]	6
