Bosch Rexroth R192705231
CAM ROLLER RAIL 52/120-0 &
- MPN
- R192705231
- Category
- Cam roller guide rails
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

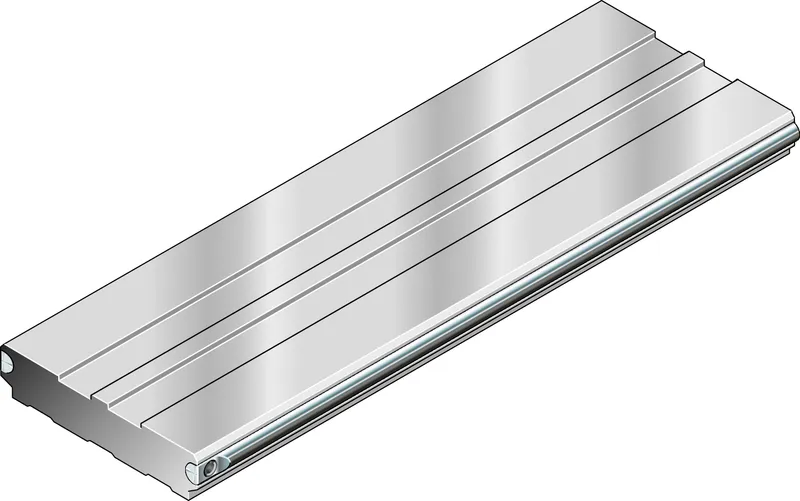

What is the Bosch Rexroth R192705231?
The cam roller guide rail is characterized by the following product features:
Size 52
Format BNN: Width = wide, length = standard, height = low
Guide rails made of aluminum with secured shafts made of corrosion-resistant steel
Fastener 00: Without
Cover 00: Without cover
No bores
Number of partial sections: one-piece
Rail in standard version
For mounting from above
Optional mounting hole plugs
With secured shafts made of corrosion-resistant steel according to DIN EN ISO 683-17 / EN 10088
Specifications
Specifications
| Version | Cam roller guide |
| Nominal size [mm] | 52/120 |
| Material (profiled rail systems) | Aluminum profile and corrosion-resistant steel shafts |
| Guide rail mounting | For bolting from above |
| Note: maximum length Lmax | Guide tracks up to 3500 mm are made of one-piece precision steel shafts. |
| Operating temperature (min. … max.) | -20 °C ... +80 °C |
| Mass m (kg/m) [kg/m] | 7.8 |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n• T‒ 4 mm |
| Maximum operating temperature [°C] | +80 |
| Minimum operating temperature [°C] | -20 |
| Pitch T guide rail [mm] | 125 |

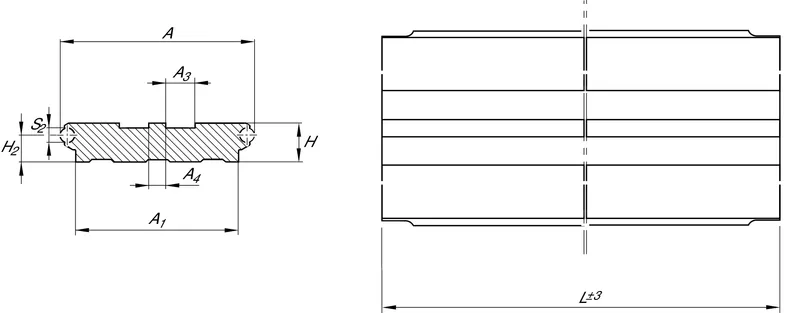

| Dimension A (profiled rail systems) [mm] | 120 |
| Dimension A1 (profiled rail systems) [mm] | 100 |
| Dimension A2 (profiled rail systems) [mm] | 68 |
| Dimension A3 (profiled rail systems) [mm] | 18 |
| Dimension A4 (profiled rail system) [mm] | 10 |
| Dimension D [mm] | 20 |
| Dimension 2nd grade area moment, y-axis ly [mm⁴] | 119636 |
| Dimension 2nd grade area moment, z-axis lz [mm⁴] | 2378777 |
| Dimension H [mm] | 25.0 |
| Dimension H1 (profiled rail systems) [mm] | 10 |
| Dimension H2 (profiled rail systems) [mm] | 16.1 |
| Dimension L [mm] | 3500 |
| Dimension S1 (profiled rail systems) [mm] | 11 |
| Dimension S2 [mm] | 10 |
| Dimension S2 (profiled rail systems) | 10 mm |
| Dimension T [mm] | 125 |
| Dimension T1.2 [mm] | 13 |
| Dimension section modulus, y-axis Wy [mm³] | 2099 |
| Dimension section modulus, z-axis Wz [mm³] | 41733 |
| Footnote Dimension L | Up to 3500 mm, the guideways are made from one-piece precision steel shafts |
