Bosch Rexroth R192545231
CAM ROLLER RAIL 52-4 H &
- MPN
- R192545231
- Category
- Cam roller guide rails
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R192545231?
The cam roller guide rail is characterized by the following product features:
Size 52
Format HNS: Width = half, length = standard, height = standard
Guide rails made of aluminum with secured shafts made of corrosion-resistant steel
Fastener MA: Bolting from above
Cover 00: Without cover
Four times the number of bores
Number of partial sections: one-piece
Rail in standard version
For mounting from above

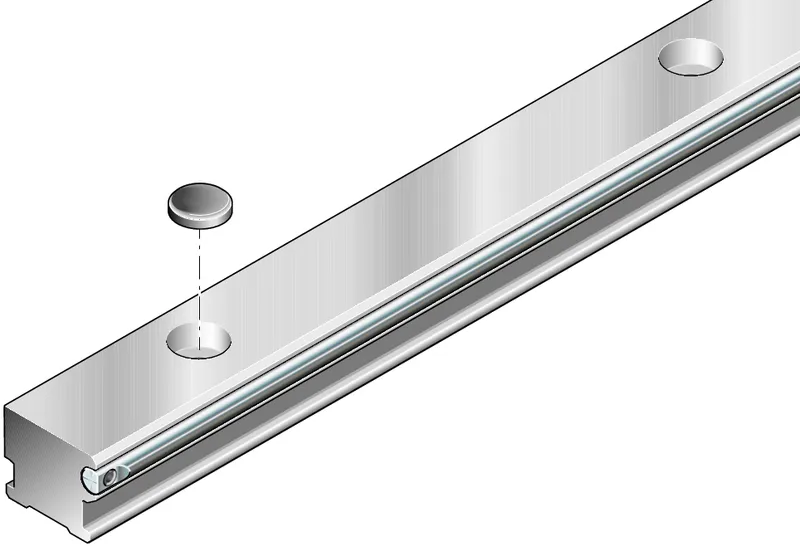

Optional mounting hole plugs
With secured shafts made of corrosion-resistant steel according to DIN EN ISO 683-17 / EN 10088
Specifications
Specifications
| Version | Cam roller guide |
| Nominal size [mm] | 52-4 |
| Material (profiled rail systems) | Aluminum profile and corrosion-resistant steel shafts |
| Guide rail mounting | For bolting from above |
| Note: maximum length Lmax | Guide tracks up to 3500 mm are made of one-piece precision steel shafts. |
| Operating temperature (min. … max.) | -20 °C ... +80 °C |
| Mass m (kg/m) [kg/m] | 3.5 |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n• T‒ 4 mm |
| Maximum operating temperature [°C] | +80 |
| Minimum operating temperature [°C] | -20 |
| Pitch T guide rail [mm] | 62.5 |

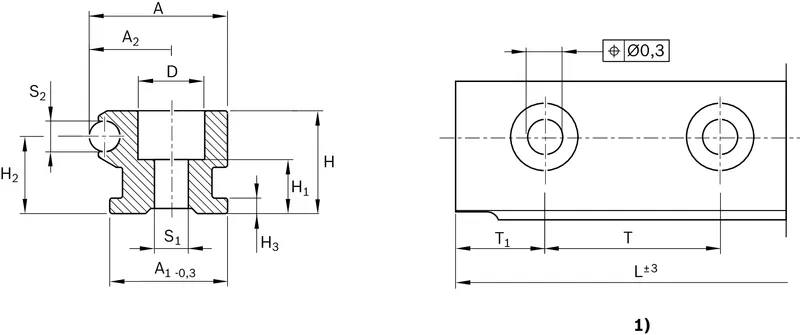

| Dimension A (profiled rail systems) [mm] | 42 |
| Dimension A1 (profiled rail systems) [mm] | 36 |
| Dimension A2 (profiled rail systems) [mm] | 26 |
| Dimension D [mm] | 24 |
| Dimension 2nd grade area moment, y-axis ly [mm⁴] | 105926 |
| Dimension 2nd grade area moment, z-axis lz [mm⁴] | 111856 |
| Dimension H [mm] | 34.0 |
| Dimension H1 (profiled rail systems) [mm] | 17 |
| Dimension H2 (profiled rail systems) [mm] | 25.1 |
| Dimension L [mm] | 3500 |
| Dimension S1 (profiled rail systems) [mm] | 13 |
| Dimension S2 [mm] | 10 |
| Dimension T [mm] | 62.5 |
| Dimension T1 min [mm] | 20 |
| Dimension T1 s (profiled rail systems) [mm] | 29.25 |
| Dimension section modulus, y-axis Wy [mm³] | 5985 |
| Dimension section modulus, z-axis Wz [mm³] | 5251 |
| Footnote Dimension L | Up to 3500 mm, the guideways are made from one-piece precision steel shafts |
