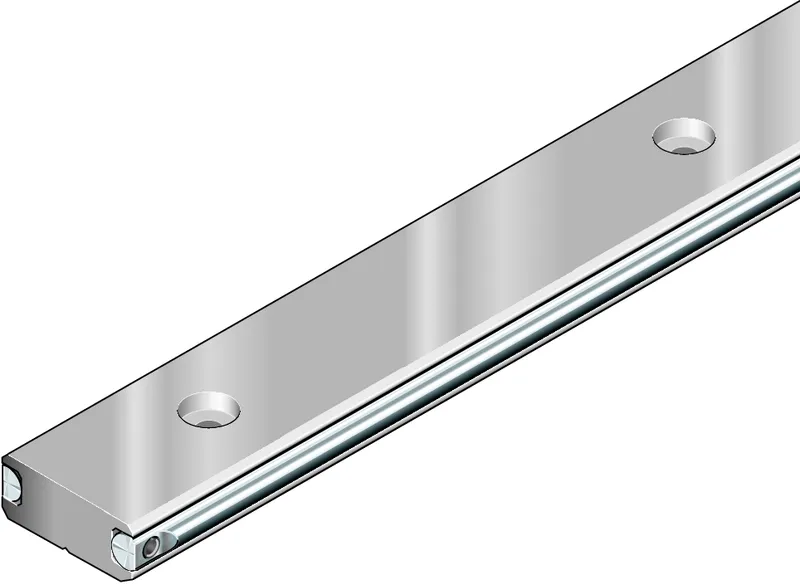

Bosch Rexroth R192423231

CAM ROLLER RAIL 32-2 F &

MPN: R192423231
Category: Cam roller guide rails

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R192423231?

The cam roller guide rail is characterized by the following product features:

Size 32

Format SNN: Width = slimline, length = normal, height = low

Guide rails made of aluminum with secured shafts made of corrosion-resistant steel

Fastener MA: Bolting from above

Cover 00: Without cover

Double the number of holes

Number of partial sections: one-piece

Rail in standard version

With secured shafts made of corrosion-resistant steel according to DIN EN ISO 683-17 / EN 10088

Specifications

Version	Cam roller guide
Nominal size [mm]	32-2
Guide rail mounting	For bolting from above
Note: maximum length Lmax	Guide tracks up to 3500 mm are made of one-piece precision steel shafts.
Operating temperature (min. … max.)	-20 °C ... +80 °C
Mass m (kg/m) [kg/m]	1.1
Weight [kg]	0
Recommended rail length (formula)	L = n• T‒ 4 mm
Maximum operating temperature [°C]	+80
Minimum operating temperature [°C]	-20
Pitch T guide rail [mm]	62.5

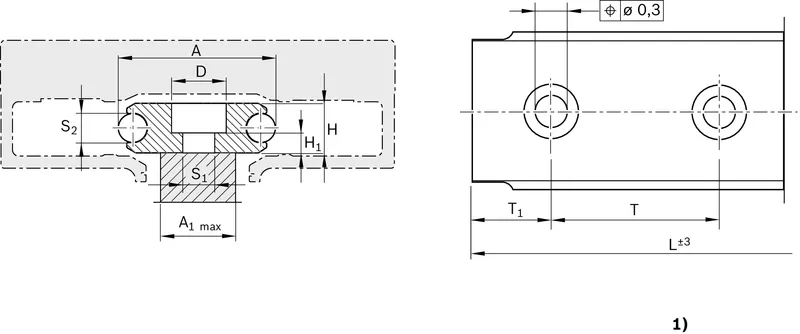

Dimension A (profiled rail systems) [mm]	32
Dimension A1 max (profiled rail system) [mm]	19
Dimension D [mm]	11
Dimension 2nd grade area moment, y-axis ly [mm⁴]	2163
Dimension 2nd grade area moment, z-axis lz [mm⁴]	11412
Dimension H [mm]	10.0
Dimension H1 (profiled rail systems) [mm]	3.5
Dimension H2 (profiled rail systems) [mm]	5
Dimension L [mm]	3500
Dimension S1 (profiled rail systems) [mm]	6.5
Dimension S2 [mm]	6
Dimension T [mm]	62.5
Dimension T1 min [mm]	13
Dimension T1 s (profiled rail systems) [mm]	29.25
Dimension section modulus, y-axis Wy [mm³]	433
Dimension section modulus, z-axis Wz [mm³]	804
Footnote Dimension L	Up to 3500 mm, the guideways are made from one-piece precision steel shafts
