ROLLER 52 &
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for cam roller guides |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R190015201 be shipped?
R190015201 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R190015201 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R190015201 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R190015201, subject to availability and destination.

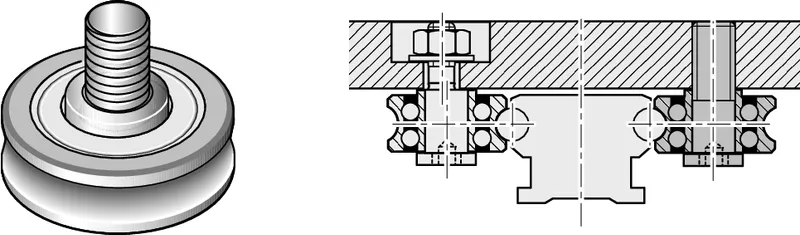

The cam roller is characterized by the following product features:<br>Size 52<br>Format: Cam roller with central journal<br>Cam roller made of carbon steel CS<br>Standard load carrying capacity<br>Accuracy class E: Economic<br>Without preservation<br>Without initial lubrication<br>Without attachment element, left (front reference edge)<br>Without attachment element, right (front reference edge)<br>No lube connection attached<br>Standard version<br>Overall length of the runner block = 51.3<br>Interchangeable element For mounting customer-built table parts, with central and eccentric spigots for zero-clearance adjustment to the guide rail. For applications where the versatile standard range does not offer the optimum solution to your specific problem.

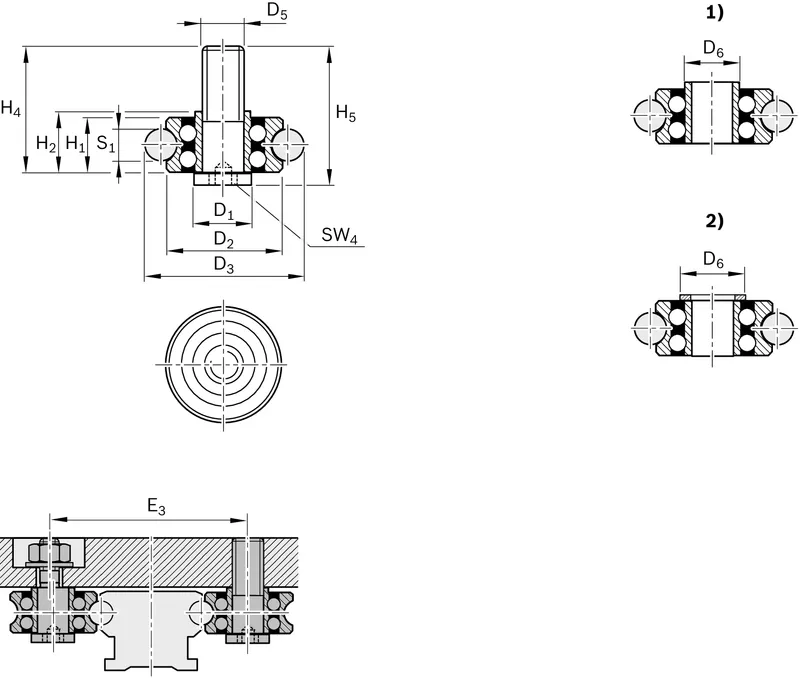

Specifications
Specifications
| Accessories for | Runner block |
| Nominal size [mm] | 52 |
| Maximum dynamic load in y-direction Fy max [N] | 2500 |
| Weight [kg] | 0.11 |
| Maximum dynamic load in z-direction Fz max [N] | 700 |
| Dimension D1 g6 [mm] | 20 |
| Dimension D2 [mm] | 35 |
| Dimension D3 [mm] | 51.3 |
| Dimension D6 [mm] | 19 |
| Dimension E3 (profiled rail systems) [mm] | 83.3 |
| Dimension E3 tolerance [mm] | ±0.2 |
| Dimension H1 (profiled rail systems) [mm] | 15.9 |
| Dimension H2 (profiled rail systems) [mm] | 17.9 |
| Dimension H4 [mm] | 36.5 |
| Dimension H5 [mm] | 41.5 |
| Dimension S1 (profiled rail systems) [mm] | 10 |
| Dimension SW4 [mm] | 8 |
