Bosch Rexroth R186323360
ROLLER RUNNER BLOCK RESIST CR RWA-100-FLS-C3-H-2
- MPN
- R186323360
- Category
- Roller runner blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

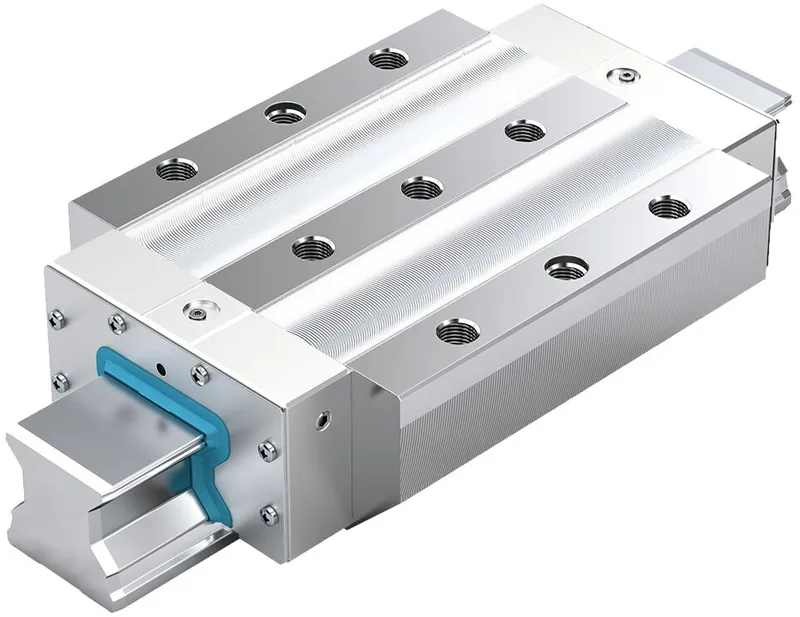

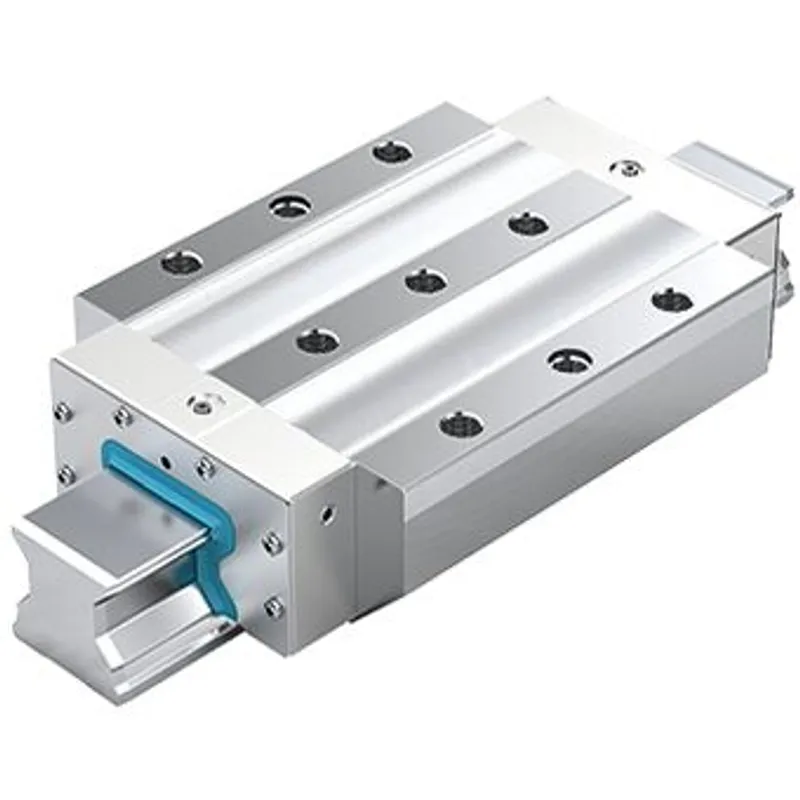

What is the Bosch Rexroth R186323360?
The roller runner block is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features:
Size 100
Format FLS: Width = flange, length = long, height = standard
Runner block body made of unalloyed steel CS, matte-silver, hard chrome plated
Preload class C3: High preload
Accuracy class H: High
Without roller chain
Preserved
Without initial lubrication
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
Straight lube connection loosely attached.
Runner block body in standard version
Overall length of the runner block = 386.5 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Heavy-Duty Roller Runner Block for heavy machine construction with extremely high load capacity
Maximum rigidity in all load directions
Improved rigidity under lift-off and side loading conditions due to three additional mounting screw holes at the center of the Roller Runner Block
High torque load capacity
Limitless interchangeability and any number of combination options thanks to uniform Roller Guide Rails in different versions across all Roller Runner Block variants
Attachments on the Roller Runner Block can be mounted from above and below
Lube nipples possible on all sides for easy maintenance
Minimum lubrication quantities thanks to innovative channel design
Smooth, quiet running thanks to optimally designed return and guideways of the rollers
Minimal variation in elastic deflection thanks to optimized entry-zone geometry and high number of rollers
Aluminum end caps (size 125) and/or plastic (size 100)
Integrated front seals are included as standard for improved sealing of all running tracks and to protect the plastic parts
Specifications
Specifications
| Version | Roller rail systems |
| Nominal size [mm] | 100 |
| Format | FLS - flange, long, standard height |
| Model | Heavy-duty roller runner block |
| Material (profiled rail systems) | Hard chrome plated |
| Preload class | C3 - High preload |
| Accuracy class | H - Highly accurate |
| Seal | SS - Standard seal |
| Width of runner block [mm] | 250.0 |
| Length of runner block [mm] | 380.5 |
| Height of runner block [mm] | 105.0 |
| Height runner block with guide rail [mm] | 120.0 |
| Lubrication | Preserved |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Note: Max. acceleration amax | Requirement: There must be preload, even during operation under load. |
| Maximum permissible linear speed vmax [m/s] | 2.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for a short time. For operation at lower minus temperatures, please consult us. |
| Friction coefficient μ | 0.0004 ... 0.001 |
| Note: friction coefficient μ | Without friction of seal |
| Weight [kg] | 42 |
| Dynamic load capacity C50 [N] | 777000.0 |
| Note: dynamic load capacity C50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic load capacity C100 [N] | 632000.0 |
| Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static load capacity C0 [N] | 1218000.0 |
| Dynamic torsional moment load capacity Mt50 [Nm] | 43400.0 |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic torsional moment load capacity Mt100 [Nm] | 35300.0 |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static torsional moment load capacity Mt0 [Nm] | 71200 |
| Dynamic longitudinal moment load capacity ML50 [Nm] | 33500.0 |
| Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic longitudinal moment load capacity ML100 [Nm] | 27200.0 |
| Note: Dynamic longitudinal moment load capacity ML100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static longitudinal moment load capacity ML0 [Nm] | 52400 |
| Footnote friction force FR | Guideline value for frictional drags of the complete, sealed and lubricated roller runner blocks. The friction is approx. 50% higher immediately after lubrication. |

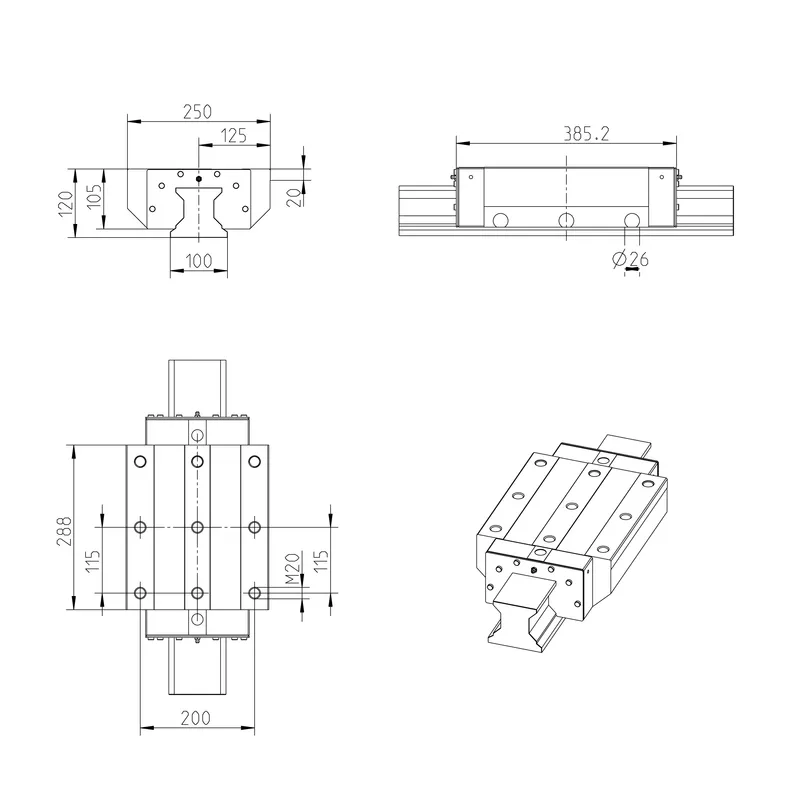

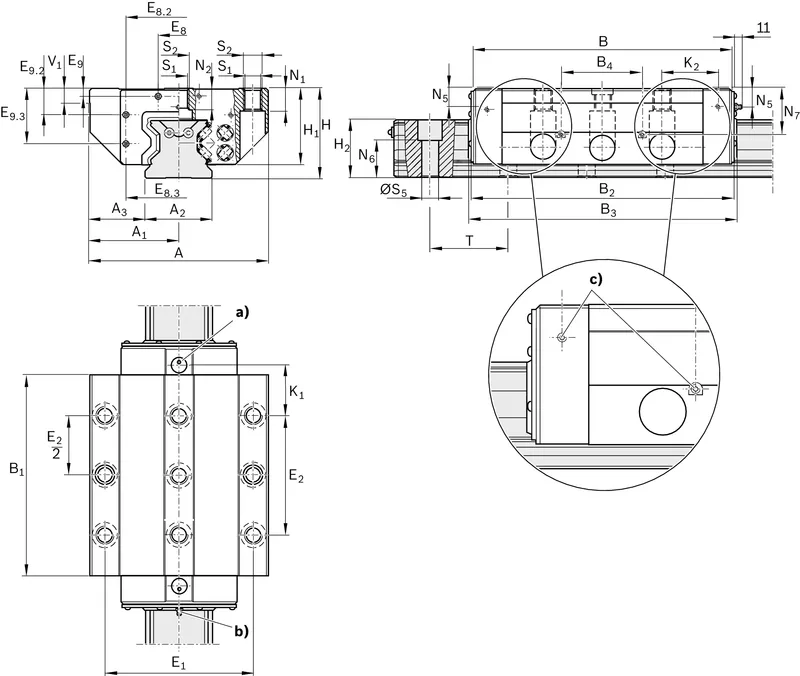

| Pitch T guide rail [mm] | 105 |
| Dimension A (profiled rail systems) [mm] | 250 |
| Dimension A1 (profiled rail systems) [mm] | 125 |
| Dimension A2 (profiled rail systems) [mm] | 100 |
| Dimension A3 (profiled rail systems) [mm] | 75 |
| Dimension B (profiled rail systems) [mm] | 380.5 |
| Dimension B1 [mm] | 288 |
| Dimension B2 (profiled rail systems) [mm] | 385.5 |
| Dimension B3 [mm] | 393.5 |
| Dimension diameter S5 (profiled rail systems) | 26 |
| Dimension E1 [mm] | 200 |
| Dimension E2 (profiled rail systems) [mm] | 230 |
| Dimension E8 (profiled rail systems) [mm] | 64 |
| Dimension E9 (profiled rail systems) [mm] | 9 |
| Dimension H [mm] | 120.0 |
| Dimension H1 (profiled rail systems) [mm] | 105 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 87.3 |
| Dimension K1 (profiled rail systems) [mm] | 46 |
| Dimension K2 (profiled rail systems) [mm] | 51.9 |
| Dimension N1 (profiled rail systems) [mm] | 30 |
| Dimension N2 (profiled rail systems) [mm] | 22 |
| Dimension N5 (profiled rail systems) [mm] | 17.5 |
| Dimension N6 (profiled rail systems) [mm] | 55 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S1 thread diameter (profiled rail systems) [mm] | 17.5 |
| Dimension S2 (profiled rail systems) | M20 |
| Dimension T1 min [mm] | 35 |
| Dimension V1 [mm] | 20 |
| Note of Dimension T | Dimension T = Rail separation of the roller guide rail |
