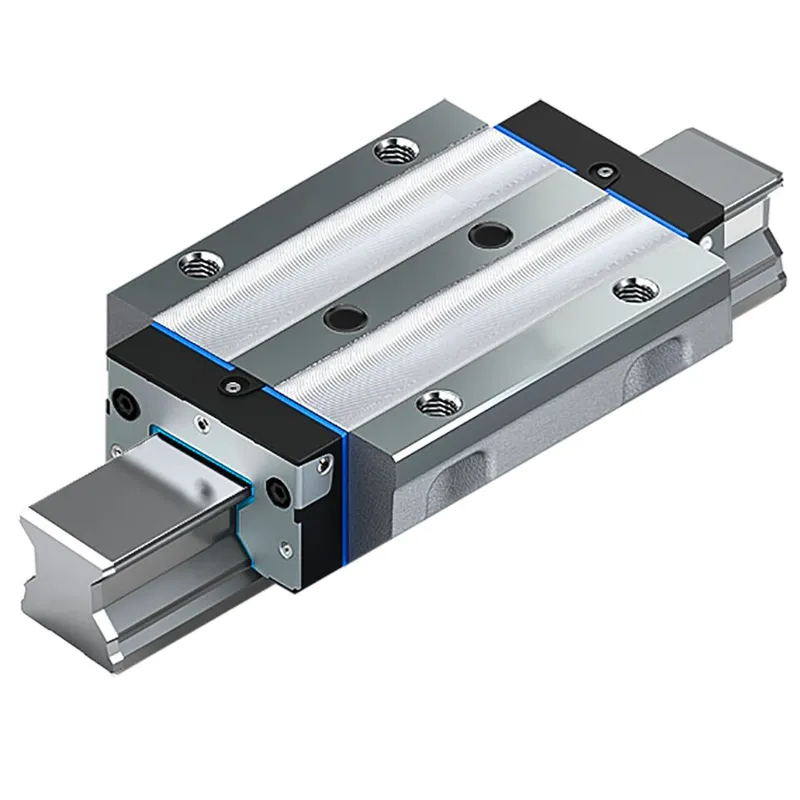

ROLLER RUNNER BLOCK CARBON STEEL RWD-055-FLS-C1-H-2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Roller runner blocks |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R18535132X be shipped?
R18535132X is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R18535132X in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R18535132X and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R18535132X, subject to availability and destination.
The roller runner block is highly precise and characterized by the following product features:<br>Size 55<br>Format FLS: Width = flange, length = long, height = standard<br>Runner block body made of unalloyed steel CS<br>Preload class C1: Low preload<br>Accuracy class H: High<br>Without roller chain<br>Preserved<br>Without initial lubrication<br>Without attachment element, left (front reference edge)<br>Without attachment element, right (front reference edge)<br>Straight lube connection loosely attached.<br>Runner block body in standard version<br>Overall length of the runner block = 209.7 mm<br>Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Specifications
Specifications
| Nominal size [mm] | 55 |
| Format | FLS - flange, long, standard height |
| Model | High-precision roller runner block |
| Material (profiled rail systems) | Carbon steel |
| Preload class | C1 - Low preload |
| Accuracy class | H - Highly accurate |
| Width of runner block [mm] | 140.0 |
| Length of runner block [mm] | 209.65 |
| Height of runner block [mm] | 58.0 |
| Height runner block with guide rail [mm] | 70.0 |
| Lubrication | Preserved |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Note: Max. acceleration amax | Requirement: There must be preload, even during operation under load. |
| Maximum permissible linear speed vmax [m/s] | 4.0 |
| Note: permissible ambient temperature (min. ... max.) | 100 °C admissible for short time. For operation at lower minus temperatures, please consult us. |
| Friction coefficient μ | 0.0004 ... 0.001 |
| Note: friction coefficient μ | Without friction of seal |
| Weight [kg] | 7.35 |
| Dynamic load capacity C50 [N] | 214000.0 |
| Note: dynamic load capacity C50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic load capacity C100 [N] | 174000.0 |
| Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static load capacity C0 [N] | 374900.0 |
| Dynamic torsional moment load capacity Mt50 [Nm] | 6270.0 |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic torsional moment load capacity Mt100 [Nm] | 5100.0 |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static torsional moment load capacity Mt0 [Nm] | 10990 |
| Dynamic longitudinal moment load capacity ML50 [Nm] | 5440.0 |
| Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic longitudinal moment load capacity ML100 [Nm] | 4420.0 |
| Note: Dynamic longitudinal moment load capacity ML100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static longitudinal moment load capacity ML0 [Nm] | 9520 |
| Footnote friction force FR | Guideline value for frictional drags of the complete, sealed and lubricated roller runner blocks. |
| Pitch T guide rail [mm] | 60 |

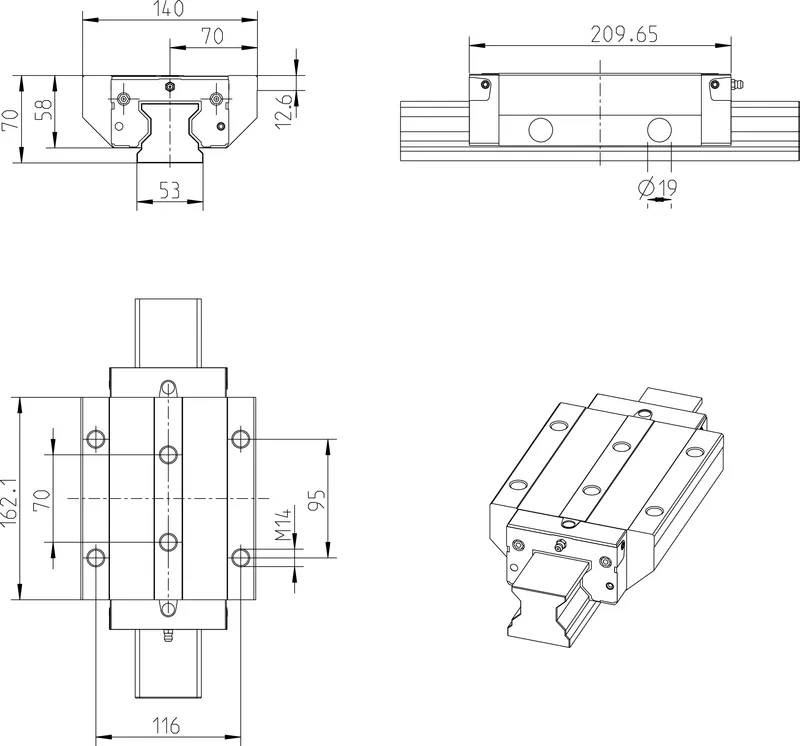

| Dimension A (profiled rail systems) [mm] | 140 |
| Dimension A1 (profiled rail systems) [mm] | 70 |
| Dimension A2 (profiled rail systems) [mm] | 53 |
| Dimension A3 (profiled rail systems) [mm] | 43.5 |
| Dimension B (profiled rail systems) [mm] | 209.65 |
| Dimension B1 [mm] | 162.1 |
| Dimension diameter S5 (profiled rail systems) | 16 |
| Dimension E1 [mm] | 116 |
| Dimension E2 (profiled rail systems) [mm] | 95 |
| Dimension E3 (profiled rail systems) [mm] | 70 |
| Dimension E8 (profiled rail systems) [mm] | 74.2 |
| Dimension E9 (profiled rail systems) [mm] | 18.85 |
| Dimension H [mm] | 70.0 |
| Dimension H1 (profiled rail systems) [mm] | 58 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 47.85 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 47.55 |
| Dimension K1 (profiled rail systems) [mm] | 41.25 |
| Dimension K2 (profiled rail systems) [mm] | 44.4 |
| Dimension N1 (profiled rail systems) [mm] | 18 |
| Dimension N2 (profiled rail systems) [mm] | 13.7 |
| Dimension N6 (profiled rail systems) [mm] | 28.7 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S2 (profiled rail systems) | M14 |
| Dimension V1 [mm] | 12.6 |
| Dimension V1 with tolerance (profiled rail systems) | 12,6 mm ±1,2 |
| Dimension V1 tolerance (profiled rail systems) [mm] | ±1.2 |
