Bosch Rexroth R184550342

ROLLER GUIDE RAIL RESIST CR RSA-055-SNS-H-MA-AK

MPN: R184550342
Category: Roller guide rails

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

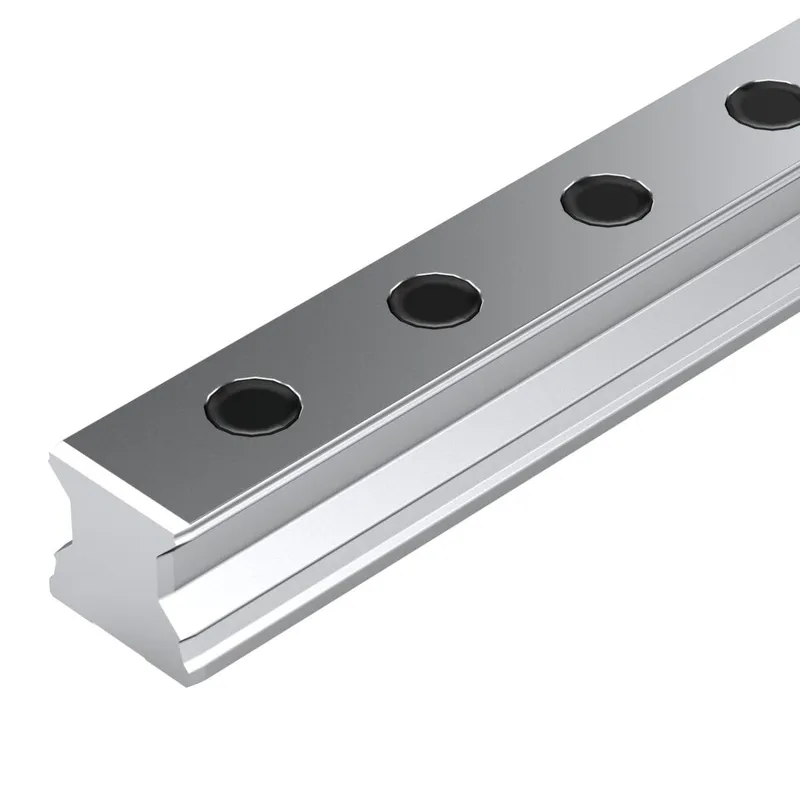

What is the Bosch Rexroth R184550342?

The roller guide rail is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features:

Size 55

Format SNS: Width = slimline, length = normal, height = standard

Guide rail made of carbon steel CS, matte-silver, hard chrome plated

Fastener MA: Bolting from above

Cover AK: Plastic caps

Accuracy class high

Number of partial sections: 2

Rail in standard version

For mounting from above

With plastic mounting hole plugs

Hardened raceways smoothened on all sides

Maximum rigidity in all load directions

Very high torque load capacity

Corrosion-resistant Resist CR coating: matte-silver, hard chrome plated

Corrosion-resistant Roller Runner Blocks and Roller Guide Rails in Resist CR, hard chrome plated, available in accuracy class H. Accuracy classes P and SP available upon request

Specifications

Version	Roller rail systems
Nominal size [mm]	55
Format	SNS - Standard guide rail
Material (profiled rail systems)	Hard chrome plated
Accuracy class	H - Highly accurate
Guide rail mounting	For bolting from above
Guide rail cover	Plastic caps
Max. length Lmax [mm]	3956.0
Minimum length Lmin [mm]	156.0
Number of holes nB (profiled rail systems)	66
Number of sections	2-piece
Mass m (kg/m) [kg/m]	13.1
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100°C admissible for short time. For operation at lower minus temperatures, please consult us.
Weight [kg]	0
Recommended rail length (formula)	L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm

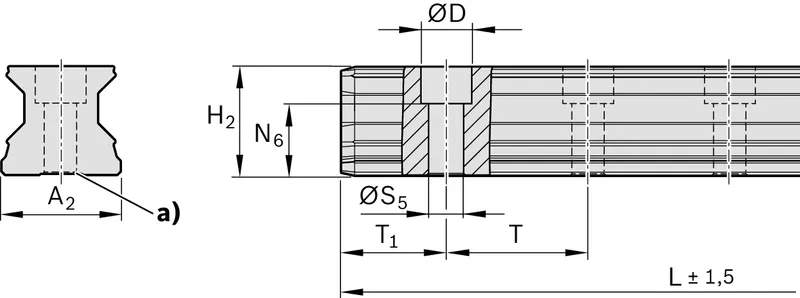

Pitch T guide rail [mm]	60
Dimension A2 (profiled rail systems) [mm]	53
Dimension D [mm]	24
Dimension diameter S5 (profiled rail systems)	16
Dimension H2 without cover strip (profiled rail systems) [mm]	47.55
Dimension N6 (profiled rail systems) [mm]	28.7
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension T [mm]	60
Dimension T1 max (profiled rail systems) [mm]	42
Dimension T1 min [mm]	20
Dimension T1 s (profiled rail systems) [mm]	28
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T<sub>1S</sub> with tolerances ± 0.75
