Bosch Rexroth R184530342
ROLLER GUIDE RAIL RESIST CR RSA-035-SNS-H-MA-AK
- MPN
- R184530342
- Category
- Roller guide rails
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R184530342?

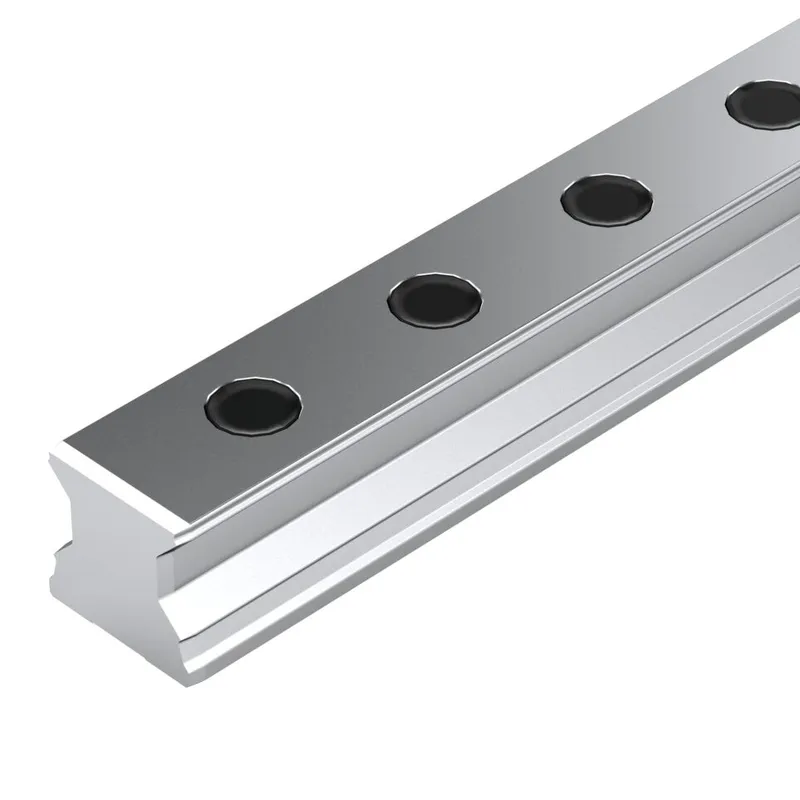

The roller guide rail is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features:
Size 35
Format SNS: Width = slimline, length = normal, height = standard
Guide rail made of carbon steel CS, matte-silver, hard chrome plated
Fastener MA: Bolting from above
Cover AK: Plastic caps
Accuracy class high
Number of partial sections: 2
Rail in standard version
For mounting from above
With plastic mounting hole plugs
Hardened raceways smoothened on all sides
Maximum rigidity in all load directions
Very high torque load capacity
Corrosion-resistant Resist CR coating: matte-silver, hard chrome plated
Corrosion-resistant Roller Runner Blocks and Roller Guide Rails in Resist CR, hard chrome plated, available in accuracy class H. Accuracy classes P and SP available upon request
Specifications
Specifications
| Version | Roller rail systems |
| Nominal size [mm] | 35 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Hard chrome plated |
| Accuracy class | H - Highly accurate |
| Guide rail mounting | For bolting from above |
| Guide rail cover | Plastic caps |
| Max. length Lmax [mm] | 3996.0 |
| Minimum length Lmin [mm] | 104.0 |
| Number of holes nB (profiled rail systems) | 100 |
| Number of sections | 2-piece |
| Mass m (kg/m) [kg/m] | 6.3 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for short time. For operation at lower minus temperatures, please consult us. |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Pitch T guide rail [mm] | 40 |

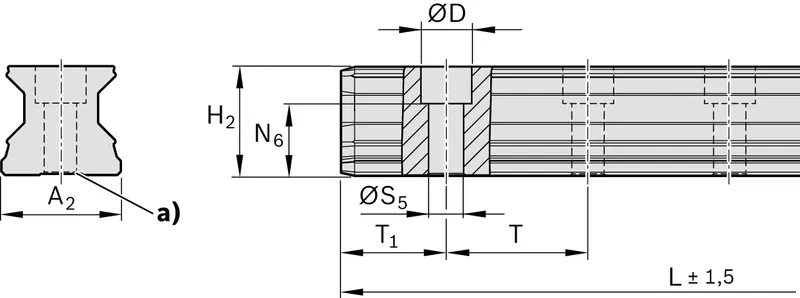

| Dimension A2 (profiled rail systems) [mm] | 34 |
| Dimension D [mm] | 15 |
| Dimension diameter S5 (profiled rail systems) | 9 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 30.8 |
| Dimension N6 (profiled rail systems) [mm] | 19.4 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension T [mm] | 40 |
| Dimension T1 max (profiled rail systems) [mm] | 28 |
| Dimension T1 min [mm] | 16 |
| Dimension T1 s (profiled rail systems) [mm] | 18 |
| Footnote of dimension T1 s (profiled rail systems) | Preferred dimension T<sub>1S</sub> with tolerances ± 0.75 |
