SCRAPER PLATE 45 BG
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for roller rail systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R182041030 be shipped?
R182041030 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R182041030 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R182041030 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R182041030, subject to availability and destination.

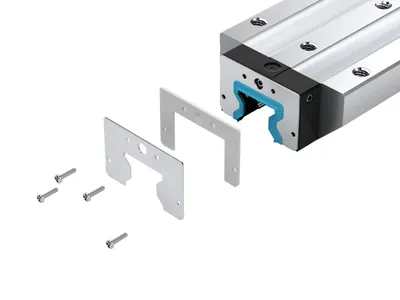

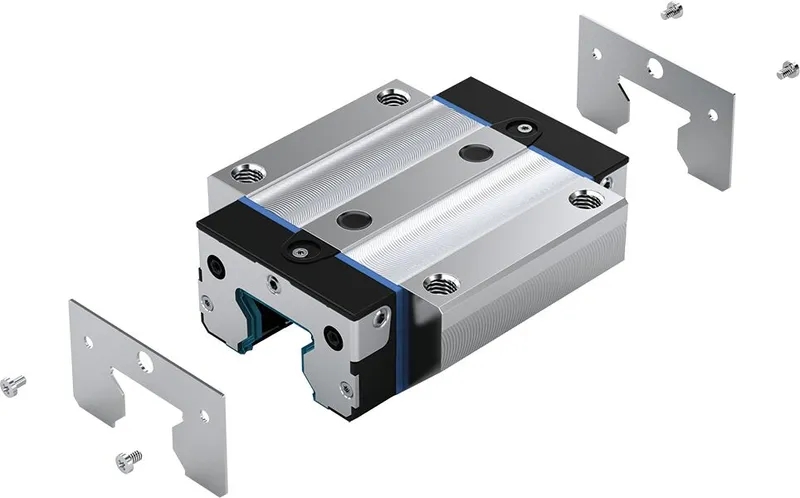

Cover plate wiper for roller rail systems RSHP
Size = 45
For mounting on roller runner blocks for all roller guide rails
Material: Rust-free spring steel in as per DIN EN 10088
Design: bright

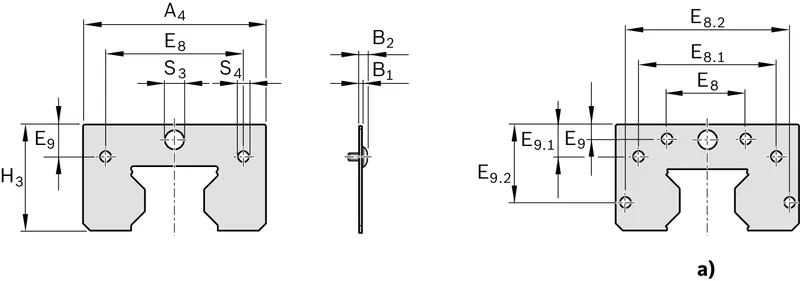

Specifications
Specifications
| Accessories for | Runner block |
| Nominal size [mm] | 45 |
| Mass m (g) [g] | 44.0 |
| Weight [kg] | 0.06 |
| Dimension A4 (profiled rail system) [mm] | 80.4 |
| Dimension B1 [mm] | 2 |
| Dimension B2 (profiled rail systems) [mm] | 5.1 |
| Dimension diameter S3 (profiled rail systems) [mm] | 7 |
| Dimension diameter S4 (profiled rail systems) [mm] | 5 |
| Dimension E8 (profiled rail systems) [mm] | 62.9 |
| Dimension E9 (profiled rail systems) [mm] | 15.7 |
| Dimension H3 [mm] | 49.7 |
