What is the Bosch Rexroth R181054260?

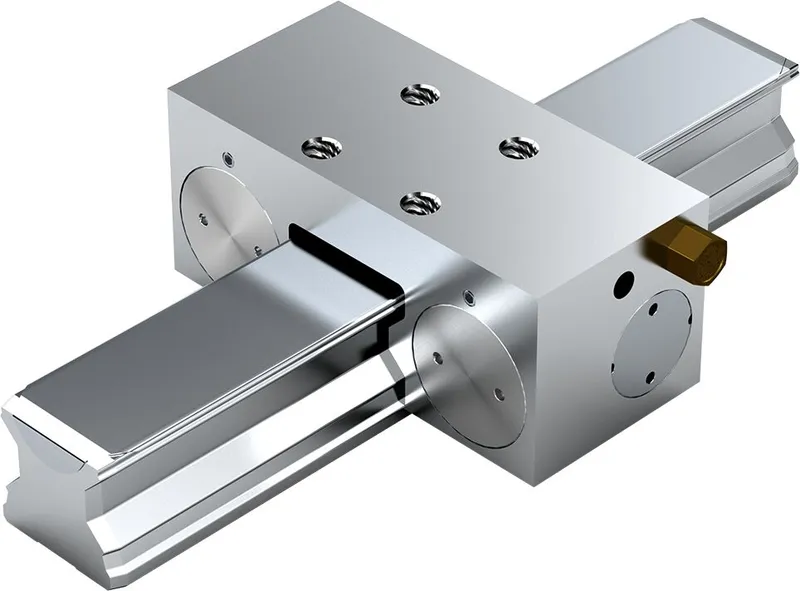

Pneumatic clamping unit MK *) for roller rail systems

Size = 55

Can be used on all SNS roller guide rails

*) Zimmer GmbH

High axial holding forces with short format

Dynamic and static stabilization in the axial direction

Easy mounting

Clamps with compression (pneumatic) The clamping profiles are pressed by compressed air via a dual acting gate valve gear mechanism.

Chemically nickel-plated steel housing

High axial and horizontal rigidity

Precise positioning

Continuously adjustable pressure from 4 - 8 bar

Can be used on all SNS roller guide rails

5 million clamping cycles (B10d value) – the B10d value is not attained with the PLUS connection

Short decompression cycles

Specifications

Accessories for	Runner block
Nominal size [mm]	55
Note: spring energy holding force with standard air port	Holding force by spring energy at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
Permissible ambient temperature (min. ... max.)	0 °C ... +70 °C
Weight [kg]	1.93
Air consumption (normal liter) standard air port [dm³/stroke]	0.041

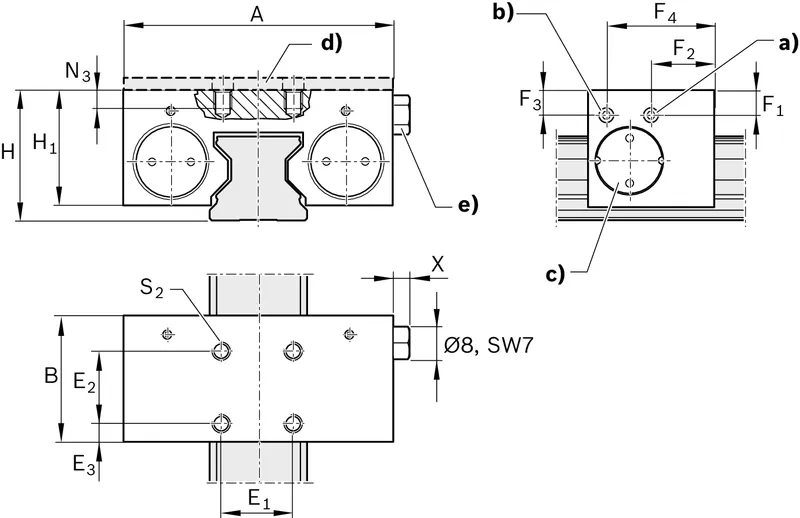

Dimension A (profiled rail systems) [mm]	128
Dimension B (profiled rail systems) [mm]	49
Dimension E1 [mm]	30
Dimension E2 (profiled rail systems) [mm]	30
Dimension E3 (profiled rail systems) [mm]	9.5
Dimension F1 [mm]	17
Dimension F2 [mm]	19.5
Dimension H [mm]	70.0
Dimension H1 (profiled rail systems) [mm]	57
Dimension N3 (profiled rail systems) [mm]	15
Dimension S2 thread diameter (profiled rail systems) [mm]	M10
Dimension X (profiled rail systems) [mm]	5.5
Footnote Dimension H1	For roller runner block .H. (...High...) Spacer plate necessary.
