Bosch Rexroth R181024051

BRAKING ELEMENT UBPS 2505 BS1A &

MPN: R181024051
Category: Accessories for roller rail systems

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

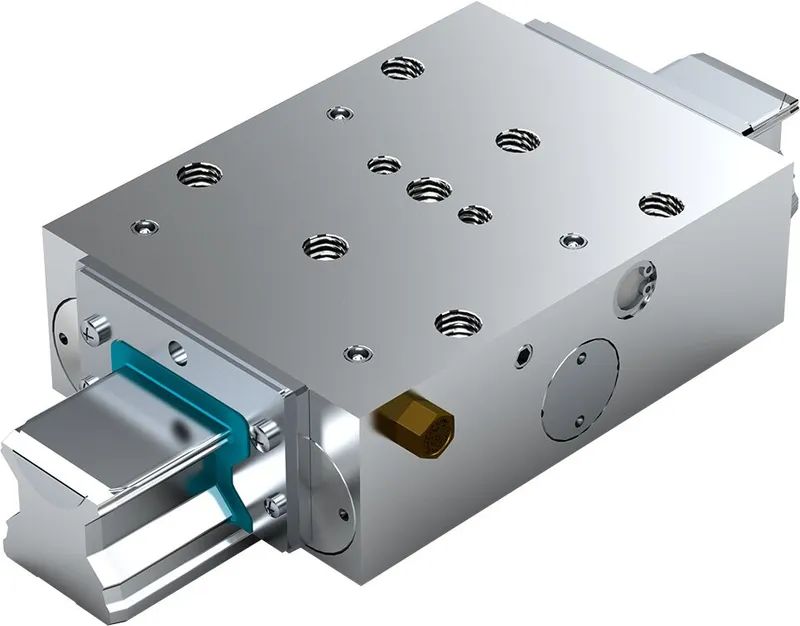

What is the Bosch Rexroth R181024051?

Pneumatic braking unit UBPS *) , FLS for roller rail systems

Size = 25

Can be used on all SNS roller guide rails

*) Zimmer GmbH

Clamps and brakes with spring energy accumulator

Positive-locking integrated contact profiles ensure maximum axial and horizontal rigidity, and thus an excellent braking effect

Dynamic and static stabilization in the axial direction

Clamps and brakes without pressurization (spring energy)

Compact design, compatible with DIN 645

Up to 1 million clamping cycles

Up to 2,000 emergency braking operations

Integrated all-round sealing

High continuous output

High positioning accuracy

Mechanical gate valve gear mechanism

Solid, rigid steel housing, chemically nickel-plated

Extremely low air consumption

Maintenance-free

5 million clamping cycles (B10d value) – the B10d value is not attained with the PLUS connection

Can be used on all SNS roller guide rails

Very high axial holding forces of up to 7700 N at 5.5 bar release pressure with high-power spring energy accumulator

Increased holding force of up to 9,200 N thanks to additional pressurization on the air-plus port

Specifications

Accessories for	Runner block
Nominal size [mm]	25
Note: spring energy holding force with standard air port	Holding force achieved by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
Permissible ambient temperature (min. ... max.)	0 °C ... +70 °C
Weight [kg]	1.08
Footnote for spring energy holding force with air-plus port	Increased holding force by additional air admission at air-plus port with 6.0 bar. Switching via 5/2 or 5/3-way directional control valve.
Air consumption (normal liter) standard air port [dm³/stroke]	0.08

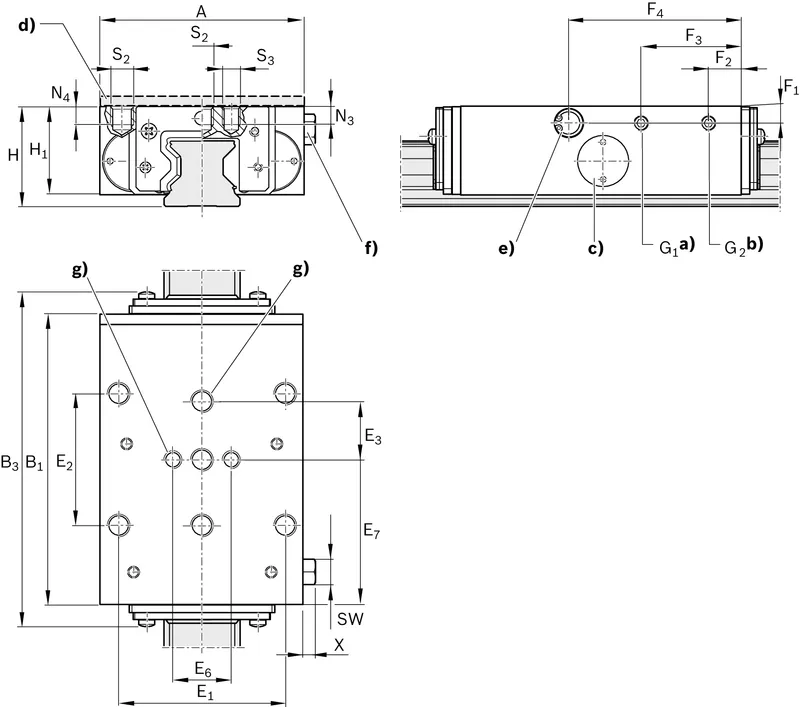

Dimension A (profiled rail systems) [mm]	70
Dimension B1 [mm]	99
Dimension E1 [mm]	57
Dimension E2 (profiled rail systems) [mm]	45
Dimension E3 (profiled rail systems) [mm]	20
Dimension E6 [mm]	20
Dimension F1 [mm]	6.5
Dimension F2 [mm]	11
Dimension H [mm]	36.0
Dimension H1 (profiled rail systems) [mm]	31
Dimension N3 (profiled rail systems) [mm]	7
Dimension N4 (profiled rail systems) [mm]	7
Dimension S2 thread diameter (profiled rail systems) [mm]	M8
Dimension S3 thread diameter (profiled rail systems)	M6
Dimension X (profiled rail systems) [mm]	5.5
Footnote Dimension H1	For roller runner block .H. (...High...) Spacer plate necessary.
