Bosch Rexroth R180740331

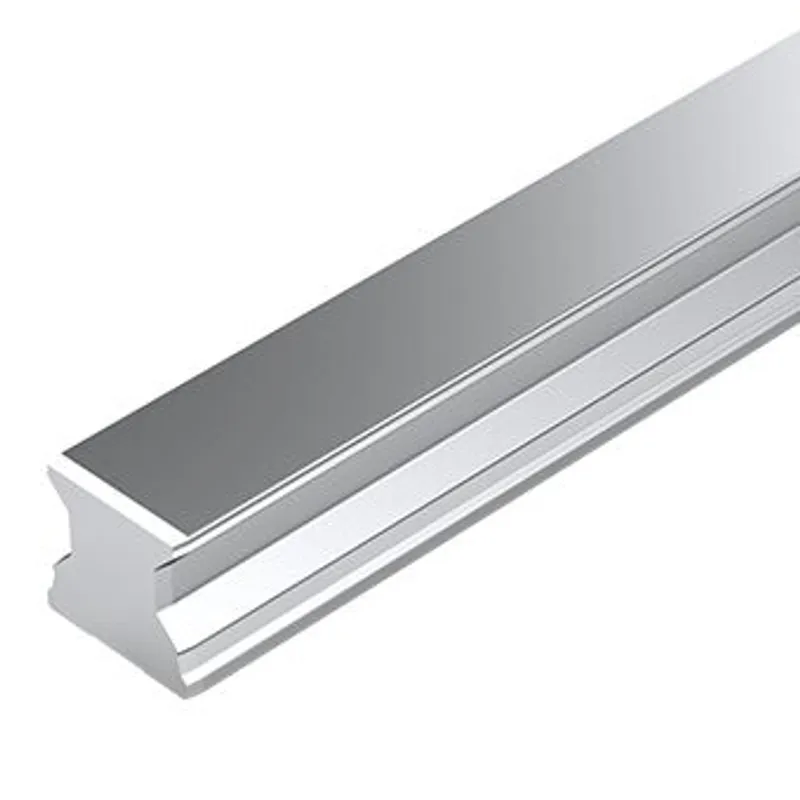

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNS-H-MB-00

MPN: R180740331
Category: Roller guide rails

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R180740331?

The roller guide rail is highly precise and characterized by the following product features:

Size 45

Format SNS: Width = slimline, length = normal, height = standard

Guide rail made of carbon steel CS

Fastener MB: Bolting from below

Cover 00: Without cover

Accuracy class high

Number of partial sections: one-piece

Rail in standard version

For mounting from below

Hardened raceways smoothened on all sides

Maximum rigidity in all load directions

Very high torque load capacity

Specifications

Version	Roller rail systems
Nominal size [mm]	45
Format	SNS - Standard guide rail
Material (profiled rail systems)	Carbon steel
Accuracy class	H - Highly accurate
Guide rail mounting	For bolting from below
Guide rail cover	Without cover strip
Max. length Lmax [mm]	3986.0
Minimum length Lmin [mm]	137.0
Number of holes nB (profiled rail systems)	76
Number of sections	1-piece
Mass m (kg/m) [kg/m]	10.3
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100°C admissible for short time. For operation at lower minus temperatures, please consult us.
Weight [kg]	0
Recommended rail length (formula)	L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Pitch T guide rail [mm]	52.5

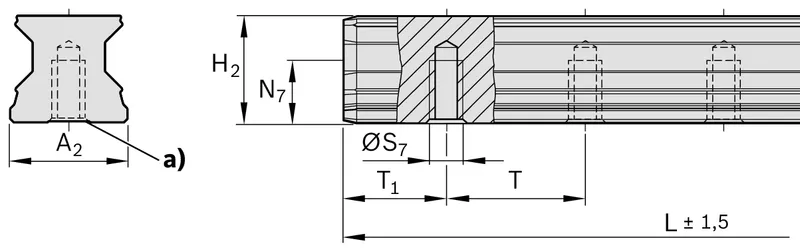

Dimension A2 (profiled rail systems) [mm]	45
Dimension H2 without cover strip (profiled rail systems) [mm]	38.8
Dimension N7 (profiled rail systems) [mm]	19
Dimension S7 thread diameter	M12
Dimension T [mm]	52.5
Dimension T1 max (profiled rail systems) [mm]	36.5
Dimension T1 min [mm]	16
Dimension T1 s (profiled rail systems) [mm]	24.25
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T<sub>1S</sub> with tolerances ± 0.75

R180740331: frequently asked questions

When can R180740331 be shipped?

R180740331 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R180740331 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R180740331 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R180740331, subject to availability and destination.
