Bosch Rexroth R180730331

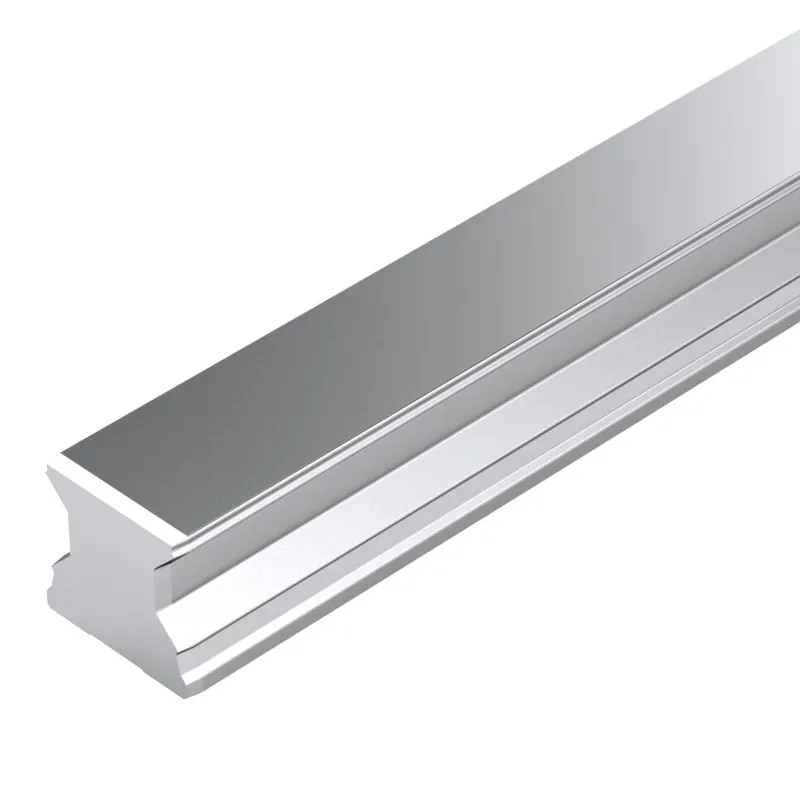

ROLLER GUIDE RAIL CARBON STEEL RSA-035-SNS-H-MB-00

MPN: R180730331
Category: Roller guide rails

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R180730331?

The roller guide rail is highly precise and characterized by the following product features:

Size 35

Format SNS: Width = slimline, length = normal, height = standard

Guide rail made of carbon steel CS

Fastener MB: Bolting from below

Cover 00: Without cover

Accuracy class high

Number of partial sections: one-piece

Rail in standard version

For mounting from below

Hardened raceways smoothened on all sides

Maximum rigidity in all load directions

Very high torque load capacity

Specifications

Version	Roller rail systems
Nominal size [mm]	35
Format	SNS - Standard guide rail
Material (profiled rail systems)	Carbon steel
Accuracy class	H - Highly accurate
Guide rail mounting	For bolting from below
Guide rail cover	Without cover strip
Max. length Lmax [mm]	3996.0
Minimum length Lmin [mm]	104.0
Number of holes nB (profiled rail systems)	100
Number of sections	1-piece
Mass m (kg/m) [kg/m]	6.3
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100°C admissible for short time. For operation at lower minus temperatures, please consult us.
Weight [kg]	0
Recommended rail length (formula)	L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Pitch T guide rail [mm]	40
Dimension A2 (profiled rail systems) [mm]	34
Dimension H2 without cover strip (profiled rail systems) [mm]	30.8
Dimension N7 (profiled rail systems) [mm]	15
Dimension S7 thread diameter	M8
Dimension T [mm]	40
Dimension T1 max (profiled rail systems) [mm]	28
Dimension T1 min [mm]	12
Dimension T1 s (profiled rail systems) [mm]	18
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T<sub>1S</sub> with tolerances ± 0.75
