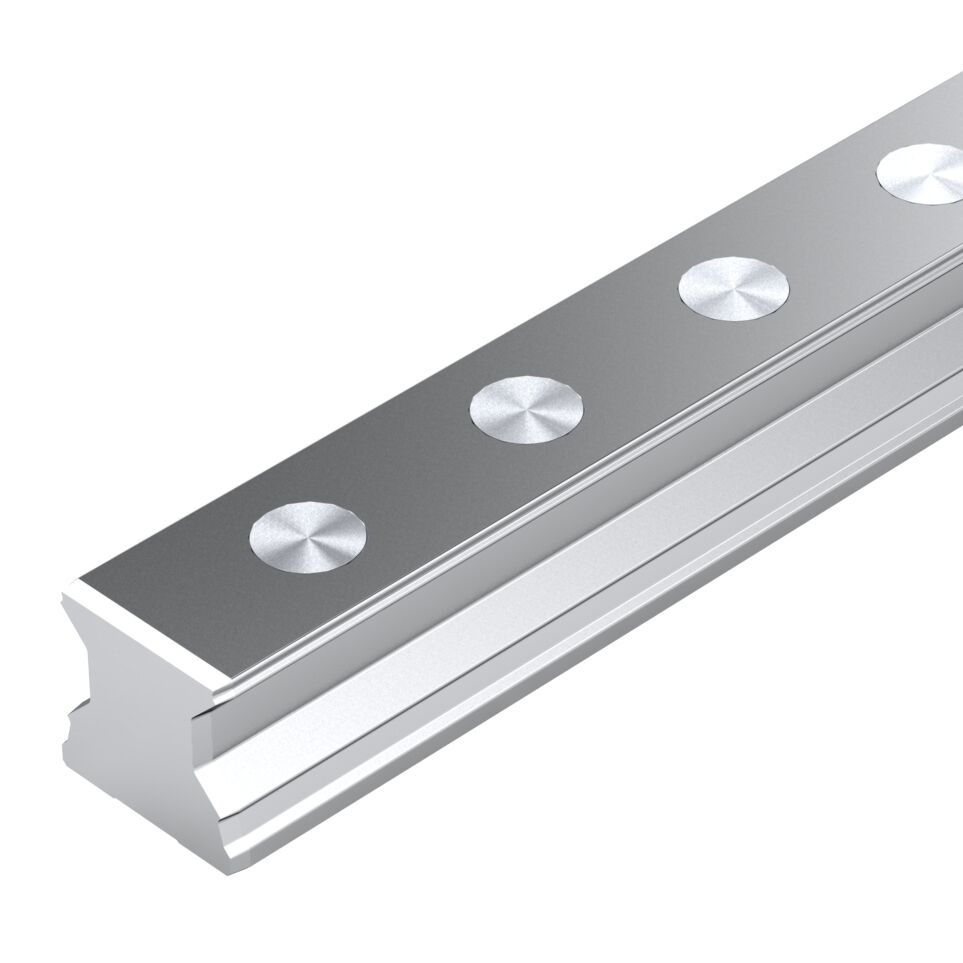

What is the Bosch Rexroth R180635132?

The roller guide rail is highly precise and characterized by the following product features:

Size 35

Format SNS: Width = slimline, length = normal, height = standard

Guide rail made of carbon steel CS

Fastener MA: Bolting from above

Cover SK: Steel caps (must be ordered separately)

Accuracy class super precision

Number of partial sections: 2

Rail in standard version

For mounting from above

Hardened raceways smoothened on all sides

Maximum rigidity in all load directions

Very high torque load capacity

Specifications

Version	Roller rail systems
Nominal size [mm]	35
Format	SNS - Standard guide rail
Material (profiled rail systems)	Carbon steel
Accuracy class	SP - Super precise
Guide rail mounting	For bolting from above
Guide rail cover	With steel caps
Max. length Lmax [mm]	3996.0
Note: Lmax	Available as one piece up to a length of 5996 mm
Minimum length Lmin [mm]	112.0
Number of holes nB (profiled rail systems)	100
Number of sections	2-piece
Mass m (kg/m) [kg/m]	6.3
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100°C admissible for short time. For operation at lower minus temperatures, please consult us.
Weight [kg]	0
Recommended rail length (formula)	L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Pitch T guide rail [mm]	40
Dimension A2 (profiled rail systems) [mm]	34
Dimension D [mm]	15
Dimension D1 [mm]	17.55
Dimension D2 [mm]	18
Dimension diameter S5 (profiled rail systems)	9
Dimension H2 without cover strip (profiled rail systems) [mm]	30.8
Dimension N10 (profiled rail systems) [mm]	3.6
Dimension N11 (profiled rail systems) [mm]	0.9
Dimension N6 (profiled rail systems) [mm]	19.4
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension T [mm]	40
Dimension T1 max (profiled rail systems) [mm]	28
Dimension T1 min [mm]	16
Dimension T1 s (profiled rail systems) [mm]	18
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T<sub>1S</sub> with tolerances ± 0.75
