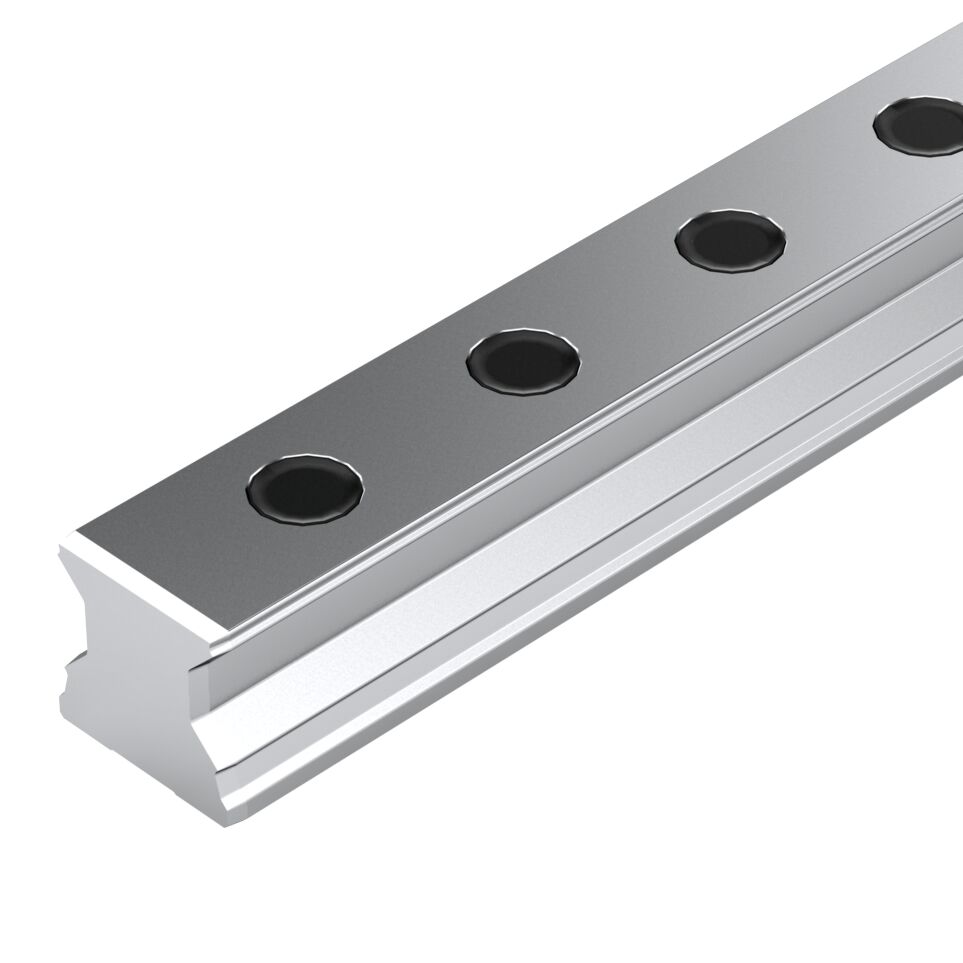

ROLLER GUIDE RAIL CARBON STEEL RSA-055-SNO-U-MA-AK
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Roller guide rails |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R18055C931 be shipped?
R18055C931 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R18055C931 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R18055C931 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R18055C931, subject to availability and destination.
The roller guide rail is highly precise and characterized by the following product features:
Size 55
Format SNO: Width = slimline, length = standard , height = without groove
Guide rail made of carbon steel CS
Fastener MA: Bolting from above
Cover AK: Plastic caps
Accuracy class ultra precision
Number of partial sections: one-piece
Rail in standard version
With smooth base area for mounting surfaces from cast mineral parts
For mounting from above
Available in sizes 35-65 and all accuracy classes
Hardened raceways smoothened on all sides
Maximum rigidity in all load directions
Very high torque load capacity
Specifications
Specifications
| Version | Roller rail systems |
| Nominal size [mm] | 55 |
| Format | SNO - guide rail without base slot |
| Material (profiled rail systems) | Carbon steel |
| Accuracy class | UP - Ultra precise |
| Guide rail mounting | For bolting from above |
| Guide rail cover | Plastic caps |
| Max. length Lmax [mm] | 5936.0 |
| Note: Lmax | Available on request |
| Number of holes nB (profiled rail systems) | 66 |
| Number of sections | 1-piece |
| Mass m (kg/m) [kg/m] | 13.1 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for short time. For operation at lower minus temperatures, please consult us. |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Product information | Available on request. |
| Pitch T guide rail [mm] | 60 |
| Dimension A2 (profiled rail systems) [mm] | 53 |
| Dimension D [mm] | 24 |
| Dimension diameter S5 (profiled rail systems) | 16 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 47.55 |
| Dimension N6 (profiled rail systems) [mm] | 28.7 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension T [mm] | 60 |
| Dimension T1 max (profiled rail systems) [mm] | 42 |
| Dimension T1 min [mm] | 18 |
| Dimension T1 s (profiled rail systems) [mm] | 28 |
| Footnote of dimension T1 s (profiled rail systems) | Preferred dimension T<sub>1S</sub> with tolerances ± 0.75 |
More Bosch Rexroth parts
Available on requestROLLER GUIDE RAIL CARBON STEEL RSA-055-SNO-H-MA-AK
Available on requestROLLER GUIDE RAIL CARBON STEEL RSA-055-SNO-H-MA-AK
Available on requestROLLER GUIDE RAIL CARBON STEEL RSA-055-SNO-G-MA-AK
Available on requestROLLER GUIDE RAIL CARBON STEEL RSA-055-SNO-G-MA-AK
Available on requestROLLER GUIDE RAIL CARBON STEEL RSA-055-SNO-U-MA-AK

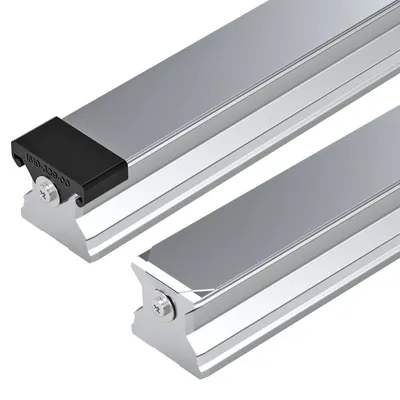

Available on requestROLLER GUIDE RAIL CARBON STEEL RSA-055-SNO-S-MA-AB
