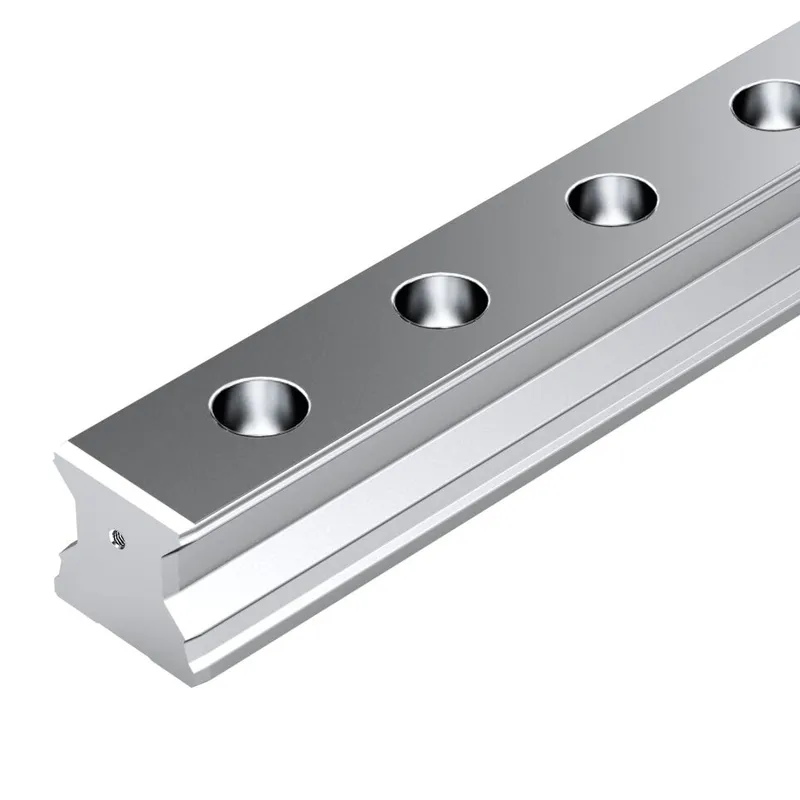

ROLLER GUIDE RAIL CARBON STEEL RSA-045-SNS-P-MA-0T
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Roller guide rails |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R180542232 be shipped?
R180542232 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R180542232 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R180542232 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R180542232, subject to availability and destination.
The roller guide rail is highly precise and characterized by the following product features:
Size 45
Format SNS: Width = slimline, length = normal, height = standard
Guide rail made of carbon steel CS
Fastener MA: Bolting from above
Cover OT: Without cover, with end-face thread
Accuracy class precision
Number of partial sections: 2
Rail in standard version
For mounting from above
Hardened raceways smoothened on all sides
Maximum rigidity in all load directions
Very high torque load capacity
Specifications
Specifications
| Version | Roller rail systems |
| Nominal size [mm] | 45 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Carbon steel |
| Accuracy class | P - Precise |
| Guide rail mounting | For bolting from above |
| Guide rail cover | Without cover strip |
| Max. length Lmax [mm] | 3986.0 |
| Note: Lmax | Available as one piece up to a length of 5981 mm |
| Minimum length Lmin [mm] | 141.0 |
| Number of holes nB (profiled rail systems) | 76 |
| Number of sections | 2-piece |
| Mass m (kg/m) [kg/m] | 10.3 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for short time. For operation at lower minus temperatures, please consult us. |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Pitch T guide rail [mm] | 52.5 |
| Dimension A2 (profiled rail systems) [mm] | 45 |
| Dimension D [mm] | 20 |
| Dimension diameter S5 (profiled rail systems) | 14 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 38.8 |
| Dimension N6 (profiled rail systems) [mm] | 22.4 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension N7 (profiled rail systems) [mm] | 30 |
| Dimension T [mm] | 52.5 |
| Dimension T1 max (profiled rail systems) [mm] | 36.5 |
| Dimension T1 min [mm] | 18 |
| Dimension T1 s (profiled rail systems) [mm] | 24.25 |
| Footnote of dimension T1 s (profiled rail systems) | Preferred dimension T<sub>1S</sub> with tolerances ± 0.75 |
