Bosch Rexroth R180525831

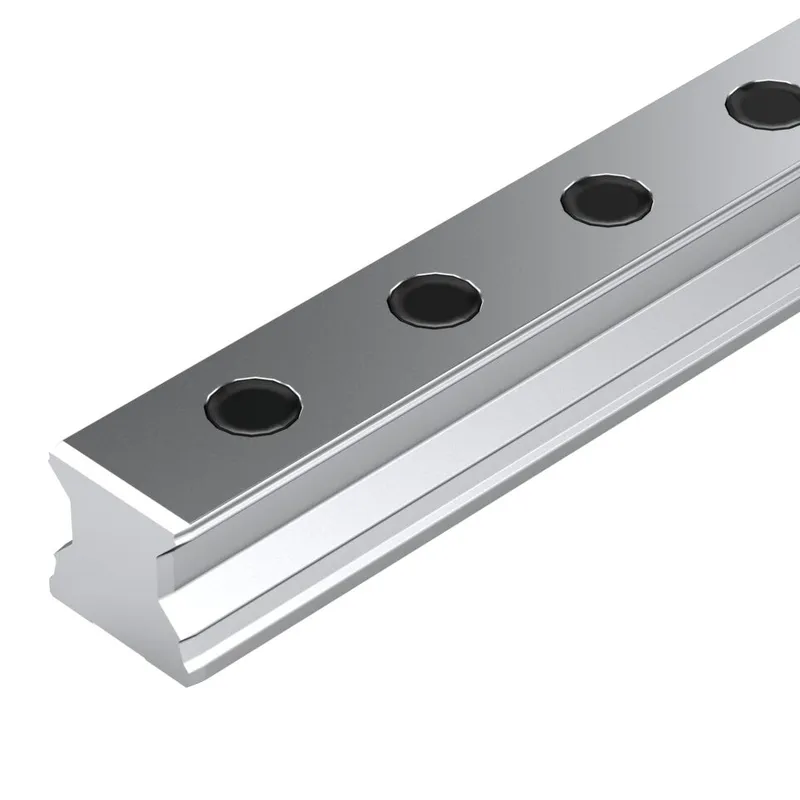

ROLLER GUIDE RAIL CARBON STEEL RSA-025-SNS-G-MA-AK

MPN: R180525831
Category: Roller guide rails

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R180525831?

The roller guide rail is highly precise and characterized by the following product features:

Size 25

Format SNS: Width = slimline, length = normal, height = standard

Guide rail made of carbon steel CS

Fastener MA: Bolting from above

Cover AK: Plastic caps

Accuracy class super precision in pairs

Number of partial sections: one-piece

Rail in standard version

For mounting from above

Hardened raceways smoothened on all sides

Maximum rigidity in all load directions

Very high torque load capacity

Specifications

Version	Roller rail systems
Nominal size [mm]	25
Format	SNS - Standard guide rail
Material (profiled rail systems)	Carbon steel
Accuracy class	GP - In pairs
Guide rail mounting	For bolting from above
Guide rail cover	Plastic caps
Max. length Lmax [mm]	3986.0
Minimum length Lmin [mm]	80.0
Number of holes nB (profiled rail systems)	133
Number of sections	1-piece
Mass m (kg/m) [kg/m]	3.1
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100°C admissible for short time. For operation at lower minus temperatures, please consult us.
Weight [kg]	0
Recommended rail length (formula)	L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Pitch T guide rail [mm]	30
Dimension A2 (profiled rail systems) [mm]	23
Dimension D [mm]	11
Dimension diameter S5 (profiled rail systems)	7
Dimension H2 without cover strip (profiled rail systems) [mm]	23.4
Dimension N6 (profiled rail systems) [mm]	14.3
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension T [mm]	30
Dimension T1 max (profiled rail systems) [mm]	20
Dimension T1 min [mm]	10
Dimension T1 s (profiled rail systems) [mm]	13
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T<sub>1S</sub> with tolerances ± 0.75
