Bosch Rexroth R167635432

BALL GUIDE RAIL CARBON STEEL KSA-035-BNS-N-MA-SK

MPN: R167635432
Category: High precision ball guide rail BSHP

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R167635432?

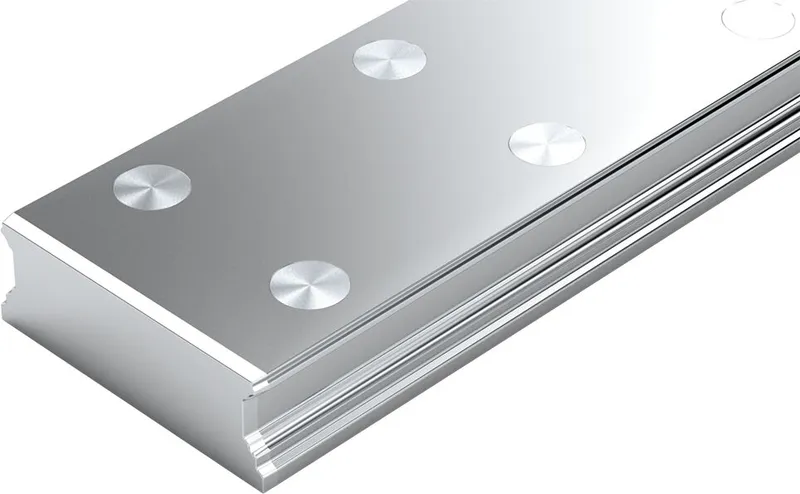

The ball guide rail is highly precise and characterized by the following product features:

Size 35

Format BNS: Width = wide, length = normal, height = standard

Guide rail made of carbon steel CS

Fastener MA: Bolting from above

Cover SK: Steel caps (must be ordered separately)

Accuracy class standard

Number of partial sections: 2

Rail in standard version

Area of application: For very harsh environments

More resistant to mechanical influences (e.g. shocks)

Double-rowed for mounting from above

Steel caps (not included in scope of delivery, order separately).

Maximum rigidity in all load directions

Very high torque load capacity

No extra space needed at rail ends

Observe the instruction for mounting! Please request the “Mounting instructions for ball rail systems.”

Specifications

Version	Ball rail system
Nominal size [mm]	35/90
Format	BNS - wide guide rail
Material (profiled rail systems)	Carbon steel
Accuracy class	N - Normal
Guide rail mounting	For bolting from above
Guide rail cover	With steel caps
Max. length Lmax [mm]	3836.0
Minimum length Lmin [mm]	112.0
Number of holes nB (profiled rail systems)	48
Number of sections	2-piece
Mass m (kg/m) [kg/m]	21
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100 °C admissible for short time. For operation at negative temperatures, please consult us.
Weight [kg]	0
Recommended rail length (formula)	L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Product information	Please configure the product to add it to the shopping cart.

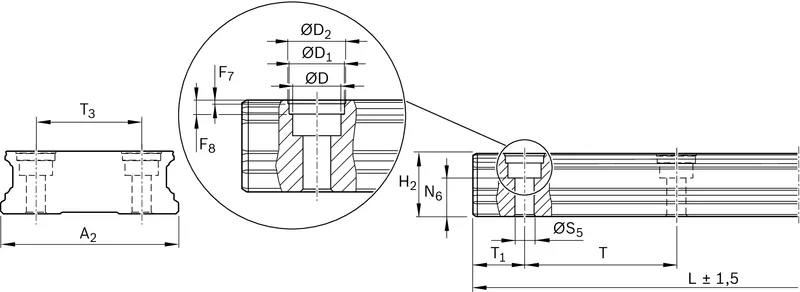

Pitch T guide rail [mm]	80
Dimension A2 (profiled rail systems) [mm]	90
Dimension D [mm]	15
Dimension D1 [mm]	17.55
Dimension D2 [mm]	18
Dimension F7 (profiled rail systems) [mm]	0.9
Dimension F8 (profiled rail systems) [mm]	3.6
Dimension H2 without cover strip (profiled rail systems) [mm]	31.85
Dimension N6 (profiled rail systems) [mm]	20.5
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension S5 (profiled rail system) [mm]	9
Dimension T [mm]	80
Dimension T1 max (profiled rail systems) [mm]	68
Dimension T1 min [mm]	12
Dimension T1 s (profiled rail systems) [mm]	38
Dimension T3 (profiled rail systems) [mm]	60
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended.
