Bosch Rexroth R167132410

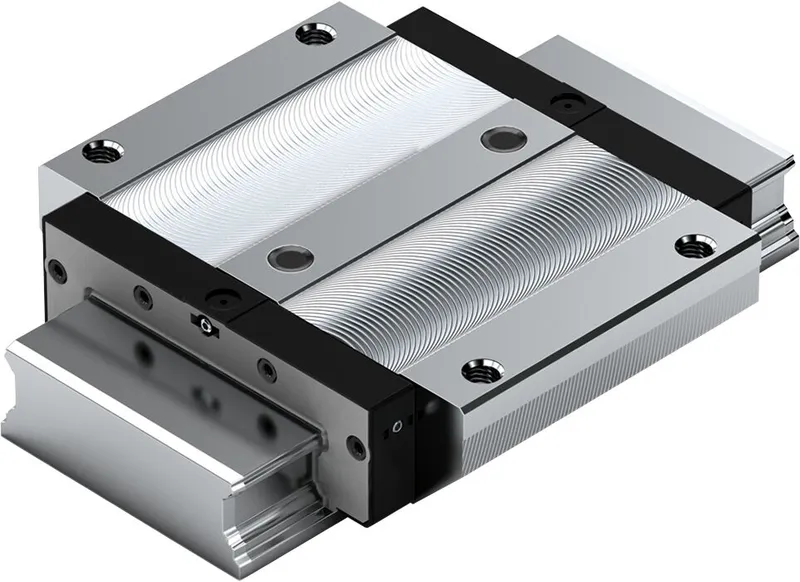

BALL RUNNER BLOCK CARBON STEEL KWC-035-BNS-C2-N-2

MPN: R167132410
Category: High-precision ball runner block BSHP

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R167132410?

The ball runner block is highly precise and characterized by the following product features:

Size 35

Format BNS: Width = wide, length = normal, height = standard

Runner block body made of unalloyed steel CS

Preload class C2: Medium preload

Accuracy class N: Standard

Without ball chain

Preserved

Without initial lubrication

Without attachment element, left (front reference edge)

Without attachment element, right (front reference edge)

45° angular lube nipples loosely attached.

Runner block body in standard version

Overall length of the runner block = 142.0 mm

Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

Specifications

Nominal size [mm]	35/90
Format	BNS - wide, normal, standard height
Model	Wide ball runner block
Material (profiled rail systems)	Carbon steel
Preload class	C2 - Medium preload
Accuracy class	N - Normal
Seal	SS - Standard seal
Ball chain	Without ball chain (standard)
Self-aligning for compensation of misalignments	Without self-alignment
Width of runner block [mm]	162.0
Length of runner block [mm]	142.0
Height of runner block [mm]	42.5
Height runner block with guide rail [mm]	50.0
Lubrication	Preserved
Maximum acceleration rate amax [m/s²]	250.0
Note: Max. acceleration amax	If F<sub>comb</sub>◡> 2.8 • F<sub>pr</sub> : a<sub>max</sub> = 50 m/s<sup>2</sup>
Maximum permissible linear speed vmax [m/s]	3.0
Note: permissible ambient temperature (min. ... max.)	100 °C admissible for short time. For operation at negative temperatures, please consult us.
Friction coefficient μ	0.002 ... 0.003
Note: friction coefficient μ	Without friction of seal
Weight [kg]	3.85
Dynamic load capacity C50 [N]	89100.0
Note: dynamic load capacity C50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Dynamic load capacity C100 [N]	70700.0
Note: dynamic load capacity C100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
Static load capacity C0 [N]	126000.0
Dynamic torsional moment load capacity Mt50 [Nm]	4410.0
Note: Dynamic torsional moment load capacity Mt50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Dynamic torsional moment load capacity Mt100 [Nm]	3500.0
Note: Dynamic torsional moment load capacity Mt100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
Static torsional moment load capacity Mt0 [Nm]	6240
Dynamic longitudinal moment load capacity ML50 [Nm]	1850.0
Note: Dynamic longitudinal moment load capacity ML50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Dynamic longitudinal moment load capacity ML100 [Nm]	1470.0
Note: Dynamic longitudinal moment load capacity ML100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
Static longitudinal moment load capacity ML0 [Nm]	2620
Pitch T guide rail [mm]	80
Dimension A (profiled rail systems) [mm]	162
Dimension B (profiled rail systems) [mm]	142
Dimension B1 [mm]	113.6
Dimension H [mm]	50.0
Dimension T1 min [mm]	12
