Bosch Rexroth R167031010
SCRAPER PLATE 35/90 &
- MPN
- R167031010
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R167031010?

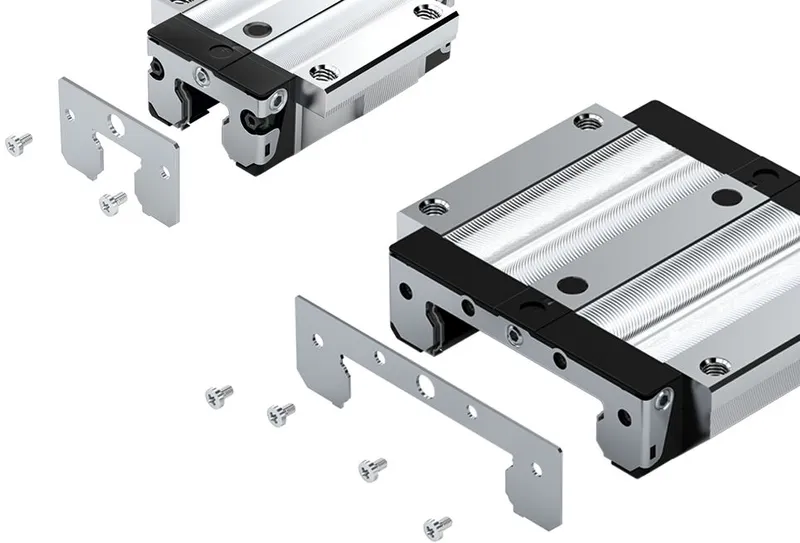

Cover plate wiper for ball rail systems
Size = 35/90
Material: Corrosion-resistant steel as per DIN EN 10088
Design: bright
Precision design with a maximum gap dimension of 0.1 to 0.3 mm
Specifications
Specifications
| Accessories for | Runner block |
| Nominal size [mm] | 35/90 |
| Type | without cover strip |
| Weight [kg] | 0.04 |
| Size footnote | Wide ball rail system |

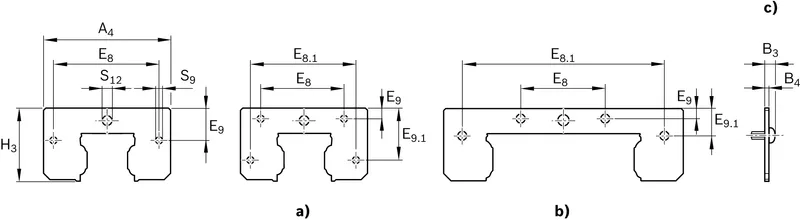

| Dimension A4 (profiled rail system) [mm] | 129 |
| Dimension B3 [mm] | 3.4 |
| Dimension B4 [mm] | 1 |
| Dimension diameter S12 (profiled rail systems) [mm] | 7 |
| Dimension diameter S9 (profiled rail systems) [mm] | 4 |
| Dimension E8 (profiled rail systems) [mm] | 79 |
| Dimension E8.1 (profiled rail systems) [mm] | 116 |
| Dimension E9 (profiled rail systems) [mm] | 5.6 |
| Dimension E9.1 (profiled rail systems) [mm] | 28.7 |
| Dimension H3 [mm] | 40.8 |
