Bosch Rexroth R166329410

What is the Bosch Rexroth R166329410?

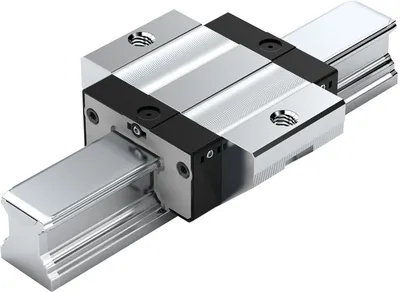

The ball runner block is highly precise and characterized by the following product features:

Size 25

Format FKN: Width = flange, length = short, height = low

Runner block body made of unalloyed steel CS

Preload class C0: Preload-free

Accuracy class N: Standard

Without ball chain

Preserved

Without initial lubrication

Without attachment element, left (front reference edge)

Without attachment element, right (front reference edge)

45° angular lube nipples loosely attached.

Runner block body in standard version

Overall length of the runner block = 62.0 mm

Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

Area of application: For cases of restricted space avialability in the upward and longitudinal direction

Maximum precision

Patented entry zone increases the travel accuracy up to a factor of six

Significantly reduced frictional oscillations and low friction force level, particularly under external load

Long-term lubrication is possible over several years

Lube fittings with metal threads on all sides

End-face fastening thread for all attachments

Can be used on all SNS/SNO ball guide rails

Integrated all-round sealing

Preload classes: C0 (without preload, clearance) and C1 (moderate preload)

Optional integrated, inductive and wear-free measuring system

Optimized entry-zone geometry and high number of balls minimize variation in elastic deflection
