Bosch Rexroth R166229371

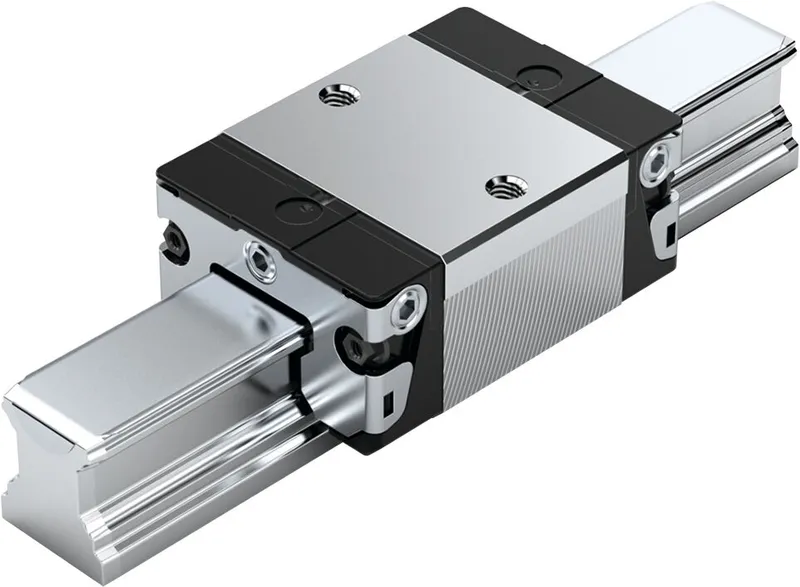

BALL RUNNER BLOCK SUPER RESIST CR KWD-025-SKS-C0-H-1
- MPN
- R166229371
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R166229371?
The self-adjusting ball runner block compensates for alignment errors of up to 10’. It is corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features:
Size 25
Format SKS: Width = slimline, length = short, height = standard
Runner block body made of unalloyed steel CS, matte-silver, hard chrome plated
Preload class C0: Preload-free
Accuracy class H: High
Without ball chain
With initial lubrication and preservation
Roller bearing grease Dynalub 510
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
Straight lube connection loosely attached.
Runner block body in standard version
Overall length of the runner block = 67.0 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Area of application: For compensating large tolerances in the adjoining structure
Low noise level and outstanding travel behavior
Excellent dynamic characteristics
Limitless interchangeability as all ball guide rail systems can be combined at will with all ball runner block versions within each accuracy class.
Steel ball runner block body with corrosion-resistant coating, matt silver finish, hard chrome plated
Compensates own misalignments (for deviations up to 10' in 2 levels)
The same high load ratings in all four main directions of loading
Lube fittings with metal threads on all sides
Smooth operation due to optimal return and ball pick-up and entry design
Preload classes: C0 (without preload, clearance) and C1 (moderate preload)
Enables greater parallelism and height offsets of mounting bases
Extra-compact design
Specifications
Specifications
| Version | Ball rail system |
| Nominal size [mm] | 25 |
| Format | SKS - slimline, short, standard height |
| Model | Super ball runner block |
| Material (profiled rail systems) | Hard chrome plated |
| Preload class | C0 - Without preload (clearance) |
| Accuracy class | H - Highly accurate |
| Seal | LS - Low-friction seal |
| Ball chain | Without ball chain (standard) |
| Self-aligning for compensation of misalignments | With self-alignment |

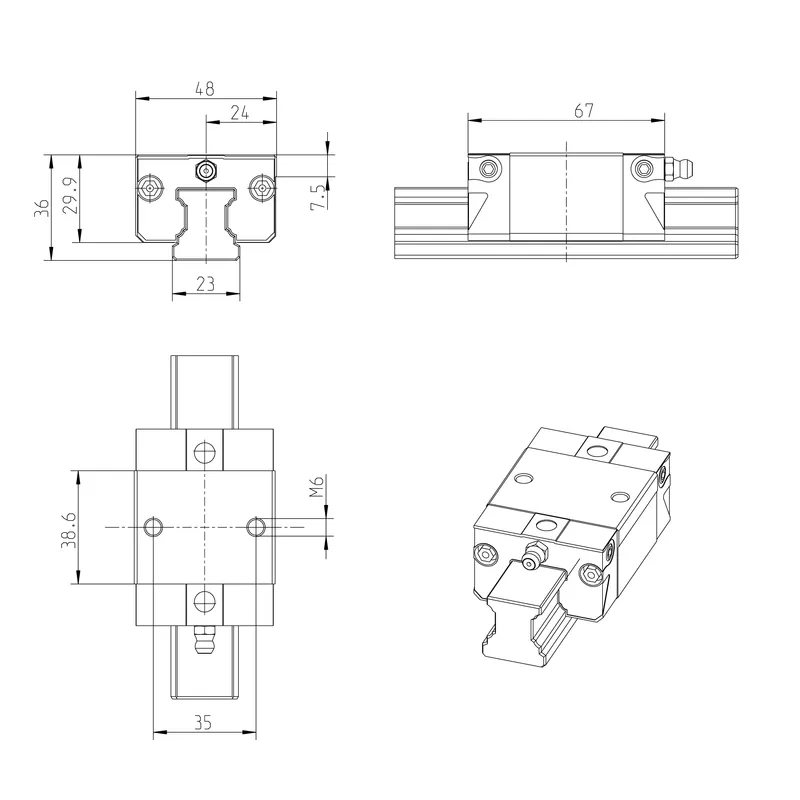

| Width of runner block [mm] | 48.0 |
| Length of runner block [mm] | 67.0 |
| Height of runner block [mm] | 29.9 |
| Height runner block with guide rail [mm] | 36.0 |
| Lubrication | Pre-lubricated, preserved |
| Maximum dynamic load Fmax [N] | 4400 |
| Maximum acceleration rate amax [m/s²] | 500.0 |
| Note: Max. acceleration amax | If F<sub>comb</sub>◡> 2.8 • F<sub>pr</sub> : a<sub>max</sub> = 50 m/s<sup>2</sup> |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Maximum permissible torsional moment Mt max [Nm] | 65 |
| Note: seal | No preferred variants/combinations (partially longer delivery times) |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
| Friction coefficient μ | 0.002 ... 0.003 |
| Note: friction coefficient μ | Without friction of seal |
| Weight [kg] | 0.35 |
| Dynamic load capacity C50 [N] | 14400.0 |
| Note: dynamic load capacity C50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic load capacity C100 [N] | 11400.0 |
| Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Dynamic torsional moment load capacity Mt50 [Nm] | 210.0 |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic torsional moment load capacity Mt100 [Nm] | 170.0 |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Pitch T guide rail [mm] | 60 |

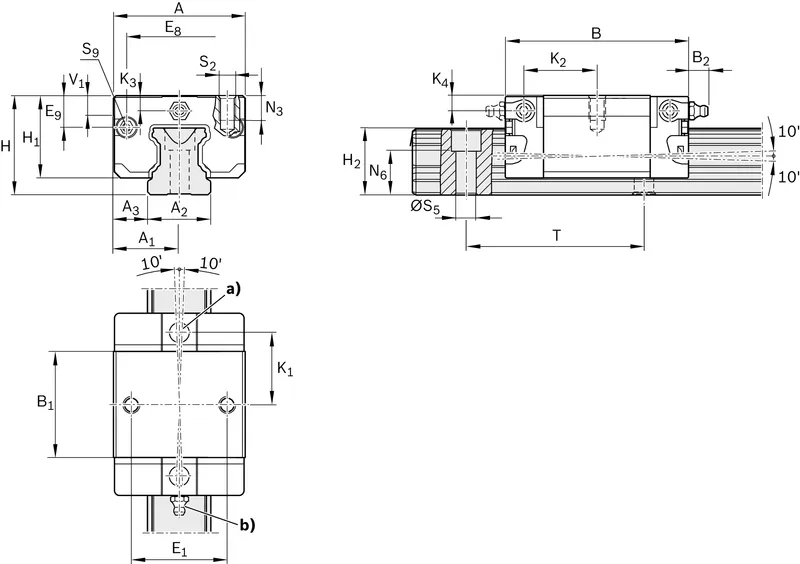

| Dimension A (profiled rail systems) [mm] | 48 |
| Dimension A1 (profiled rail systems) [mm] | 24 |
| Dimension A2 (profiled rail systems) [mm] | 23 |
| Dimension A3 (profiled rail systems) [mm] | 12.5 |
| Dimension B (profiled rail systems) [mm] | 67 |
| Dimension B tolerance (profiled rail systems) [mm] | +0.5 |
| Dimension B1 [mm] | 38.6 |
| Dimension E1 [mm] | 35 |
| Dimension E8 (profiled rail systems) [mm] | 38.3 |
| Dimension E9 (profiled rail systems) [mm] | 11.5 |
| Dimension H [mm] | 36.0 |
| Dimension H1 (profiled rail systems) [mm] | 29.9 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 24.45 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 24.25 |
| Dimension K1 (profiled rail systems) [mm] | 25.35 |
| Dimension K2 (profiled rail systems) [mm] | 26.5 |
| Dimension K3 (profiled rail systems) [mm] | 5.5 |
| Dimension K4 (profiled rail systems) [mm] | 5.5 |
| Dimension N3 (profiled rail systems) [mm] | 9 |
| Dimension N6 (profiled rail systems) [mm] | 15.2 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S2 (profiled rail systems) | M6 |
| Dimension S5 (profiled rail system) [mm] | 7 |
| Dimension S9 | M3x5 mm |
| Dimension S9 thread diameter (profiled rail systems) | M3 |
| Dimension S9 lead [mm] | 5 |
| Dimension T1 min [mm] | 13 |
| Dimension V1 [mm] | 7.5 |
