Bosch Rexroth R165369410

BALL RUNNER BLOCK CARBON STEEL KWC-065-FLS-C0-N-2

MPN: R165369410
Category: High-precision ball runner block BSHP

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

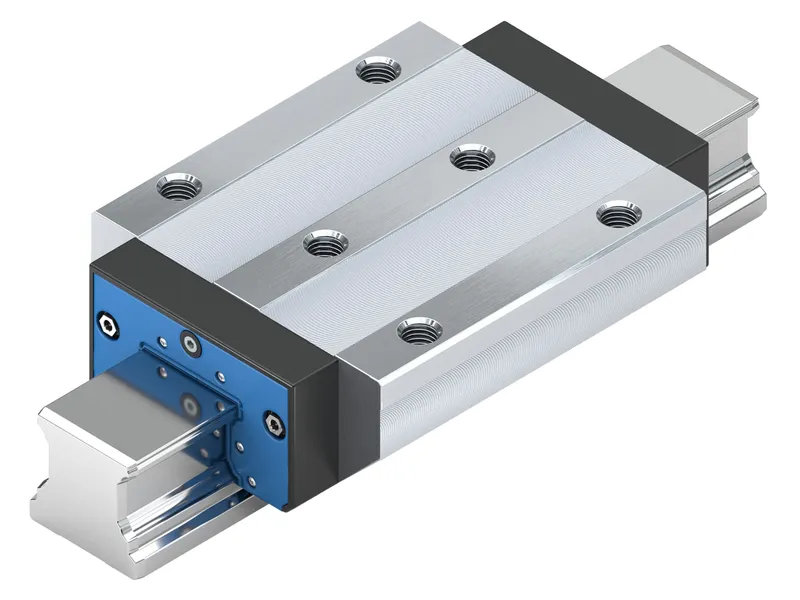

What is the Bosch Rexroth R165369410?

The ball runner block is highly precise and characterized by the following product features:

Size 65

Format FLS: Width = flange, length = long, height = standard

Runner block body made of unalloyed steel CS

Preload class C0: Preload-free

Accuracy class N: Standard

Without ball chain

Preserved

Without initial lubrication

Without attachment element, left (front reference edge)

Without attachment element, right (front reference edge)

45° angular lube nipples loosely attached.

Runner block body in standard version

Overall length of the runner block = 243.0 mm

Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

Area of application: For the most demanding rigidity requirements

Heavy-duty Ball Runner Block for heavy machine construction with extremely high load-bearing capacity

Maximum rigidity in all load directions

Improved rigidity under lift-off and side loading conditions due to two additional mounting screw holes at the center of the ball runner block

High torque load capacity

Attachments on the ball runner block can be mounted from above and below

Minimum lubrication quantities thanks to innovative channel design

Smooth, quiet running thanks to optimally designed ball return and guideway

Optimized entry-zone geometry and high number of balls minimize variation in elastic deflection

Different preload classes

End-face fastening thread for all attachments

Can be used on all SNS ball guide rails

Limitless interchangeability as all ball guide rail versions can be combined at will with all ball runner block versions

Specifications

Version	Ball rail system
Nominal size [mm]	65
Format	FLS - flange, long, standard height
Model	Heavy-duty ball runner block
Material (profiled rail systems)	Carbon steel
Preload class	C0 - Without preload (clearance)
Accuracy class	N - Normal
Seal	SS - Standard seal
Ball chain	Without ball chain (standard)
Self-aligning for compensation of misalignments	Without self-alignment
Width of runner block [mm]	170.0
Length of runner block [mm]	243.0
Height of runner block [mm]	76.0
Height runner block with guide rail [mm]	90.0
Lubrication	Preserved
Maximum acceleration rate amax [m/s²]	250.0
Note: Max. acceleration amax	If F<sub>comb</sub>◡> 2.8 • F<sub>pr</sub> : a<sub>max</sub> = 50 m/s<sup>2</sup>
Maximum permissible linear speed vmax [m/s]	3.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100 °C admissible for short time. For operation at negative temperatures, please consult us.
Friction coefficient μ	0.002 ... 0.003
Note: friction coefficient μ	Without friction of seal
Weight [kg]	14.72
Dynamic load capacity C50 [N]	281000.0
Note: dynamic load capacity C50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Dynamic load capacity C100 [N]	223000.0
Note: dynamic load capacity C100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
Static load capacity C0 [N]	404000.0
Dynamic torsional moment load capacity Mt50 [Nm]	11100.0
Note: Dynamic torsional moment load capacity Mt50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Dynamic torsional moment load capacity Mt100 [Nm]	8810.0
Note: Dynamic torsional moment load capacity Mt100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
Static torsional moment load capacity Mt0 [Nm]	16000
Dynamic longitudinal moment load capacity ML50 [Nm]	10300.0
Note: Dynamic longitudinal moment load capacity ML50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Dynamic longitudinal moment load capacity ML100 [Nm]	8160.0
Note: Dynamic longitudinal moment load capacity ML100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
Static longitudinal moment load capacity ML0 [Nm]	14800
Pitch T guide rail [mm]	150

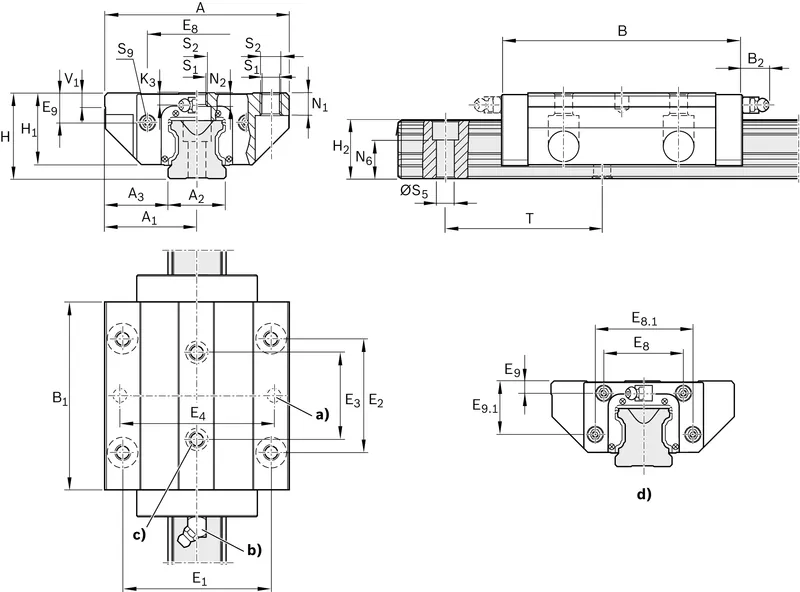

Dimension A (profiled rail systems) [mm]	170
Dimension A1 (profiled rail systems) [mm]	85
Dimension A2 (profiled rail systems) [mm]	63
Dimension A3 (profiled rail systems) [mm]	53.5
Dimension B (profiled rail systems) [mm]	243
Dimension B tolerance (profiled rail systems) [mm]	+0.5
Dimension B1 [mm]	194.6
Dimension E1 [mm]	142
Dimension E2 (profiled rail systems) [mm]	110
Dimension E3 (profiled rail systems) [mm]	82
Dimension E8 (profiled rail systems) [mm]	76
Dimension E8.1 (profiled rail systems) [mm]	100
Dimension E9 (profiled rail systems) [mm]	11
Dimension E9.1 (profiled rail systems) [mm]	53.5
Dimension H [mm]	90.0
Dimension H1 (profiled rail systems) [mm]	76
Dimension H2 with cover strip (profiled rail systems) [mm]	60.15
Dimension H2 without cover strip (profiled rail systems) [mm]	59.85
Dimension K3 (profiled rail systems) [mm]	16
Dimension N1 (profiled rail systems) [mm]	23
Dimension N2 (profiled rail systems) [mm]	14
Dimension N6 (profiled rail systems) [mm]	38.5
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension S1 (profiled rail systems) [mm]	14.6
Dimension S2 (profiled rail systems)	M16
Dimension S5 (profiled rail system) [mm]	18
Dimension S9	M4x7 mm
Dimension S9 thread diameter (profiled rail systems)	M4
Dimension S9 lead [mm]	7
Dimension T1 min [mm]	21
Dimension V1 [mm]	15
