Bosch Rexroth R165359360
BALL RUNNER BLOCK RESIST CR KWC-055-FLS-C0-H-2
- MPN
- R165359360
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

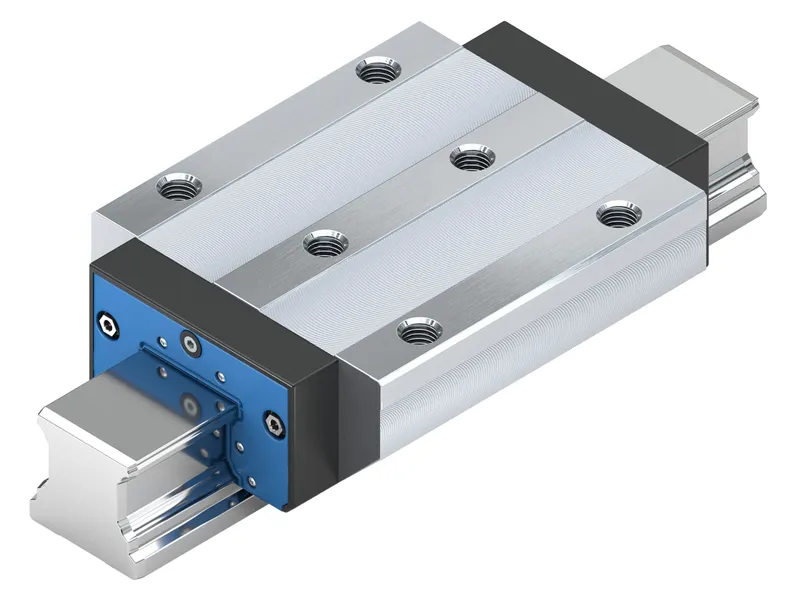

What is the Bosch Rexroth R165359360?
The ball runner block is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features:
Size 55
Format FLS: Width = flange, length = long, height = standard
Runner block body made of unalloyed steel CS, matte-silver, hard chrome plated
Preload class C0: Preload-free
Accuracy class H: High
Without ball chain
Preserved
Without initial lubrication
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
45° angular lube nipples loosely attached.
Runner block body in standard version
Overall length of the runner block = 199.0 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Area of application: For the most demanding rigidity requirements
Heavy-duty Ball Runner Block for heavy machine construction with extremely high load-bearing capacity
Maximum rigidity in all load directions
Steel ball runner block body with corrosion-resistant coating, matt silver finish, hard chrome plated
High torque load capacity
Attachments on the ball runner block can be mounted from above and below
Long-term lubrication is possible over several years
Improved rigidity under lift-off and side loading conditions due to two additional mounting screw holes at the center of the ball runner block
Optimized entry-zone geometry and high number of balls minimize variation in elastic deflection
Quiet, smooth running thanks to optimally designed ball and ball chain return and guideway
Ball runner block pre-lubricated at the factory
Specifications
Specifications
| Version | Ball rail system |
| Nominal size [mm] | 55 |
| Format | FLS - flange, long, standard height |
| Model | Heavy-duty ball runner block |
| Material (profiled rail systems) | Hard chrome plated |
| Preload class | C0 - Without preload (clearance) |
| Accuracy class | H - Highly accurate |
| Seal | SS - Standard seal |
| Ball chain | Without ball chain (standard) |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Width of runner block [mm] | 140.0 |
| Length of runner block [mm] | 199.0 |
| Height of runner block [mm] | 57.0 |
| Height runner block with guide rail [mm] | 70.0 |
| Lubrication | Preserved |
| Maximum acceleration rate amax [m/s²] | 250.0 |
| Note: Max. acceleration amax | If F<sub>comb</sub>◡> 2.8 • F<sub>pr</sub> : a<sub>max</sub> = 50 m/s<sup>2</sup> |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
| Friction coefficient μ | 0.002 ... 0.003 |
| Note: friction coefficient μ | Without friction of seal |
| Weight [kg] | 6.91 |
| Dynamic load capacity C50 [N] | 175000.0 |
| Note: dynamic load capacity C50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic load capacity C100 [N] | 139000.0 |
| Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static load capacity C0 [N] | 245000.0 |
| Dynamic torsional moment load capacity Mt50 [Nm] | 5560.0 |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic torsional moment load capacity Mt100 [Nm] | 4410.0 |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static torsional moment load capacity Mt0 [Nm] | 7780 |
| Dynamic longitudinal moment load capacity ML50 [Nm] | 4990.0 |
| Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic longitudinal moment load capacity ML100 [Nm] | 3960.0 |
| Note: Dynamic longitudinal moment load capacity ML100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static longitudinal moment load capacity ML0 [Nm] | 6990 |

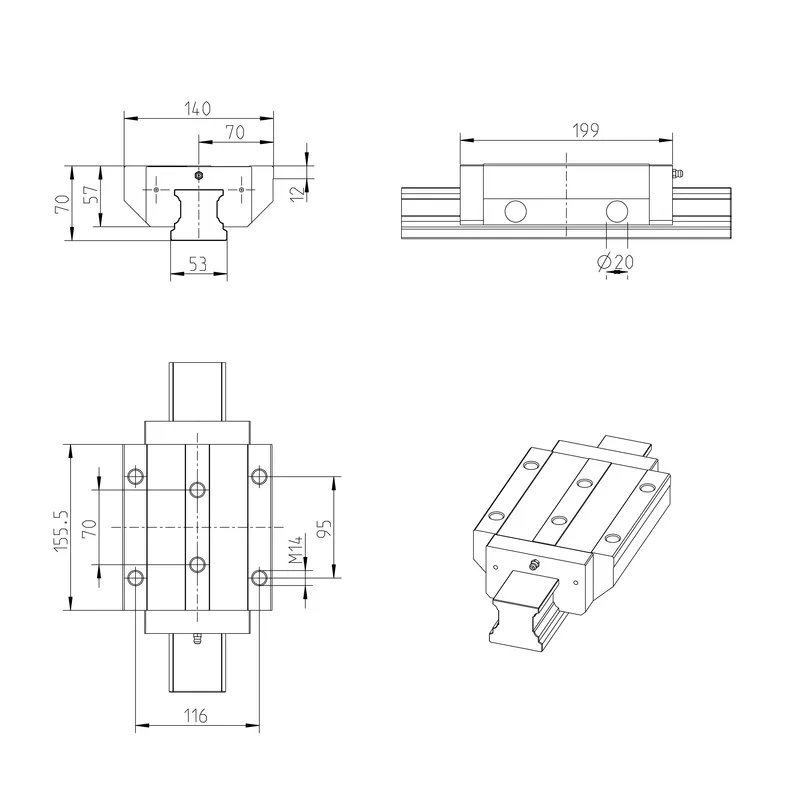

| Pitch T guide rail [mm] | 120 |
| Dimension A (profiled rail systems) [mm] | 140 |
| Dimension A1 (profiled rail systems) [mm] | 70 |
| Dimension A2 (profiled rail systems) [mm] | 53 |
| Dimension A3 (profiled rail systems) [mm] | 43.5 |
| Dimension B (profiled rail systems) [mm] | 199 |
| Dimension B tolerance (profiled rail systems) [mm] | +0.5 |
| Dimension B1 [mm] | 155.5 |
| Dimension E1 [mm] | 116 |
| Dimension E2 (profiled rail systems) [mm] | 95 |
| Dimension E3 (profiled rail systems) [mm] | 70 |
| Dimension E8 (profiled rail systems) [mm] | 80 |
| Dimension E9 (profiled rail systems) [mm] | 22.3 |
| Dimension H [mm] | 70.0 |
| Dimension H1 (profiled rail systems) [mm] | 57 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 48.15 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 47.85 |
| Dimension K3 (profiled rail systems) [mm] | 9 |
| Dimension N1 (profiled rail systems) [mm] | 18 |
| Dimension N2 (profiled rail systems) [mm] | 13.5 |
| Dimension N6 (profiled rail systems) [mm] | 29 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S1 (profiled rail systems) [mm] | 12.4 |
| Dimension S2 (profiled rail systems) | M14 |
| Dimension S5 (profiled rail system) [mm] | 16 |
| Dimension S9 | M5x8 mm |
| Dimension S9 thread diameter (profiled rail systems) | M5 |
| Dimension S9 lead [mm] | 8 |
| Dimension T1 min [mm] | 20 |
| Dimension V1 [mm] | 12 |
