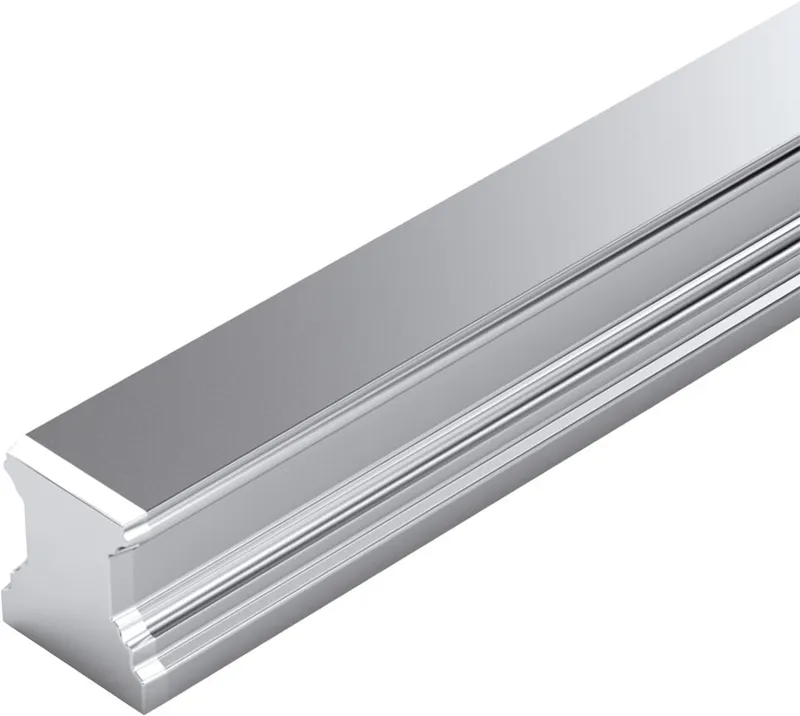

Bosch Rexroth R164760341

BALL GUIDE RAIL RESIST CR KSA-065-SNS-H-MB-00

MPN: R164760341
Category: High precision ball guide rail BSHP

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R164760341?

The ball guide rail is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features:

Size 65

Format SNS: Width = slimline, length = normal, height = standard

Guide rail made of carbon steel CS, matte-silver, hard chrome plated

Fastener MB: Bolting from below

Cover 00: Without cover

Accuracy class high

Number of partial sections: one-piece

Rail in standard version

Best sealing action of end seals

Greater side loads permitted

For mounting from below

Corrosion-resistant Resist CR coating: matte-silver, hard chrome plated

Observe the instruction for mounting! Please request the “Mounting instructions for ball rail systems.”

Maximum rigidity in all load directions

High torque load capacity

No extra space needed at rail ends

Specifications

Version	Ball rail system
Nominal size [mm]	65
Format	SNS - Standard guide rail
Material (profiled rail systems)	Hard chrome plated
Accuracy class	H - Highly accurate
Guide rail mounting	For bolting from below
Guide rail cover	Without cover strip
Max. length Lmax [mm]	3746.0
Minimum length Lmin [mm]	190.0
Number of holes nB (profiled rail systems)	25
Number of sections	1-piece
Mass m (kg/m) [kg/m]	22.4
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100 °C admissible for short time. For operation at negative temperatures, please consult us.
Weight [kg]	0
Recommended rail length (formula)	L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Product information	Please configure the product to add it to the shopping cart.
Pitch T guide rail [mm]	150
Dimension A2 (profiled rail systems) [mm]	63
Dimension H2 without cover strip (profiled rail systems) [mm]	59.85
Dimension N7 (profiled rail systems) [mm]	25
Dimension S7 thread diameter	M16
Dimension T [mm]	150
Dimension T1 max (profiled rail systems) [mm]	130
Dimension T1 min [mm]	20
Dimension T1 s (profiled rail systems) [mm]	73
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended.
