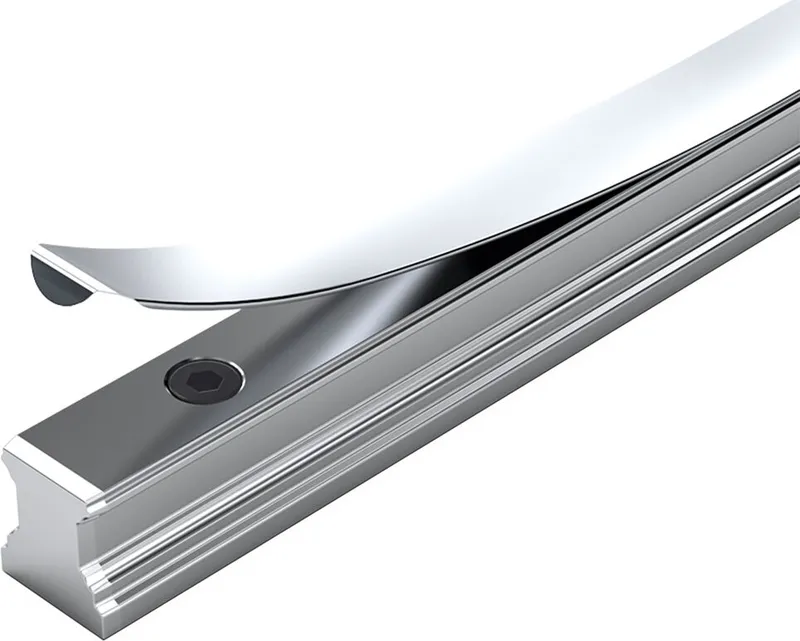

Bosch Rexroth R164543373
BALL GUIDE RAIL RESIST CR KSA-045-SNS-H-MA-BS
- MPN
- R164543373
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Bosch Rexroth R164543373?
The ball guide rail is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features:
Size 45
Format SNS: Width = slimline, length = normal, height = standard
Guide rail made of carbon steel CS, matte-silver, hard chrome plated
Fastener MA: Bolting from above
Cover BS: Cover strip and strip clamp
Accuracy class high
Number of partial sections: 3
Rail in standard version
Specifications
Specifications
| Version | Ball rail system |
| Nominal size [mm] | 45 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Hard chrome plated |
| Accuracy class | H - Highly accurate |
| Guide rail mounting | For bolting from above |
| Guide rail cover | With cover strip and strip clamps |
| Max. length Lmax [mm] | 3776.0 |
| Minimum length Lmin [mm] | 141.0 |
| Number of holes nB (profiled rail systems) | 36 |
| Number of sections | 3-piece |
| Mass m (kg/m) [kg/m] | 10.5 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for a short time. For operation at negative temperatures, please consult us. |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Product information | Rail length up to L<sub>max</sub> |
| Pitch T guide rail [mm] | 105 |
| Dimension A2 (profiled rail systems) [mm] | 45 |
| Dimension D [mm] | 20 |
| Dimension F4 with cover strip (profiled rail systems) [mm] | 12.5 |
| Dimension F5 (profiled rail systems) [mm] | 18 |
| Dimension F6 (profiled rail systems) [mm] | 2.2 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 40.15 |
| Footnote of H2 with cover strip (profiled rail systems) | With cover strip 0.3 mm |
| Dimension N6 (profiled rail systems) [mm] | 23.5 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S5 (profiled rail system) [mm] | 14 |
| Dimension T [mm] | 105 |
| Dimension T1 max (profiled rail systems) [mm] | 89 |
| Dimension T1 min [mm] | 18 |
| Dimension T1 s (profiled rail systems) [mm] | 50.5 |
| Footnote of dimension T1 s (profiled rail systems) | Preferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended. |
| Height of guide rail H2 with cover strip [mm] | 40.15 |
No matching specifications
R164543373: frequently asked questions
When can R164543373 be shipped?
R164543373 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R164543373 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R164543373 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R164543373, subject to availability and destination.
