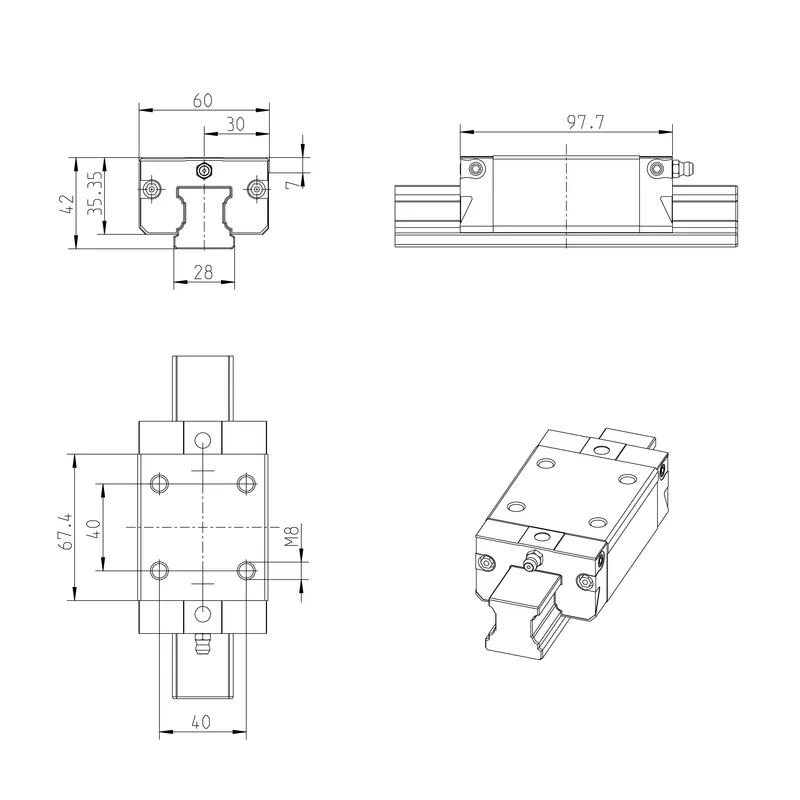

Bosch Rexroth R162972090

BALL RUNNER BLOCK CARBON STEEL KWD-030-SNS-C1-N-1 S

MPN: R162972090
Category: High-precision ball runner block BSHP

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R162972090?

The ball runner block is highly precise and characterized by the following product features:

Size 30

Format SNS: Width = slimline, length = normal, height = standard

Runner block body made of unalloyed steel CS

Preload class C1: Low preload

Accuracy class N: Standard

Without ball chain

With initial lubrication and preservation

Roller bearing grease Dynalub 510

Attachment element, left (front reference edge): standard front seal

Attachment element, right (front stop edge): Standard front seal

No lube connection attached.

Runner block body in standard version

Overall length of the runner block = 109.1 mm

Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

Specifications

Nominal size [mm]	30
Format	SNS - slimline, normal, standard height
Model	High-precision ball runner block
Material (profiled rail systems)	Carbon steel
Preload class	C2 - Medium preload
Accuracy class	N - Normal
Seal	SS - Standard seal
Ball chain	Without ball chain (standard)
Self-aligning for compensation of misalignments	Without self-alignment
Lubrication	Pre-lubricated, preserved
Note: Max. acceleration amax	If F<sub>comb</sub>◡> 2.8 • F<sub>pr</sub> : a<sub>max</sub> = 50 m/s<sup>2</sup>
Maximum permissible linear speed vmax [m/s]	5.0
Note: permissible ambient temperature (min. ... max.)	100 °C admissible for short time. For operation at negative temperatures, please consult us.
Note: friction coefficient μ	Without friction of seal
Weight [kg]	0.95
Dynamic load capacity C50 [N]	11200.0
Note: dynamic load capacity C50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Dynamic load capacity C100 [N]	8850.0
Note: dynamic load capacity C100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
Dynamic torsional moment load capacity Mt50 [Nm]	110.0
Note: Dynamic torsional moment load capacity Mt50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Dynamic torsional moment load capacity Mt100 [Nm]	85.0
Note: Dynamic torsional moment load capacity Mt100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
Dynamic longitudinal moment load capacity ML50 [Nm]	78.0
Note: Dynamic longitudinal moment load capacity ML50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Dynamic longitudinal moment load capacity ML100 [Nm]	62.0
Note: Dynamic longitudinal moment load capacity ML100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
