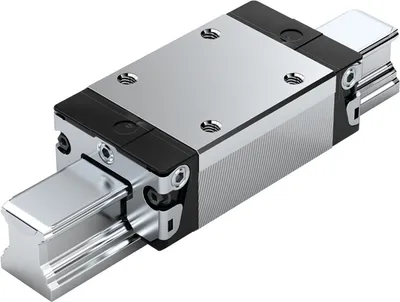

BALL RUNNER BLOCK CARBON STEEL KWD-020-SNS-C2-N-1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | High-precision ball runner block BSHP |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R16228242Z be shipped?
R16228242Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R16228242Z in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R16228242Z and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R16228242Z, subject to availability and destination.
The ball runner block is highly precise and characterized by the following product features:
Size 20
Format SNS: Width = slimline, length = normal, height = standard
Runner block body made of unalloyed steel CS
Preload class C2: Medium preload
Accuracy class N: Standard
Without ball chain
With initial lubrication and preservation
Roller bearing grease Dynalub 510
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
Straight lube connection loosely attached.
Runner block body in standard version
Overall length of the runner block = 75.0 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Specifications
Specifications
| Nominal size [mm] | 20 |
| Format | SNS - slimline, normal, standard height |
| Model | High-precision ball runner block |
| Material (profiled rail systems) | Carbon steel |
| Preload class | C2 - Medium preload |
| Accuracy class | N - Normal |
| Seal | DS - Double-lip seal |
| Ball chain | Without ball chain (standard) |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Width of runner block [mm] | 44.0 |
| Length of runner block [mm] | 75.0 |
| Height of runner block [mm] | 25.35 |
| Height runner block with guide rail [mm] | 30.0 |
| Lubrication | Pre-lubricated, preserved |
| Maximum acceleration rate amax [m/s²] | 500.0 |
| Note: Max. acceleration amax | If F<sub>comb</sub>◡> 2.8 • F<sub>pr</sub> : a<sub>max</sub> = 50 m/s<sup>2</sup> |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Note: permissible ambient temperature (min. ... max.) | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
| Friction coefficient μ | 0.002 ... 0.003 |
| Note: friction coefficient μ | Without friction of seal |
| Weight [kg] | 0.35 |
| Dynamic load capacity C50 [N] | 29500.0 |
| Note: dynamic load capacity C50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic load capacity C100 [N] | 23400.0 |
| Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static load capacity C0 [N] | 29800.0 |
| Dynamic torsional moment load capacity Mt50 [Nm] | 380.0 |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic torsional moment load capacity Mt100 [Nm] | 300.0 |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static torsional moment load capacity Mt0 [Nm] | 380 |
| Dynamic longitudinal moment load capacity ML50 [Nm] | 250.0 |
| Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic longitudinal moment load capacity ML100 [Nm] | 200.0 |
| Note: Dynamic longitudinal moment load capacity ML100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static longitudinal moment load capacity ML0 [Nm] | 260 |
| Pitch T guide rail [mm] | 60 |
| Dimension A (profiled rail systems) [mm] | 44 |
| Dimension B (profiled rail systems) [mm] | 75 |
| Dimension B1 [mm] | 49.6 |
| Dimension H [mm] | 30.0 |
| Dimension T1 min [mm] | 13 |
