Bosch Rexroth R162252390

BALL RUNNER BLOCK HIGH-SPEED CARB. STEEL KWC-055-SNS-C2-H-2

MPN: R162252390
Category: High-precision ball runner block BSHP

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R162252390?

The ball runner block is highly precise and enables very high travel speeds. Additionally, it is characterized by the following product features:

Size 55

Format SNS: Width = slimline, length = normal, height = standard

Runner block body made of unalloyed steel CS

Preload class C2: Medium preload

Accuracy class H: High

Without ball chain

Preserved

Without initial lubrication

Without attachment element, left (front reference edge)

Without attachment element, right (front reference edge)

45° angular lube nipples loosely attached.

Runner block body in standard version

Overall length of the runner block = 159.0 mm

Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

Available in eight common sizes

Area of application: For maximum speeds

Maximum system rigidity due to preloaded O-arrangement

Electrically insulating due to use of ceramic balls

High speed thanks to the low weight of ceramic balls

Attachments on the ball runner block can be mounted from above

Lube fittings with metal threads on all sides

Can be used on all SNS/SNO ball guide rails

The same high load ratings in all four main directions of loading

Long-term lubrication is possible over several years

Minimum quantity lubrication with integrated reservoir for oil lubrication

Smooth, quiet running thanks to optimally designed ball return and guideway

End-face fastening thread for all attachments

Ball runner block pre-lubricated at the factory

Specifications

Version	Ball rail system
Nominal size [mm]	55
Format	SNS - slimline, normal, standard height
Model	High-speed ball runner block
Material (profiled rail systems)	Carbon steel
Preload class	C2 - Medium preload
Accuracy class	H - Highly accurate
Seal	SS - Standard seal
Ball chain	Without ball chain (standard)
Self-aligning for compensation of misalignments	Without self-alignment
Width of runner block [mm]	100.0
Length of runner block [mm]	159.0
Height of runner block [mm]	57.0
Height runner block with guide rail [mm]	70.0
Lubrication	Preserved
Maximum acceleration rate amax [m/s²]	250.0
Note: Max. acceleration amax	If F<sub>comb</sub>◡> 2.8 • F<sub>pr</sub> : a<sub>max</sub> = 50 m/s<sup>2</sup>
Maximum permissible linear speed vmax [m/s]	7.5
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100 °C admissible for short time. For operation at negative temperatures, please consult us.
Friction coefficient μ	0.002 ... 0.003
Note: friction coefficient μ	Without friction of seal
Weight [kg]	3.55
Dynamic load capacity C50 [N]	96100.0
Note: dynamic load capacity C50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Dynamic load capacity C100 [N]	76300.0
Note: dynamic load capacity C100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
Static load capacity C0 [N]	122000.0
Dynamic torsional moment load capacity Mt50 [Nm]	3050.0
Note: Dynamic torsional moment load capacity Mt50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Dynamic torsional moment load capacity Mt100 [Nm]	2420.0
Note: Dynamic torsional moment load capacity Mt100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
Static torsional moment load capacity Mt0 [Nm]	3880
Dynamic longitudinal moment load capacity ML50 [Nm]	2040.0
Note: Dynamic longitudinal moment load capacity ML50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Dynamic longitudinal moment load capacity ML100 [Nm]	1620.0
Note: Dynamic longitudinal moment load capacity ML100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
Static longitudinal moment load capacity ML0 [Nm]	2580

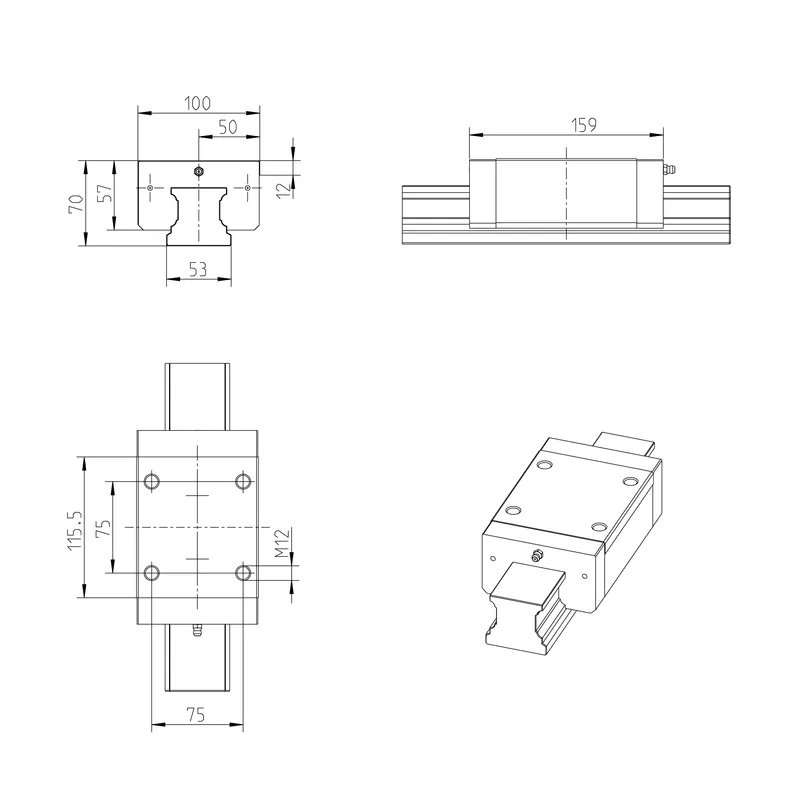

Dimension A (profiled rail systems) [mm]	100
Dimension A1 (profiled rail systems) [mm]	50
Dimension A2 (profiled rail systems) [mm]	53
Dimension A3 (profiled rail systems) [mm]	23.5
Dimension B (profiled rail systems) [mm]	159
Dimension B tolerance (profiled rail systems) [mm]	+0.5
Dimension B1 [mm]	115.5
Dimension E1 [mm]	75
Dimension E2 (profiled rail systems) [mm]	75
Dimension E8 (profiled rail systems) [mm]	80
Dimension E9 (profiled rail systems) [mm]	22.3
Dimension H [mm]	70.0
Dimension H1 (profiled rail systems) [mm]	57
Dimension H2 with cover strip (profiled rail systems) [mm]	48.15
Dimension H2 without cover strip (profiled rail systems) [mm]	47.85
Dimension K3 (profiled rail systems) [mm]	9
Dimension N3 (profiled rail systems) [mm]	19
Dimension N6 (profiled rail systems) [mm]	29
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension S2 (profiled rail systems)	M12
Dimension S5 (profiled rail system) [mm]	16
Dimension S9	M5x8 mm
Dimension S9 thread diameter (profiled rail systems)	M5
Dimension S9 lead [mm]	8
Dimension T [mm]	120
Dimension T1 min [mm]	20
Dimension V1 [mm]	12
