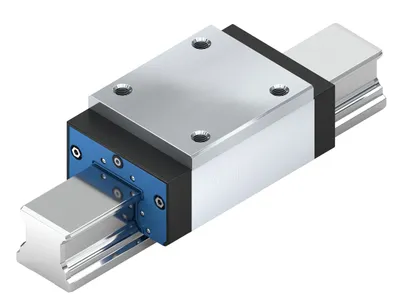

BALL RUNNER BLOCK CARBON STEEL KWC-055-SNH-C1-P-2

The ball runner block is highly precise and characterized by the following product features:

Size 55

Format SNH: Width = slimline, length = normal, height = high

Runner block body made of unalloyed steel CS

Preload class C1: Low preload

Accuracy class P: Precision

Without ball chain

Preserved

Without initial lubrication

Without attachment element, left (front reference edge)

Without attachment element, right (front reference edge)

45° angular lube nipples loosely attached.

Runner block body in standard version

Overall length of the runner block = 159.0 mm

Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

Area of application: For restricted space in the transverse direction and high rigidity requirements

Heavy-duty Ball Runner Block for heavy machine construction with extremely high load-bearing capacity

Higher rigidity than SNS

High torque load capacity

The same high load ratings in all four main directions of loading

Low noise level and outstanding travel behavior

Long-term lubrication is possible over several years

Different preload classes

Can be used on all SNS ball guide rails

High rigidity in all load directions – permits applications with just one runner block per rail

End-face fastening thread for all attachments
